USB BIOS Flashback: The First-Time Builder's Complete Guide

What Is USB BIOS Flashback?

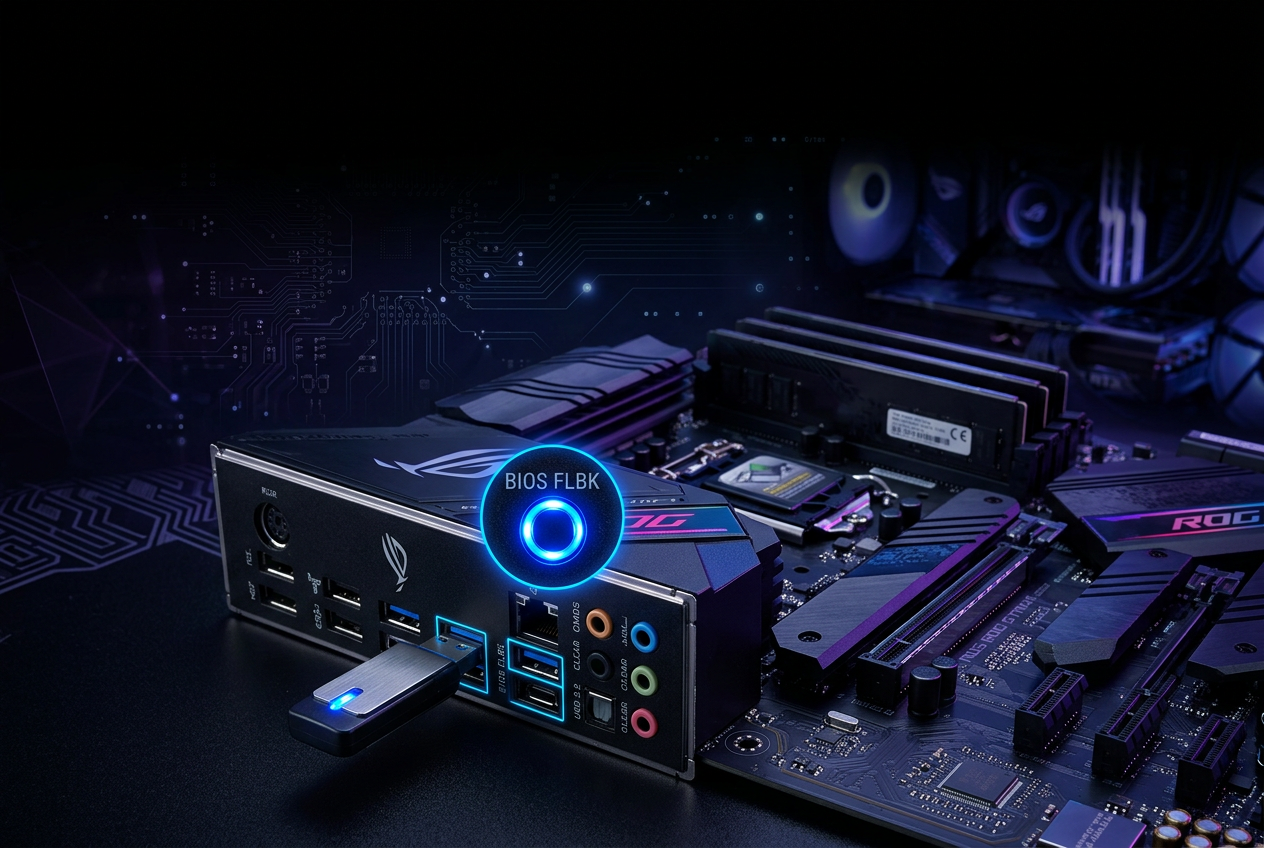

USB BIOS Flashback is a motherboard feature that lets you update (flash) the BIOS firmware using nothing but a USB drive and a power supply — no CPU, RAM, or graphics card required. You copy the correct BIOS file to a USB stick, plug it into a specific USB port on the motherboard's rear I/O panel, hold the dedicated Flashback button for a few seconds, and the board updates itself.

This is especially useful when a new processor generation launches and existing motherboard stock ships with an older BIOS that doesn't yet support it. Without Flashback, you'd need a compatible older CPU just to boot into BIOS and update — Flashback removes that dependency entirely.

Who Actually Needs It?

USB BIOS Flashback matters most in these situations:

• You're buying a current-generation CPU that's newer than the board's factory BIOS version.
• You're pairing a recent AMD Ryzen or Intel Core processor with a board that hasn't been updated since leaving the factory.
• You want to build without borrowing or purchasing a secondary "boot" CPU.
• You're upgrading an existing system to a newer CPU and the current BIOS predates it.

If you're buying a pre-matched CPU and motherboard combination, the retailer will typically confirm whether a BIOS update is needed before dispatch. Always ask.

How It Varies by Motherboard Model

USB BIOS Flashback is not a universal feature. Implementation differs significantly between manufacturers, chipsets, and even board tiers from the same brand:

Availability by Brand

• ASUS — Called "USB BIOS Flashback". Available on most ROG, ROG STRIX, ProArt, and TUF Gaming boards; often absent on PRIME entry-level models.
• MSI — Called "Flash BIOS Button". Found on MPG, MEG, and select MAG boards; not always present on PRO budget lines.
• Gigabyte — Called "Q-Flash Plus". Available on AORUS and some GAMING X boards; less common on UD/DS3H entries.
• ASRock — Called "BIOS Flashback". Present on Taichi, Steel Legend, and Phantom Gaming ranges; check specs on entry boards.

What Varies Between Boards

• Dedicated USB port: Flashback only works on one specific USB port — usually marked on the I/O shield or in the manual. Using the wrong port will not trigger the update.
• Button location: Some boards have the button on the rear I/O panel; others place it near the 24-pin ATX connector on the board itself.
• File naming conventions: Each manufacturer requires the BIOS file to be renamed in a specific way (e.g., ASUS.CAP for ASUS) and placed in the root of the USB drive.
• USB drive format: FAT32 is almost universally required; NTFS or exFAT will typically cause the process to fail silently.
• USB drive capacity: Some boards have reported issues with drives larger than 32GB — a smaller, basic USB stick is often more reliable.

Always download the BIOS file directly from your motherboard manufacturer's official support page for your exact board model and revision. Using a file intended for a different revision can brick the board.

When You Still Need a Compatible Processor

USB BIOS Flashback is not available on every board, and even where it is, there are edge cases where a compatible CPU is still required:

• The board lacks Flashback entirely. Many mid-range and budget boards — especially B-series and H-series chipsets — do not include the feature. Check the spec sheet before purchase.
• The board's current BIOS is too old to recognise the Flashback process itself. This is rare but documented on some early Z790 and X670 boards; a factory flash via a supported CPU is needed first.
• The BIOS update process fails repeatedly. If the LED blinks rapidly or stops mid-cycle, the board may require in-warranty service or a CPU-assisted recovery.
• You're performing a multi-step BIOS update. Some boards require flashing through one intermediate version before reaching the version that supports your target CPU. The intermediate flash can sometimes only be done with a CPU present.

If you're unsure whether your chosen board supports Flashback or whether your CPU requires a BIOS update, get in touch before you order and we'll confirm for you. We do not guarantee compatibility for any CPU/motherboard pairing without verifying the specific board revision and BIOS version.

Pre-Purchase Compatibility Checklist

Work through this before adding a motherboard and CPU to your basket:

1. ☐ Does this specific board model and revision support USB BIOS Flashback? Check the manufacturer's spec page — not just the family overview.
2. ☐ What BIOS version does current stock ship with? Check the manufacturer's site or contact us — some retailers can confirm the board revision in stock.
3. ☐ Does your target CPU require a BIOS version higher than the shipping version? Cross-reference the CPU support list on the motherboard's product page.
4. ☐ If a BIOS update is needed, does the board support Flashback? If not, factor in the cost of a loan CPU, a system builder update, or a board swap.
5. ☐ Do you have a spare USB drive (32GB or under, formatted FAT32) available? Don't rely on a high-capacity or multi-partition drive.
6. ☐ Have you identified the exact correct BIOS file for your board's revision? Board revisions (1.0, 1.1, 2.0, etc.) can require different files.
7. ☐ Have you read the Flashback section of your board's manual? Procedure, button location, and LED signals vary — assumptions cause mistakes.
