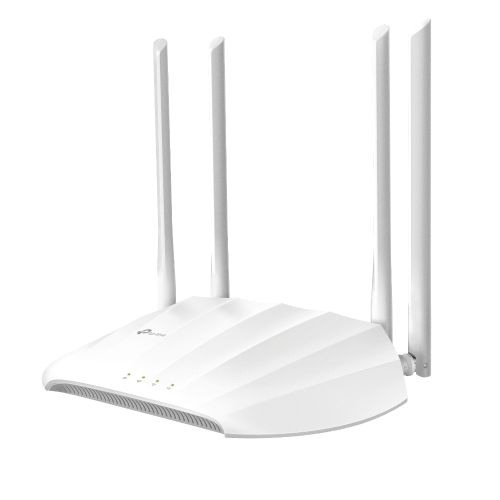

TP-LINK (TL-WA1201) AC1200 (867+300) Dual Band Wireless Access Point, MU-MIMO, Multi-mode - Range Extender, Multi-SSID, Client

AC1200 Wireless Access Point

• AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.
• Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.
• Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.
• MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.
• Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
• Captive Portal – Offers a designed portal page for heightened security and marketing.

Description

Specification

• Primary Function: Access Point
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Range Extender Mode: Yes (Range Extender Mode)
• #Hide#Wireless Standard: 802.11ac (Wi-Fi 5)
• Bands: Dual Band
• Wi-Fi Rating: AC1200
• Max Single Band Wi-Fi Rate: 867 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Interface(s): 1 x 10/100/1000 Mbps Ethernet Port
  (Supports Passive PoE)
• Wireless Standards: "IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz"
• Antenna(s): 4 x Fixed High Performance Antennas
• Button(s): "Power On/Off Button, WPS Button, Reset Button"
• Power Supply: 12V/1.5A
• Dimensions: 400 x 255 x 72 mm
• Suitable for Outdoor: No
• Frequency: 2.4 GHz and 5 GHz
• Reception Sensitivity: "5 GHz:
  11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
  11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
  11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
  11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

  2.4 GHz:
  11g 54Mbps: -78 dBm
  11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
  11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm"
• Wireless Modes: "Access Point, Range Extender, Client, Multi-SSID"
• Wireless Functions: "Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control"
• Security: "64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions"
• DHCP: Yes
• Quality of Service: WMM
• Additional Features: Captive Portal
• Environment: Operating Temperature: 0°C~40°C (32°F~122°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10% ~ 90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: Wireless Access Point TL-WA1201
  Power Adapter
  RJ45 Ethernet Cable
  Quick Installation Guide
  PoE Power Injector
• Package Type: Retail
• Package Weight: 0.8620 kg
• Warranty: 3 Years
