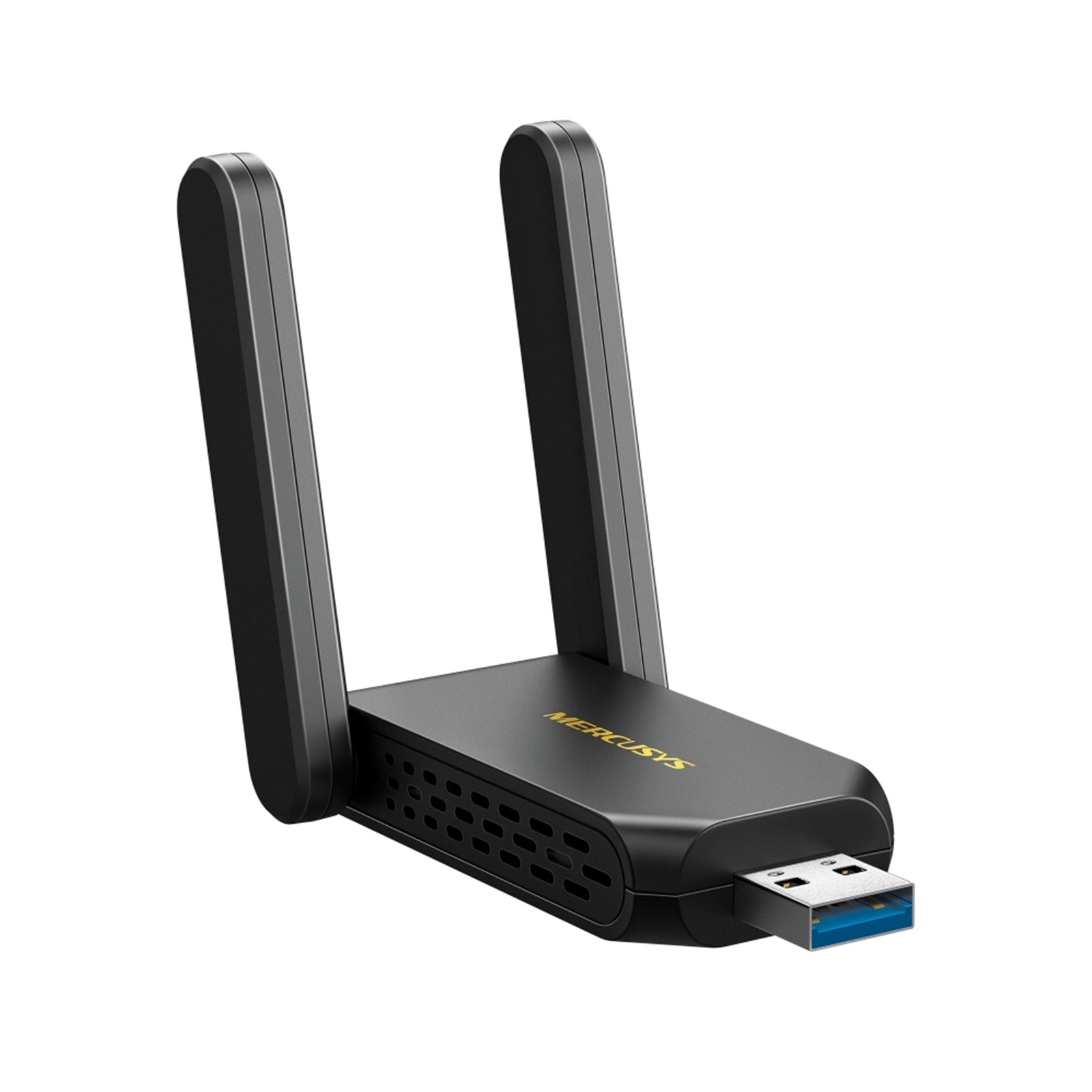

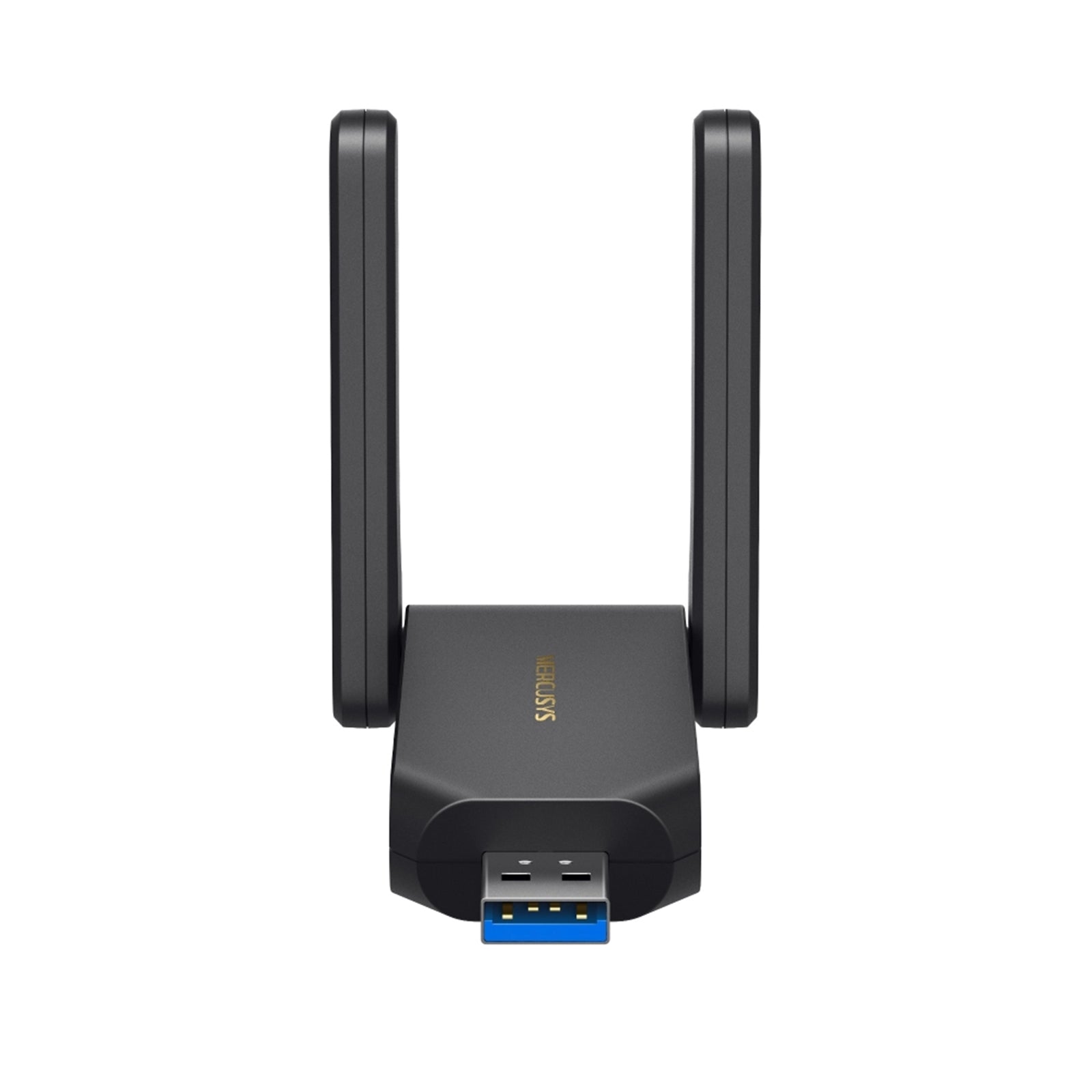

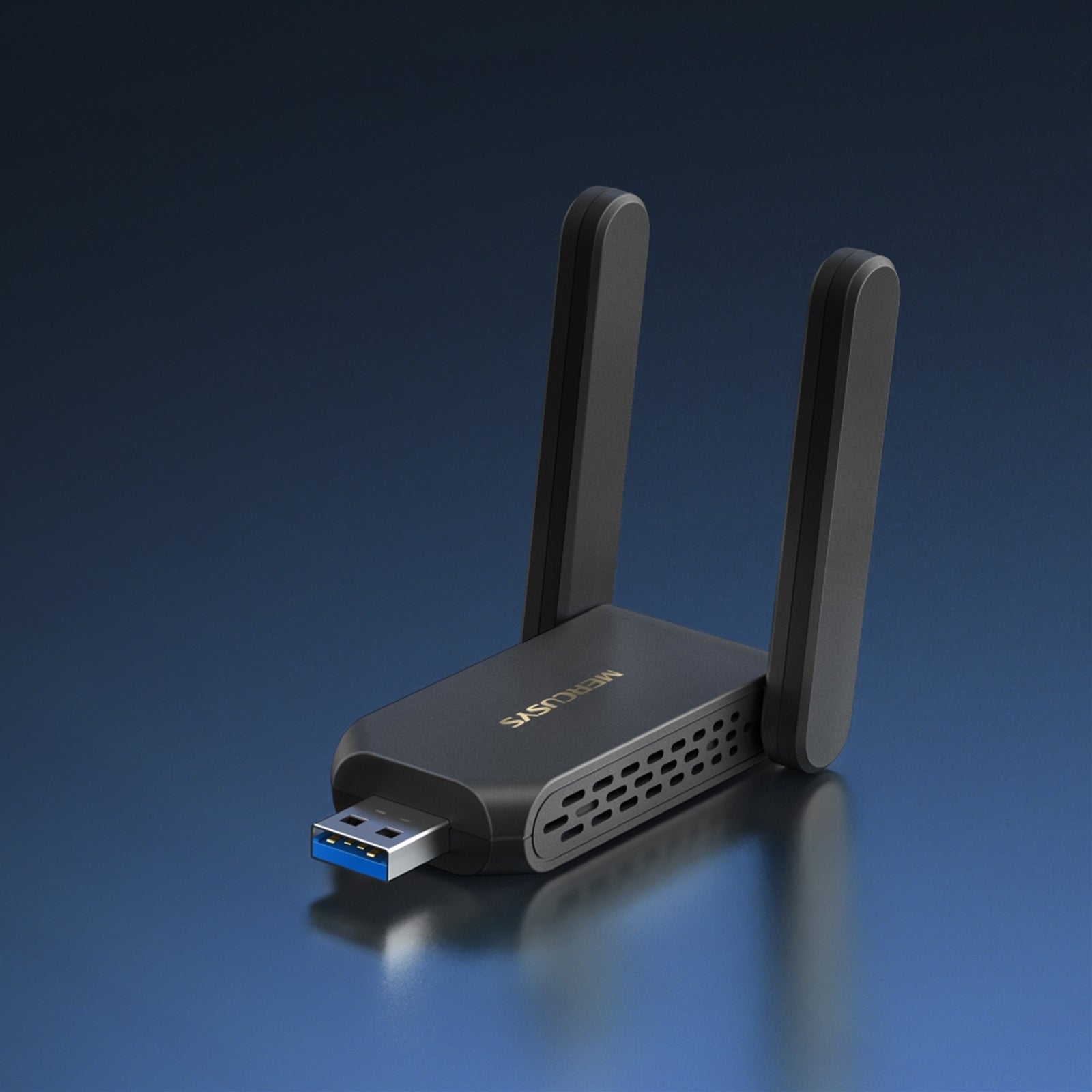

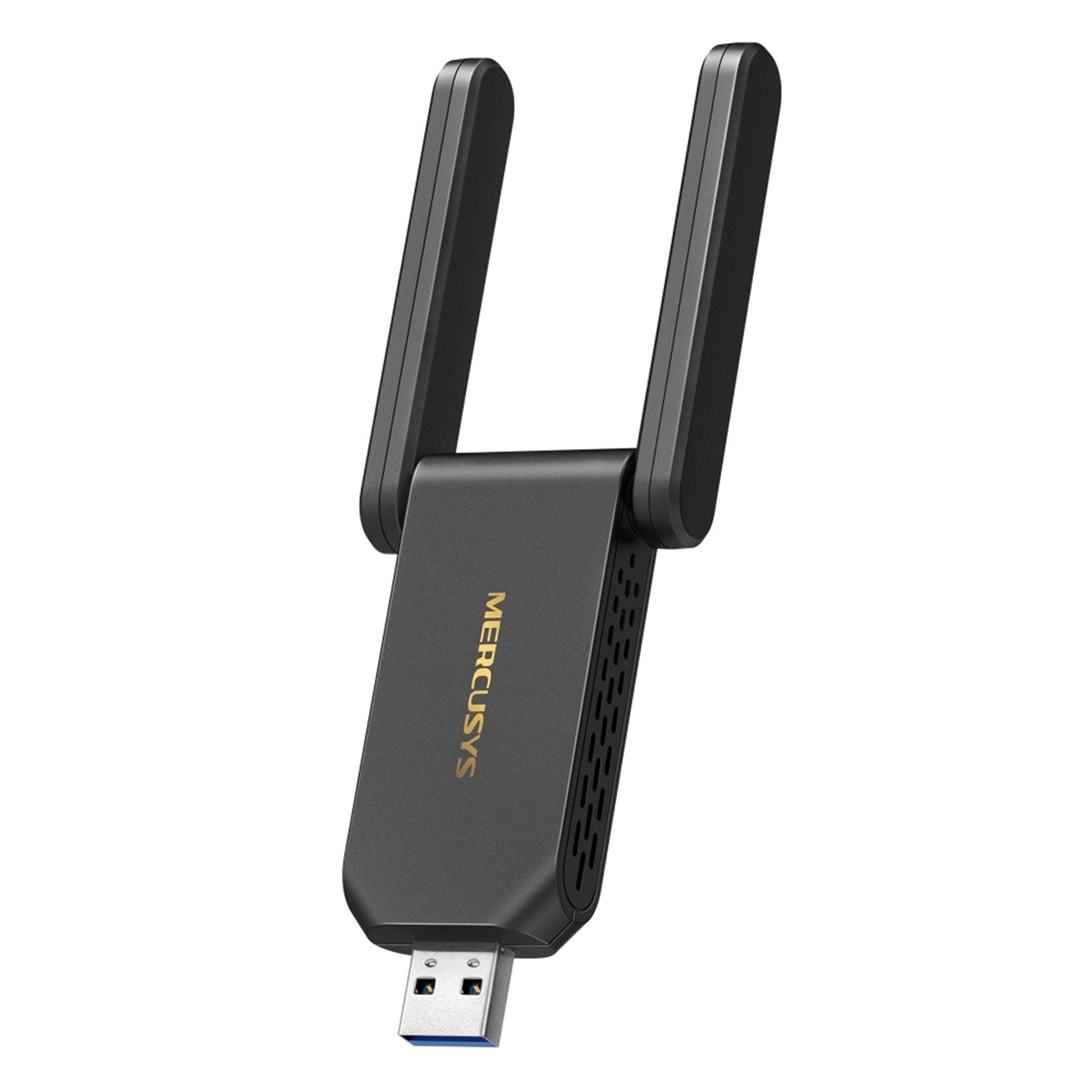

Mercusys MA86XH AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter

Mercusys MA86XH AXE5400 Wi-Fi 6E High-Gain Wireless USB Adapter

Tri-Band Wi-Fi Speed – Speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
Pre-Loaded Internal Driver – Plug in the MA86XH with the internal driver and enjoy the easy and friendly installation.
Wider Signal Coverage – Two high-gain antennas with Beamforming deliver extended range and focused coverage for faster, more stable connections.
MU-MIMO — Simultaneously serve several devices with no more latency or bandwidth congestion.
Improved Security — WPA3, the latest security standard, provides enhanced WiFi protection to secure your devices and personal information from brute-force attacks.
Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n Wi-Fi standards
Superior Transfer Speeds — Combined with 802.11ax Wi-Fi, USB 3.0 makes MA86XH perfect for HD streaming, online gaming, and large file downloads.
Windows Compatible — Supported operating system: Windows 10, 11*

Powerful Connectivity, Effortless Speed!
AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter

Upgrade Your PC to Wi-Fi 6E
MA86XH arms your PC with Wi-Fi 6E technology and the brand-new 6 GHz band, unlocking your WiFi 6E router's full potential. It seamlessly handles all your online activities, from HD video streaming to lag-free gaming and web browsing, thanks to its high-speed tri-band WiFi.

Reduced Latency, Enhanced Efficiency
Working with a MU-MIMO and OFDMA compatible router, your PC receives data simultaneously with other devices on the same network stream, resulting in minimal to no lag for videos and games.

Boost Wireless Range with High-Gain Antennas
Two high-gain antennas extend your router's reach with enhanced directional precision, ensuring faster and more stable wireless connections over longer distances.

Flexible and Easy Installation
Plug in the MA86XH with the internal driver and enjoy the easy and friendly installation.

USB 3.0 for Superior Transfer Speeds
USB 3.0 transfers data up to 10x faster than USB 2.0 and is backwards compatible. Combined with 802.11ax WiFi, USB 3.0 makes MA86XH perfect for HD streaming, online gaming, and large file downloads.

The Latest WPA3 Protects Your Personal Network
WPA3, the latest security standard, provides enhanced WiFi protection to secure your devices and personal information from brute-force attacks.

Protect Against Brute-Force Attacks
Delivers robust protection even when you are using a weak password


Advanced Forward Secrecy
Prevents data from being snooped even if a cracker compromises a session’s secret keys


Unbreakable 128-Bit Encryption
Creates an active defense against security threats and intruders

Compatible with Windows Operating System
MA86XH fully supports the latest Windows 11.

Specifications

Wireless
Wireless Standards
IEEE 802.11 ax 6 GHz
IEEE 802.11 a/n/ac/ax 5 GHz
IEEE 802.11 b/g/n 2.4 GHz

Signal Rate
2402 Mbps on 6 GHz
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz

Reception Sensitivity
6 GHz:
11ax HE160 MCS11: -58 dBm
11ax HE160 MCS0: -82 dBm
5 GHz:
11ax HE160 MCS11: -61 dBm
11ax HE160 MCS0: -85 dBm
2.4 GHz:
11ax HE40 MCS11: -64 dBm
11ax HE40 MCS0: -92 dBm

Wireless Security
WPA/WPA2/WPA-PSK/ WPA2-PSK/WPA3-SAE

Hardware
Dimensions (W x D x H)
77 x 45.2 x 12.4 mm
(3.03 x 1.78 x 0.49 in)

Interfaces
USB 3.0

Antenna Type
2 External High Gain Antennas

Others
Package Contents
AXE5400 Wi-Fi 6E High-Gain Wireless USB Adapter (MA86XH)
Quick Installation Guide

System Requirements
Windows 11/10 (32/64 bit)
