be quiet! Dark Power Pro 14 IO 1300W Fully Modular PSU, 80 PLUS Titanium, ATX 3.1, PCIe 5.1, 2x 12V-2x6, Silent Wings 135mm Fan, 10 Year Warranty, Black

The be quiet! Dark Power Pro 14 IO 1300W 80+ Titanium Power Supply is engineered for extreme-performance gaming PCs, enthusiast builds, professional workstations and heavily overclocked systems. Delivering 1300W of continuous power with ATX 3.1 compliance and native PCIe 5.1 12V-2x6 connectivity, it provides the performance required by the latest high-end processors and graphics cards. Advanced digital control, premium Japanese capacitors and integrated be quiet! Silent Wings cooling combine exceptional electrical stability with remarkably quiet operation.

Key Features
• 80 PLUS® Titanium & Cybenetics Titanium efficiency with up to 94.9% efficiency
• 1300W continuous power output with up to 1400W peak power
• ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs using 6+2-pin connectors
• 2 x native 12V-2x6 PCIe 5.1 connectors supporting up to 600W each
• 6 x PCIe 6+2-pin connectors for extensive GPU compatibility
• Selectable multi-rail or single-rail 12V operation
• Software monitoring and configuration through be quiet! IO Center
• Selectable active or semi-passive cooling
• Integrated Silent Wings 4 135mm fan with fluid dynamic bearing
• 6-pole fan motor for exceptionally quiet and reliable operation
• Fully digital power regulation for outstanding stability and low ripple
• Full Bridge + LLC + SR + DC/DC topology
• Fully modular individually sleeved cables for clean system builds
• Premium Japanese capacitors rated to 105°C
• Comprehensive electrical protection
• 10-year manufacturer’s warranty

Full Specification

Model:
Dark Power Pro 14 IO | 1300W Titanium Power Supply

MPN:
BP022EU

EAN:
4260052192108

Output Power:
1300W continuous / 1400W peak

Efficiency:
80 PLUS Titanium & Cybenetics Titanium
Up to 94.9% efficiency

Efficiency at 230V:
2% load: 74.2%
10% load: 91.9%
20% load: 94.6%
50% load: 94.9%
100% load: 93.9%

Voltage Rails:
6 x 12V rails
Switchable to single-rail operation

12V Rail Output:
+12V1: 35A
+12V2: 35A
+12V3: 40A
+12V4: 40A
+12V5: 55A
+12V6: 55A

ATX Form Factor:
ATX 3.1

EPS Specification:
EPS 12V 2.92

PCI Express Support:
PCIe 5.1

Connectors:
1 x ATX 20+4-pin
1 x 4+4-pin CPU
1 x 8-pin CPU
2 x 12V-2x6 PCIe 5.1
6 x 6+2-pin PCIe
16 x SATA
2 x PATA / Molex
1 x USB 2.0 9-pin connection for IO functionality

12V-2x6 Output:
Up to 600W per 12V-2x6 connector
Up to 1200W combined

Fan:
135mm be quiet! Silent Wings 4
Fluid Dynamic Bearing (FDB)
6-pole fan motor

Maximum Fan Speed:
2600 RPM

Fan Speed Control:
Active or semi-passive cooling
Software configurable through be quiet! IO Center

Fan Noise:
8.5 dB(A) at 10% load
8.6 dB(A) at 20% load
8.7 dB(A) at 50% load
22.1 dB(A) at 100% load

Power Input:
100–240V AC, 50/60Hz
Input current: 15A / 9A

Power Factor:
Greater than 0.98 at 230V
Greater than 0.99 at 115V

Power Output:
12V DC: up to 1300W combined
3.3V + 5V combined: 150W
5VSB: 17.5W
-12V: 6W

Output Current:
+3.3V: 25A
+5V: 25A
+12V1: 35A
+12V2: 35A
+12V3: 40A
+12V4: 40A
+12V5: 55A
+12V6: 55A
-12V: 0.5A
+5VSB: 3.5A

Power Supply Technology:
Digitally controlled
Full Bridge
LLC converter
Synchronous Rectification (SR)
DC/DC conversion

Capacitors:
Premium Japanese capacitors rated to 105°C

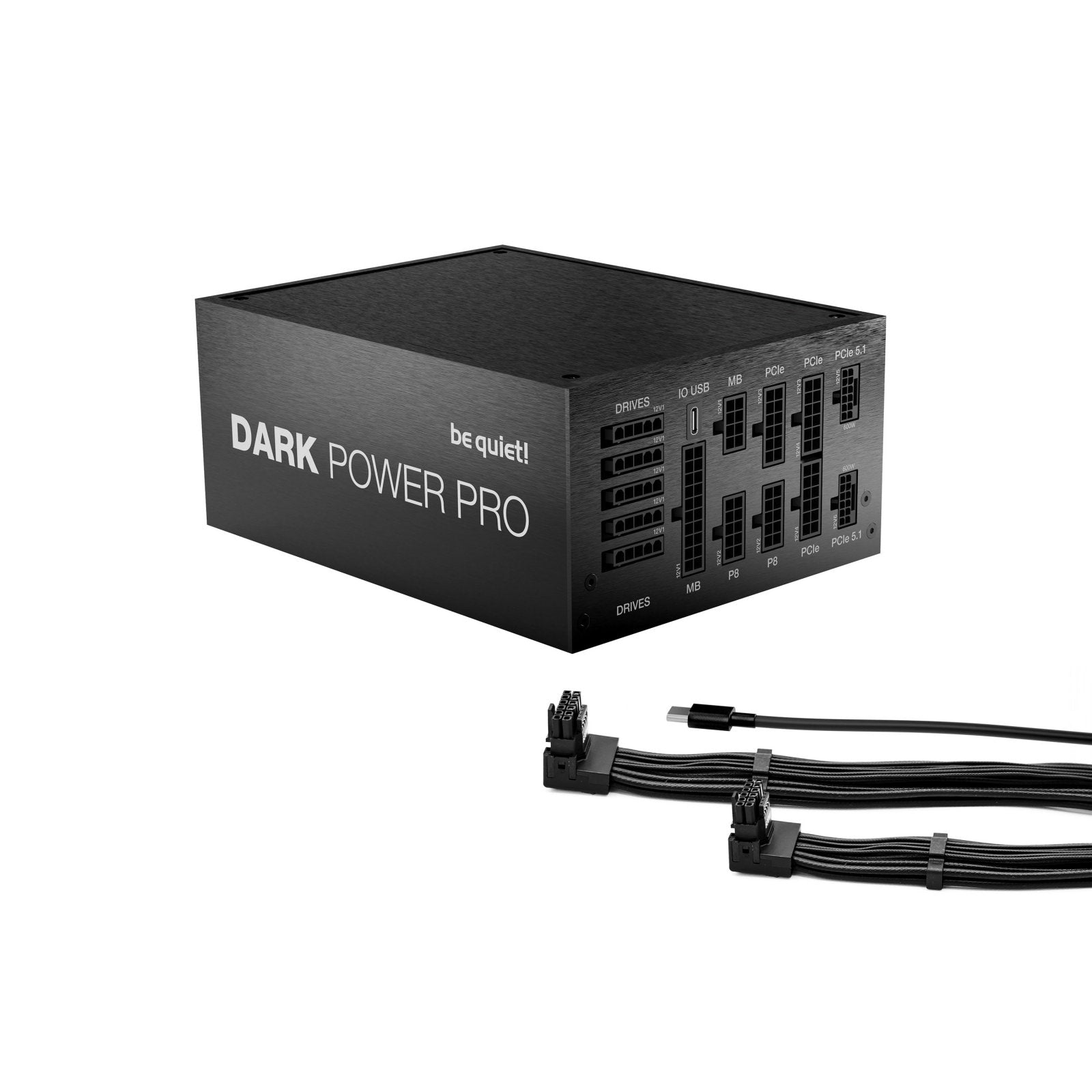

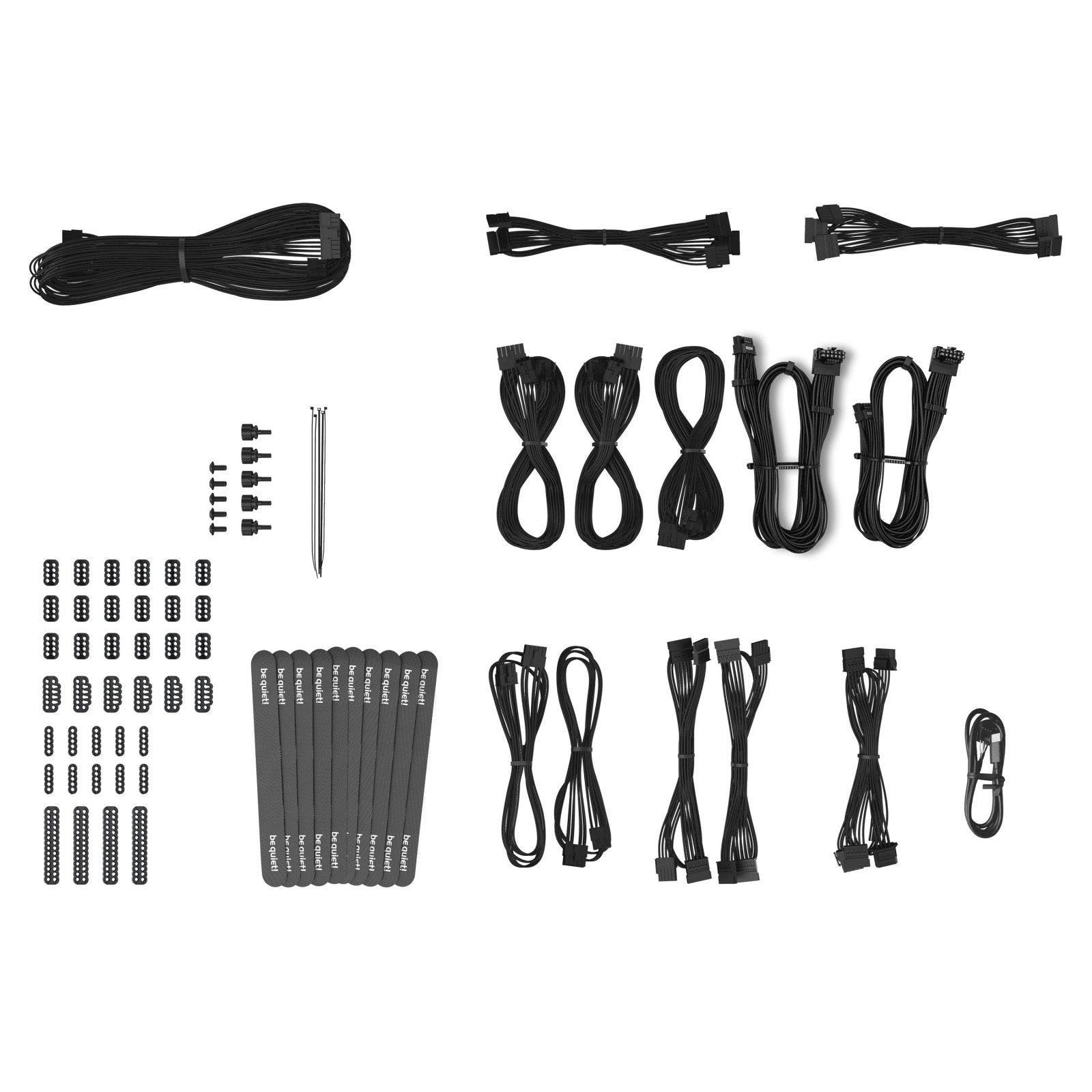

Cable Set:
Fully modular individually sleeved cables
ATX, EPS, PCIe 5.1, PCIe 6+2, SATA and PATA connections

Cable Lengths:
ATX 20+4-pin: 600mm
CPU 4+4-pin: 700mm
CPU 8-pin: 700mm
PCIe 6+2-pin: 600mm
12V-2x6: 600mm / 700mm
SATA / PATA: up to 1050mm
USB 2.0 IO cable: 770mm

Software Support:
Compatible with be quiet! IO Center
PSU monitoring and configuration
Cooling mode configuration
Single-rail and multi-rail selection

Special Features:
Titanium efficiency
ATX 3.1 and PCIe 5.1 support
Dual 600W 12V-2x6 connectors
Software-controlled PSU functions
Selectable active or semi-passive cooling
Selectable single-rail or multi-rail operation
Advanced low-ripple power delivery
Premium Japanese capacitors
Silent Wings 4 cooling
Fully modular sleeved cabling

Protection:
OTP – Over Temperature Protection
OCP – Over Current Protection
OPP – Over Power Protection
SCP – Short Circuit Protection
OVP – Over Voltage Protection
UVP – Under Voltage Protection
SIP – Surge & Inrush Protection

Hold-Up Time:
16.5ms at 100% load
20.5ms at 80% load

Power Good Signal:
100–150ms

Modern Standby:
Supported

Standby Power Consumption:
Less than 0.11W

Operating Temperature:
Up to 40°C

Dimensions without cable (L x W x H), (mm)
200 x 150 x 86

Weight:
Approx. 2.67kg

MTBF:
More than 100,000 hours at 25°C

Colour:
Black

Warranty:
10-year manufacturer’s warranty
