be quiet! Pure Power 13 M 1200W PSU, 80 PLUS Gold, Exceptionally Quiet 120mm Fan, ATX 3.1, 10 Year Warranty

be quiet! PURE POWER 13 M

Exceptional quiet, superior features
Pure Power 13 M 1200W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 1200W offers the best combination of features with outstanding compatibility.

80 PLUS Gold efficiency (up to 93.5%)
ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
Handles massive power excursions
Exceptionally silent semi-passive 120mm be quiet! fan
Semi-passive construction for quiet and energy-saving operation
LLC technology for advanced stability and voltage regulation
One massive high-performance 12V-rail
One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
Full suite of safety features
Meets latest requirements for modern standby
10-year manufacturer’s warranty

Specifications

General data
ModelPURE POWER 13 M | 1200W
Continuous power (W)1200
Peak power (W)1250
Form factorATX 3.1
Form factor EPS 12VVersion 2.92
TopologyLLC + SR + DC/DC
Digitally controlled-
Voltage (Vac)100 - 240
Frequency (Hz)50 - 60
Input current (A)15 / 7.5
Power factor at 100% load>0.97
Modern standbyYes
Power consumption in standby (W)<0.1
Average life time (h / 25°C)>100,000
Operating temperature up to (°C)40

Efficiency

80 PLUS certificationGold
Cybenetics ETAGold
Efficiency (%) at 230V, 2% load75.9
Efficiency (%) at 230V, 10% load91.2
Efficiency (%) at 230V, 20% load93.4
Efficiency (%) at 230V, 50% load93.6
Efficiency (%) at 230V, 100% load90.8

Fan and cooling technology
Cybenetics LAMBDAA
FanSilence-optimized be quiet! fan
Fan size (mm)120
Bearing technologyRifle
Motor technology4-pole fan motor
Max. fan speed (rpm)2700
dB(A) at 10% load9.8
dB(A) at 20% load9.8
dB(A) at 50% load11.6
dB(A) at 100% load32.3

Output
Multi-rail operation (12V rails)-
12V single rail operationYes
Overclocking key-
+3.3V (A)22
+5V (A)22
+12V1 (A)100
+12V2 (A)N/A
+12V3 (A)N/A
+12V4 (A)N/A
+12V5 (A)N/A
+12V6 (A)N/A
-12V (A)0.3
+5Vsb (A)3
Max. combined power 12V (W)1200
Max. combined power 12V-2x6 (W)600
Max. combined power 3.3V + 5V (W)120
Hold-up time at 100% load (ms)19.11
Hold-up time at 80% load (ms)25.54
Power good signal (ms)100 - 150

Cables and connectors
Modular cablesYes
Sleeved cablesYes
Flat cablesYes
Maximum cable length (cm)95
Cable length to motherboard (cm)55
No. of cables8
ATX-Motherboard (20+4-pin)1
P4+4 (CPU)1
P8 (CPU)1
P4 (CPU)-
12V-2x6 cables1
PCI-E 6+2-pin (GPU)4
PCI-E 6-pin (GPU)-
SATA6
PATA2
FDD (Floppy)-

Protection
OTP (over temperature protection)Yes
OCP (over current protection)Yes
OPP (over power protection)Yes
SCP (short circuit protection)Yes
OVP (over voltage protection)Yes
UVP (under voltage protection) Yes
SIP (Surge & Inrush protection)Yes

Safety certification
BSMIYes
CBYes
CCCYes
CEYes
cRUus-
cTUVusYes
CUYes
FCCYes
RCMYes
TÜVYes
UKCAYes
IRAMYes

Environmental directives
ENERGY STAR9.0
ErPYes
WEEEYes
RoHSYes
Triman-

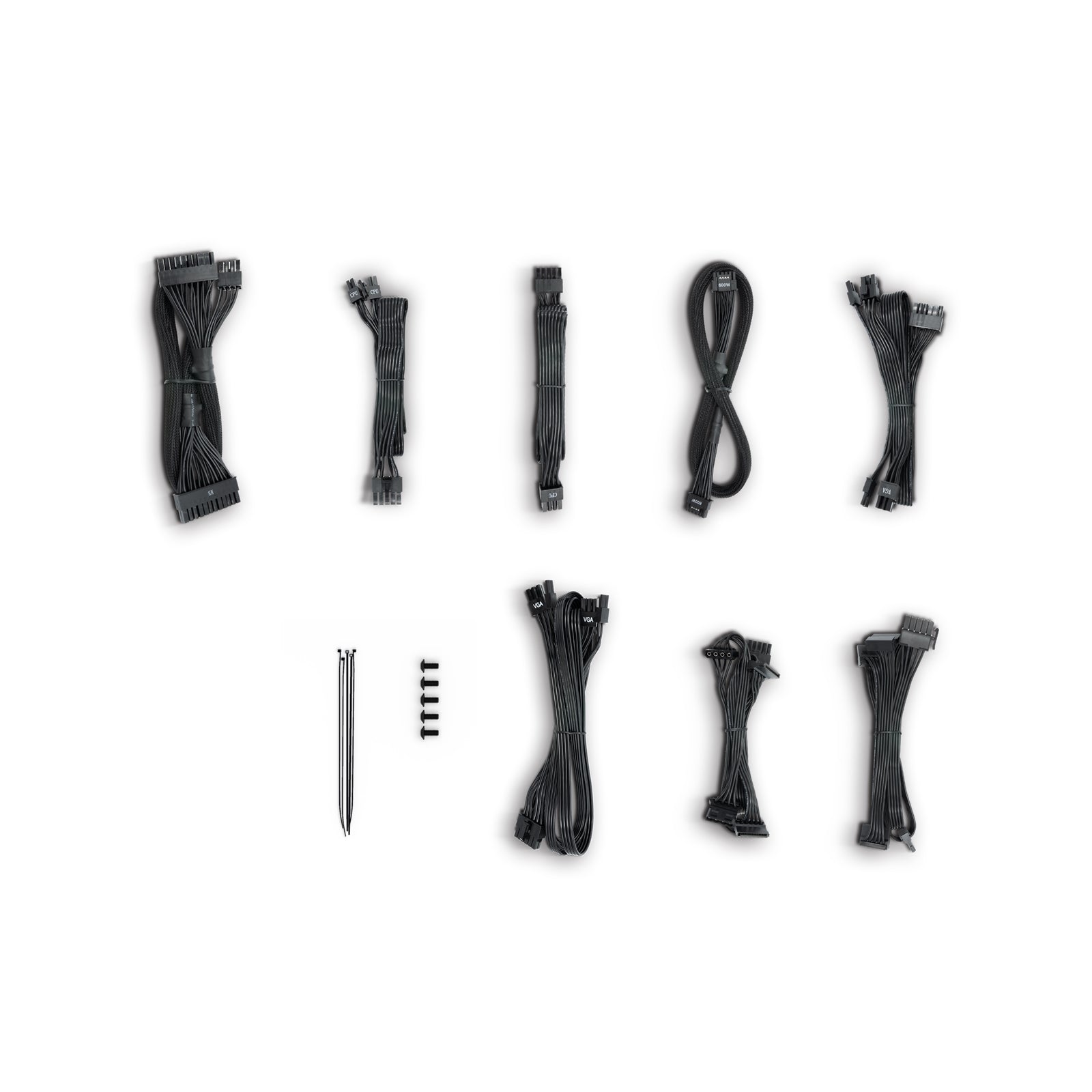

Scope of delivery
Thumb screws-
ScrewsYes
Cable tiesYes
Velcro cable ties-
User manual languagesCN, DE, EN, ES, FR, JP, PL, RU, TW
OCK slot bracket with switch / OCK jumper-
SFX-to-ATX adapter bracket-

Casing
Dimensions without cable (L x W x H), (mm)160 x 150 x 86
Weight (kg)2.69
ColorBlack

Service
Warranty (Years)10
Express replacement service in first year-
International hotline / free of chargeYes/ DE, FR
