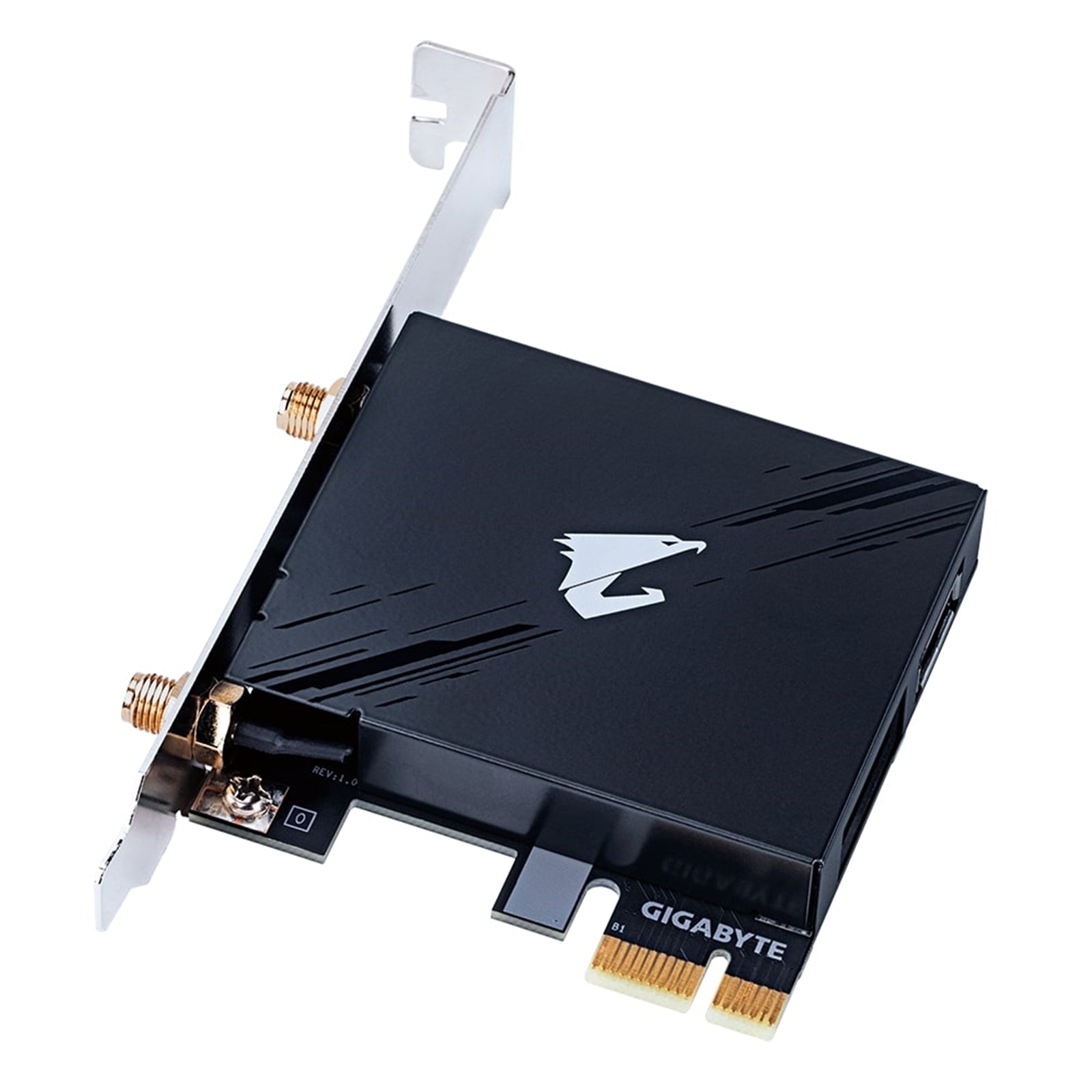

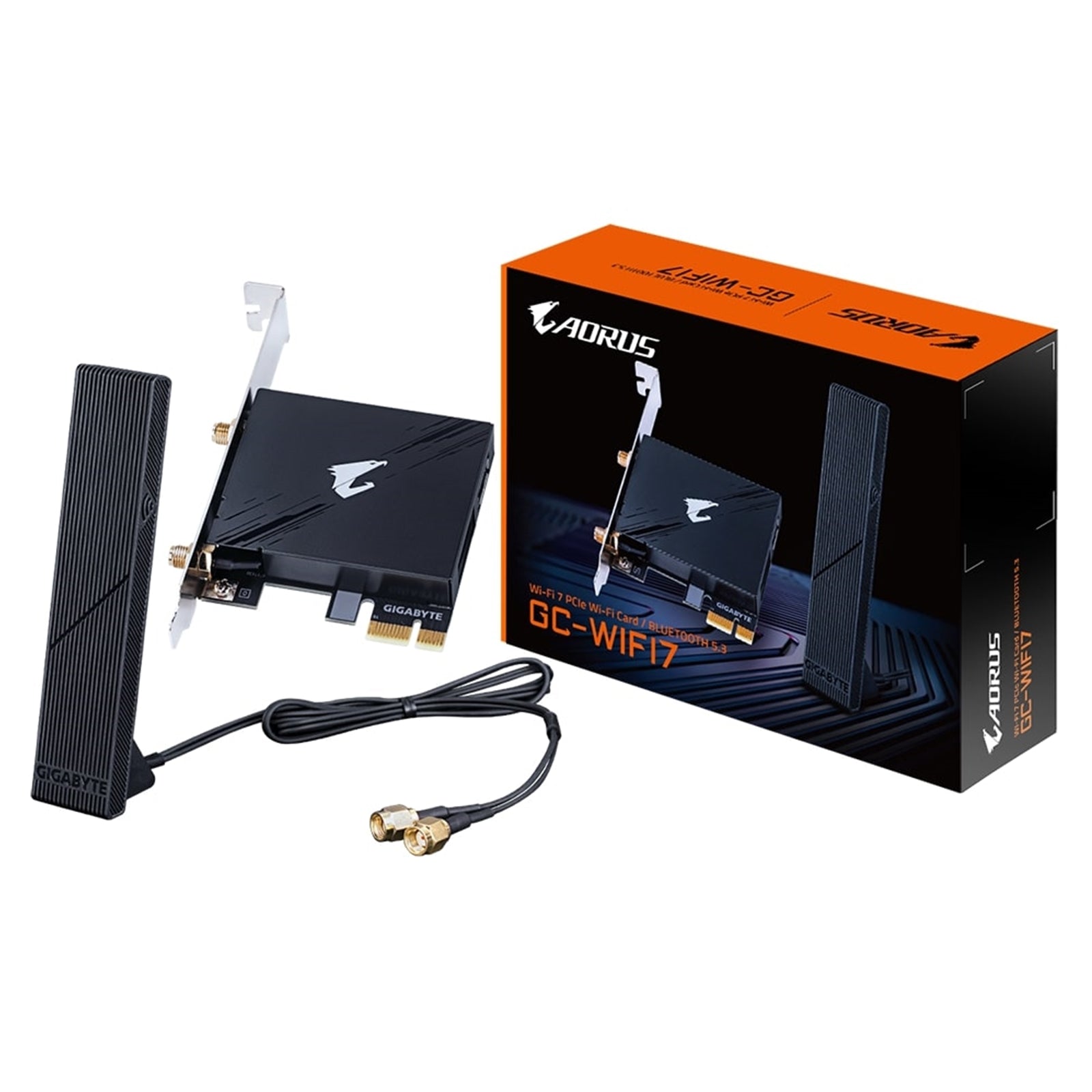

Gigabyte GC-WIFI7 Intel WiFi 7 5800Mbps Tri-Band Wireless PCI-Express and Bluetooth 5.3 Card with Magnetic Ultra High-Gain Antenna

GC-WIFI7

Key Features
Built-in Wi-Fi 7 module
Supports high-speed wireless connections of up to 5800Mbps
Offers up to 320MHz bandwidth support across the 2.4GHz, 5GHz, and 6GHz bands
MLO (Multi-Link Operation) enables simultaneous connections on two bands
MRU (Multiple RU) enhances interference mitigation and OFDMA efficiency
4K-QAM allows for higher transmission rates, resulting in increased efficiency
Bluetooth 5.3 Compatible
Supports MU-MIMO TX/RX
Complies with IEEE 802.11 a/b/g/n/ac/ax/be standards
Equipped with an ultra-high gain 2Tx2R antenna, supporting both directional and omnidirectional signals
PCIe x1 Interface Card

Upgrade Your PC to Wi-Fi 7

5800 Mbps
Wi-Fi 7

2400Mbps
Wi-Fi 6E

867Mbps
Wi-Fi 5

Wi-Fi 7 brings you the Ultimate VR experience
Wi-Fi 7 provides significant benefits to the realm of virtual reality (VR). With its high bandwidth and low latency capabilities, Wi-Fi 7 ensures a smooth and immersive VR experience.

320/160 MHz channels
Wi-Fi 7 supports up to 320 MHz channels, providing a significant increase in bandwidth for faster data rates.

Multi-link Operation
With MLO(Multi-Link Operation) technology, you can allocate the 2.4GHz band for streaming and the 5/6GHz band for gaming, resulting in a higher quality network experience with fewer interruptions.

4K-QAM
With 4K-QAM technology, Wi-Fi 7 improves data throughput, resulting in faster file transfers and seamless streaming.

Deterministic low latency
Deterministic low latency ensures minimal delays, making it ideal for real-time applications like video conferencing and online gaming.

GIGABYTE Ultra-high Gain Antenna
Experience enhanced signal strength with the GIGABYTE Ultra-high gain Antenna, which incorporates a smart antenna function to optimize Wi-Fi signal transmission.

Direction Signal
up to 5dBi

Omnidirectional Signal
up to 4dBi

Magnetic Base

Specifications

Ports & Interfaces

Connectivity
Wireless

Host interface
PCI Express

Interface
WLAN / Bluetooth

Network

Maximum data transfer rate
5800 Mbit/s

Networking standards
IEEE 802.11be, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Wi-F
Yes

Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Frequency range
2.4 - 6 GHz

Top Wi-Fi standard
Wi-Fi 7 (802.11be)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Bluetooth
Yes

Bluetooth version
5.3

Packaging Content

Quick installation guide
Yes

Design

Internal
Yes

Component for
PC

Product color
Black

Antenna
Yes

Antenna type
2x2

Weight &Dimensions
8.27 x 5.83 x 2.16 inches
0.69 lbs.
