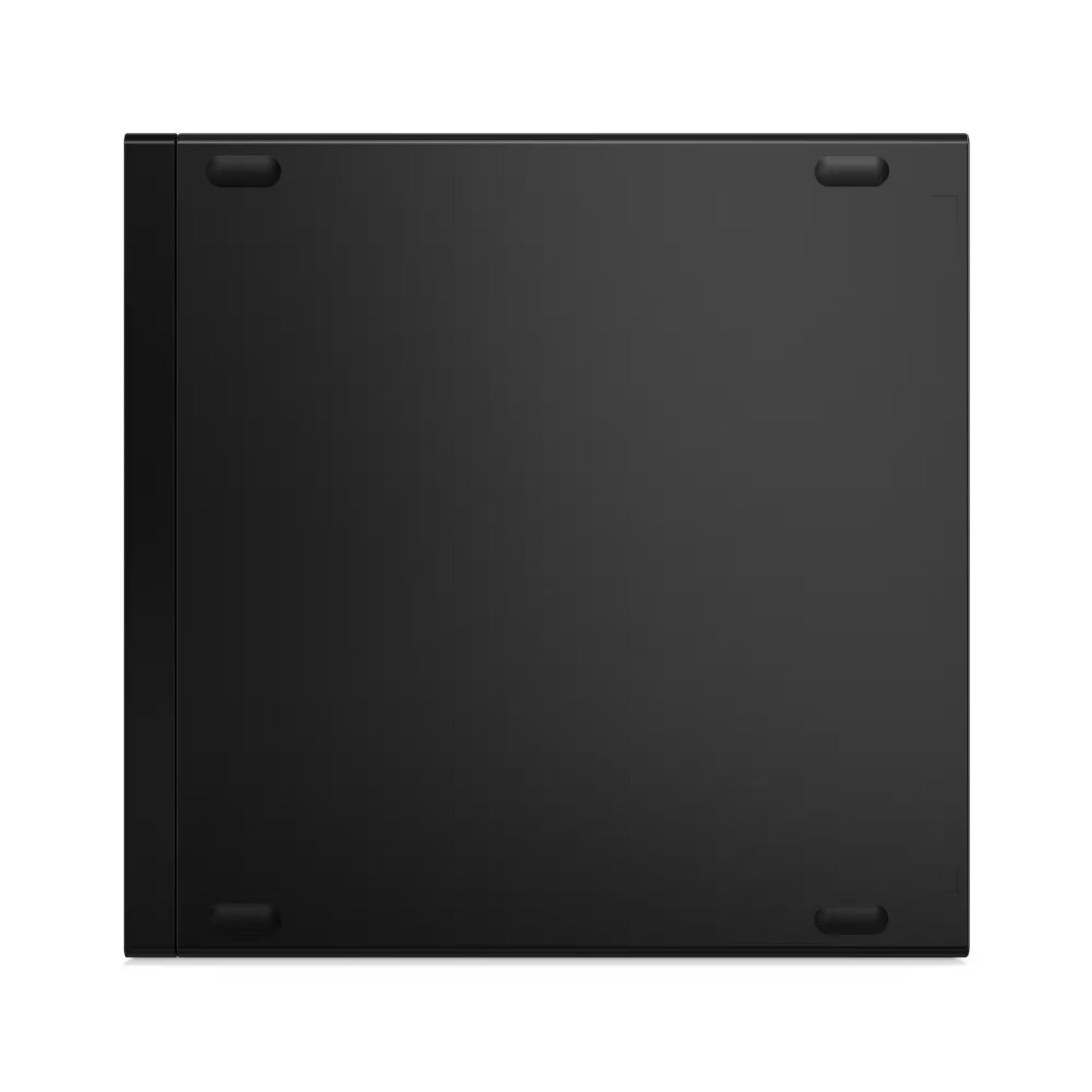

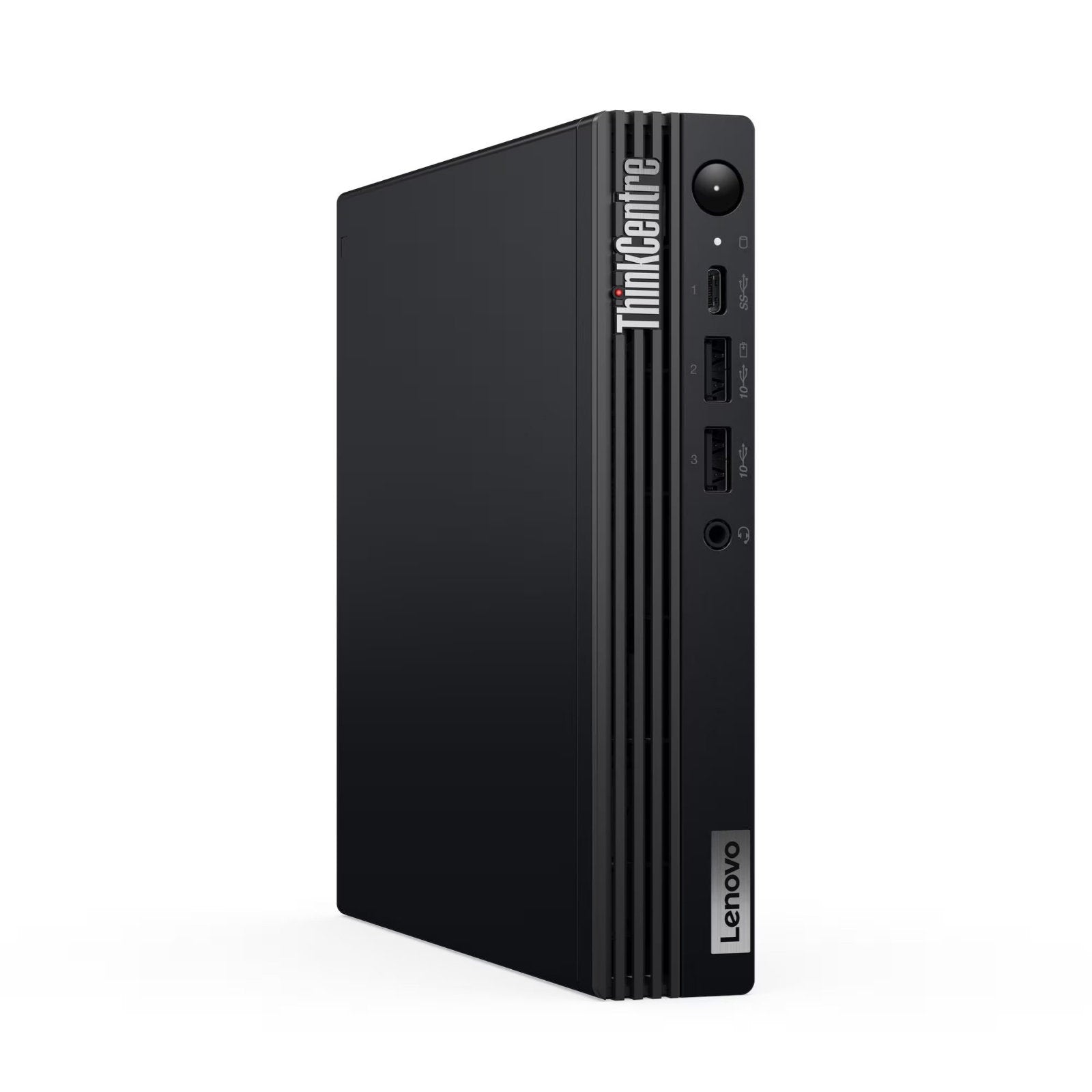

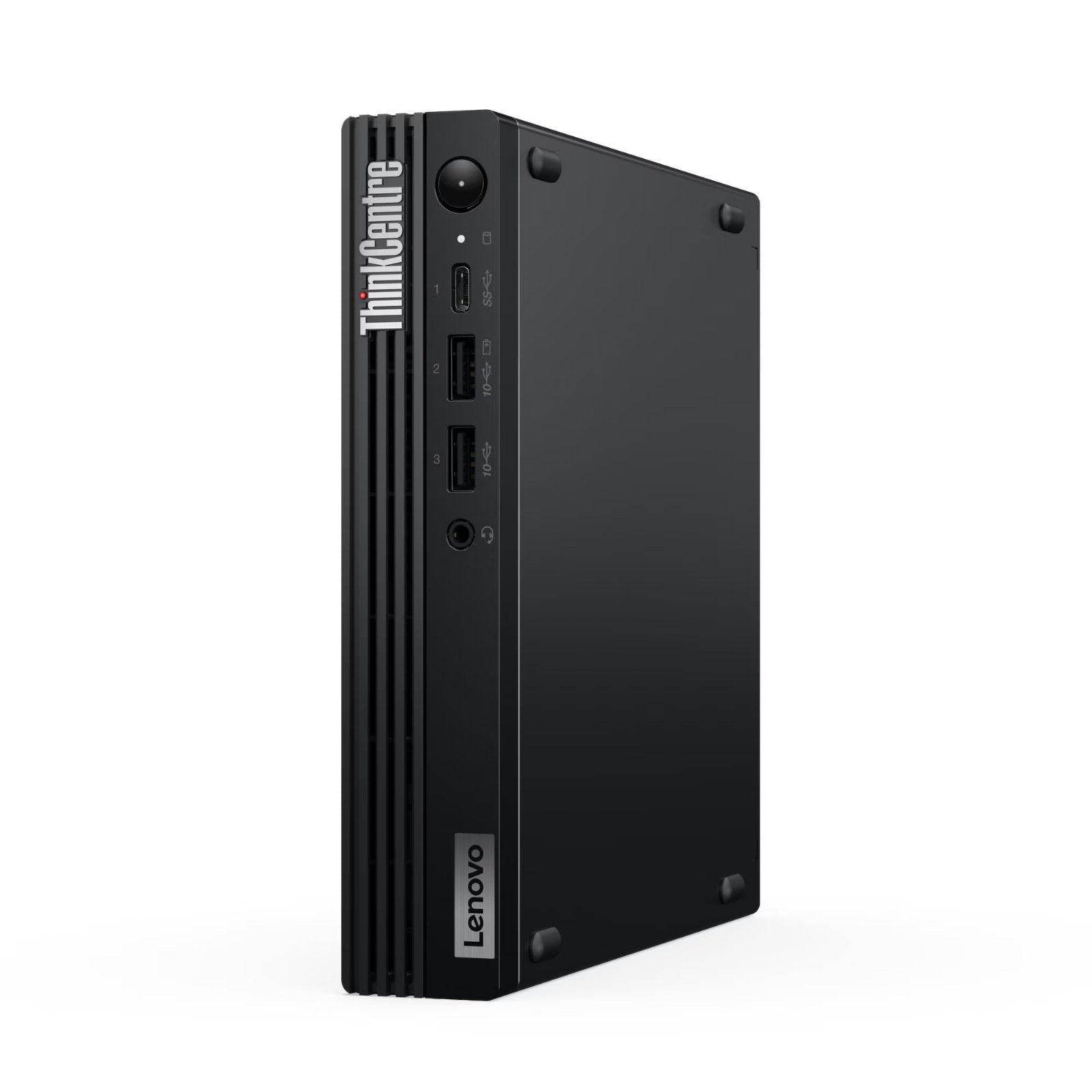

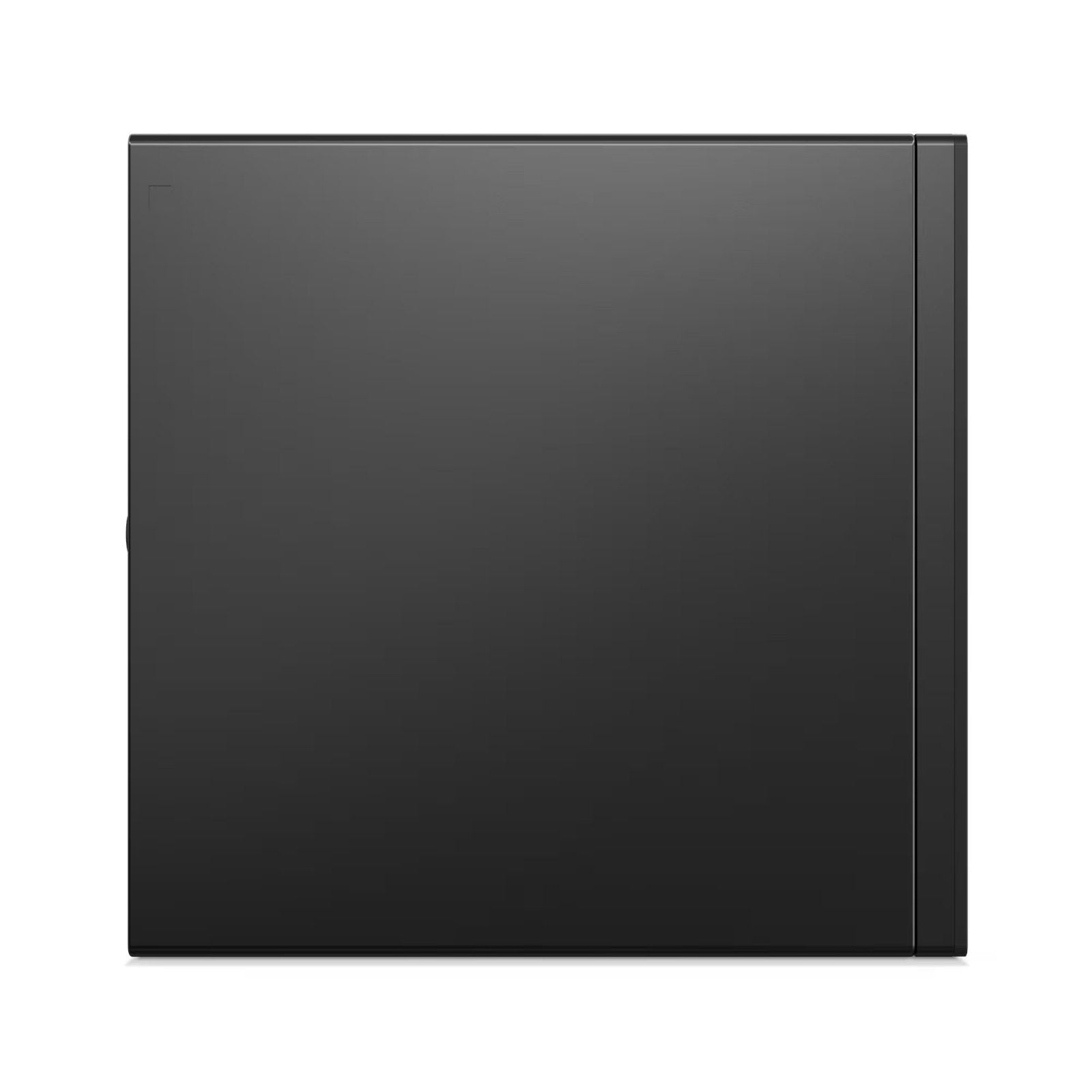

Lenovo ThinkCentre M70q G5 12TD009UUK Tiny PC, Intel Core i5-14400T 14th Gen, 16GB DDR5 RAM, 512GB SSD, Intel UHD Graphics 730, Windows 11 Pro with Keyboard and Mouse and 3 Year Onsite Warranty

PERFORMANCE

Processor
Intel® Core™ i5-14400T, 10C (6P + 4E) / 16T, P-core 1.5 / 4.5GHz, E-core 1.1 / 3.2GHz, 20MB Intel® Smart Cache

Graphics
Integrated Intel® UHD Graphics 730

Chipset
Intel® Q670 Chipset

Memory
1x 16GB SODIMM DDR5-4800

Memory Slots
Two DDR5 SODIMM slots, dual-channel capable

Max Memory
Up to 64GB (2x 32GB DDR5 SODIMM)

Storage
512GB M.2 2280 PCIe® 4.0 x4 NVMe® Opal SSD

Max Storage Support
Up to two drives, 2x M.2 SSD
M.2 2280 SSD up to 2TB

RAID Preset
None

Card Reader
No card reader

Optical Drive
None

Audio Chip
High Definition (HD) Audio, Realtek® ALC233VB or Conexant CX11771 codec

Speakers
1x 2W speaker

Power Supply
90W, 89% efficiency adapter

DESIGN

Keyboard
USB Traditional Keyboard, Black, English (UK)

Mouse
USB Calliope Mouse, Black

Expansion Slots
Three M.2 slots (one for WLAN, two for SSD)

Case Colour
Raven Black

Form Factor
Tiny (1L)

Dimensions (W x D x H)
179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches)

Weight
Approximately 1.25 kg (2.76 lbs)

Mounting
VESA Mount

Chassis Features
Toolless Chassis Screw

SOFTWARE

Operating System
Windows® 11 Pro, English

Bundled Software
None

CONNECTIVITY

WLAN + Bluetooth
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2, Bluetooth® 5.3, vPro®

WWAN
WWAN Not Supported

Ethernet
Integrated 100/1000M Ethernet

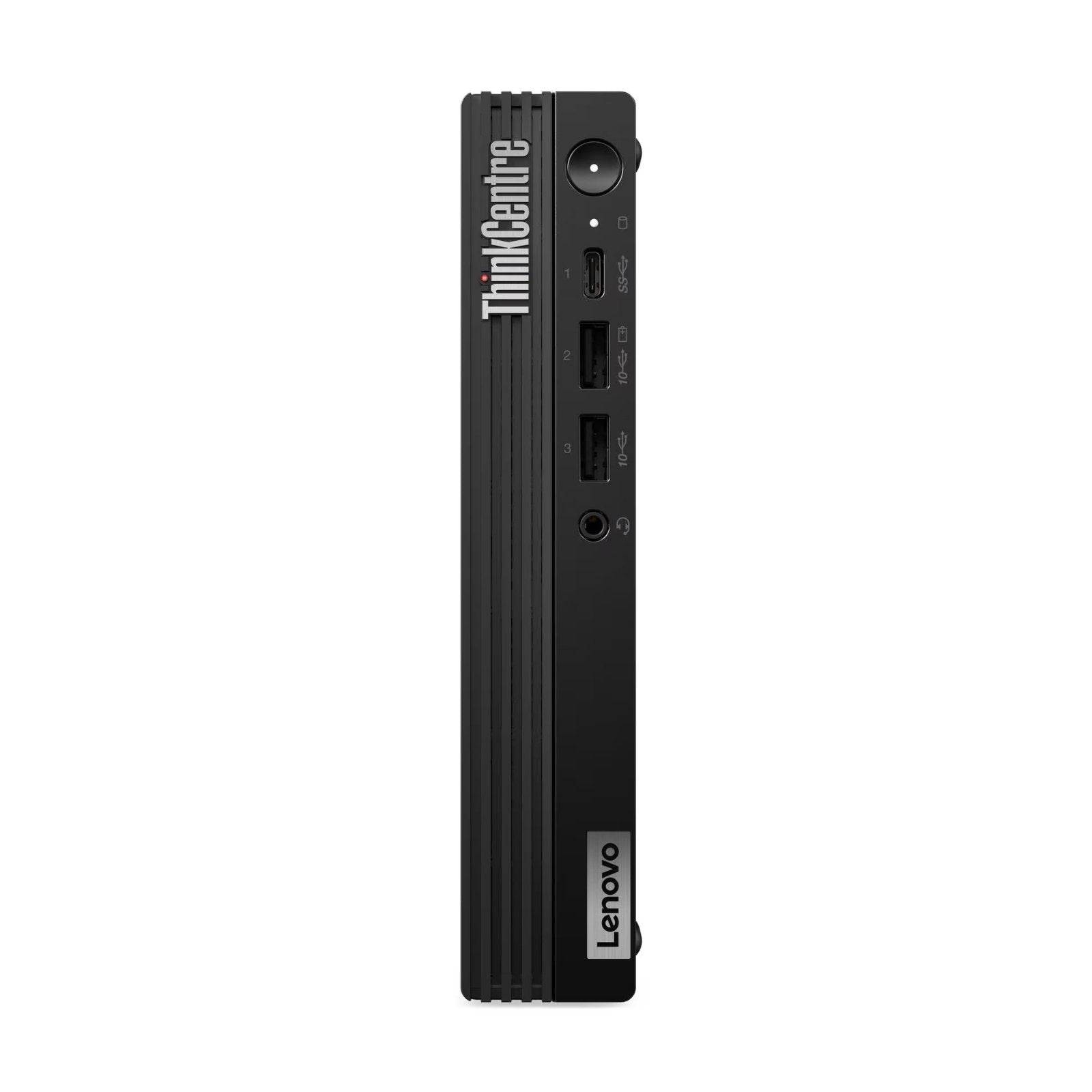

Front Ports
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 5V@0.9A charging
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On, with 5V@2.1A charging
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x Headphone / microphone combo jack (3.5mm)

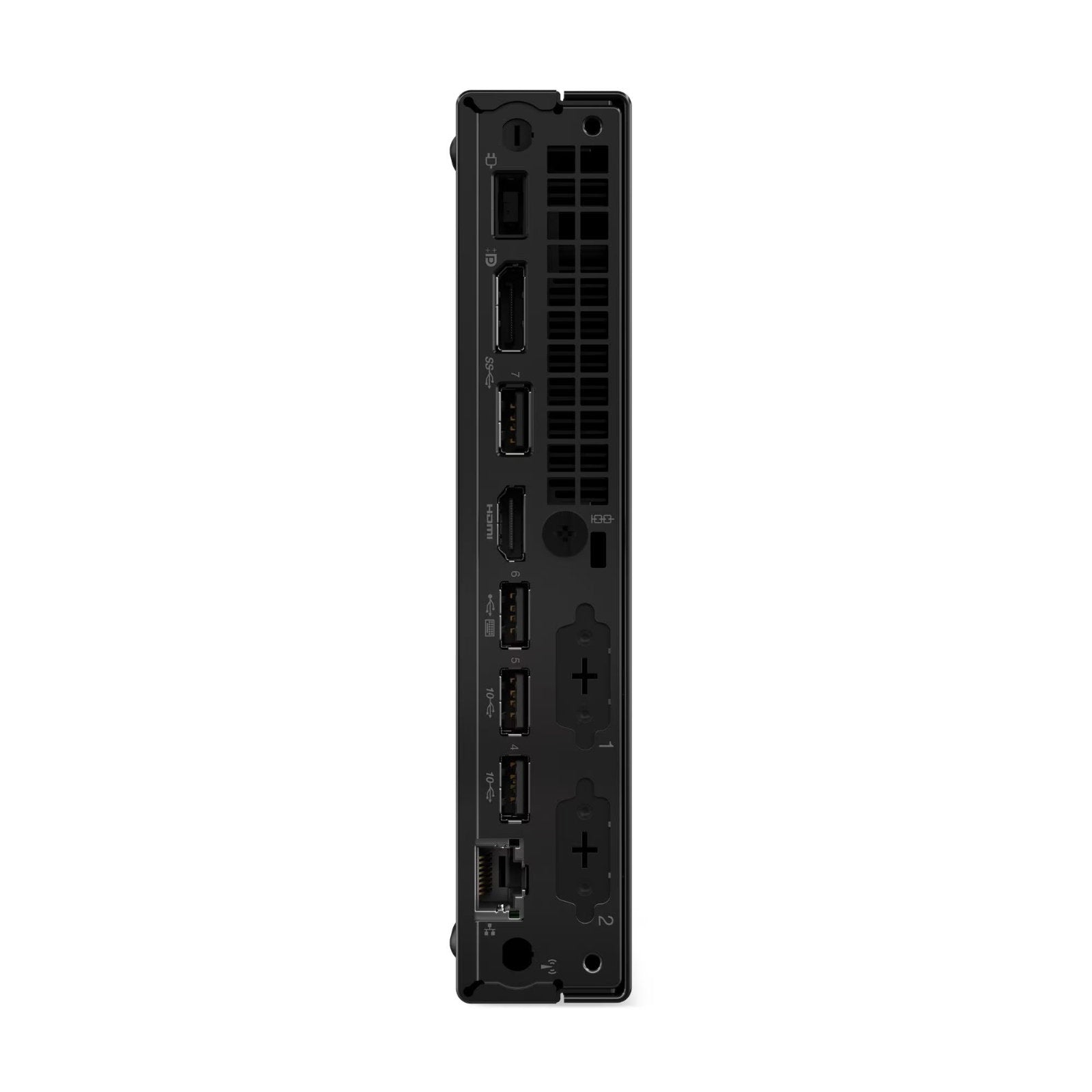

Rear Ports
1x USB-A (Hi-Speed USB / USB 2.0), with smart power-on
1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2, DSC)
1x Ethernet (RJ-45)

Optional Rear Ports
None

SECURITY & PRIVACY

Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Physical Locks
Kensington Security Slot™, 3 x 7 mm

Chassis Intrusion Switch
Chassis Intrusion Switch

MANAGEABILITY

System Management
Non-vPro®

SERVICE

Base Warranty
1-year Onsite

Included Upgrade
CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
1Y Premier Support TC DT/AIO Mainstream/Halo WHB (CPN)
3Y Onsite upgrade from 1Y Onsite (CPN)

CERTIFICATIONS

Green Certifications
ENERGY STAR® 9.0
EPEAT 2.0 Silver Registered
ErP Lot 3/7
RoHS compliant
TCO Certified

Mil-Spec Test
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)

ACCESSORIES

Bundled Accessories
None
