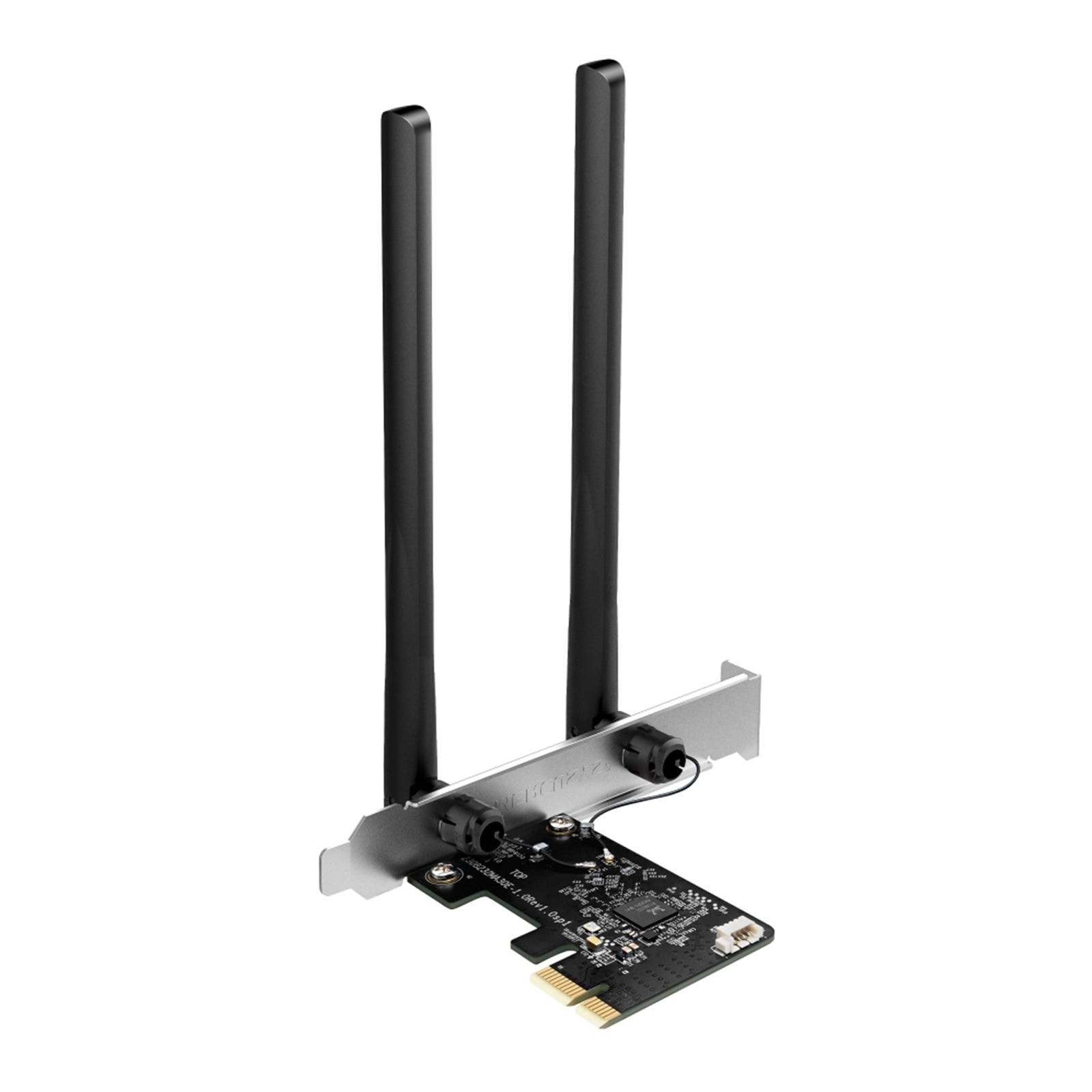

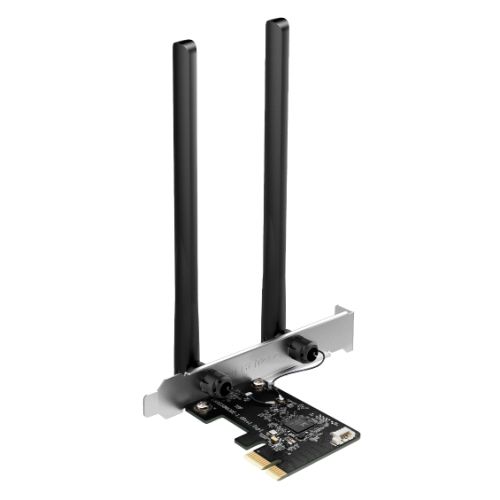

Mercusys MA30E AC1200 WiFi Bluetooth PCIe Adapter

Strong Dual Band Wi-Fi Speed — Speeds up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)

Wider Signal Coverage — Two high-performance antennas

Bluetooth 5.0 — The Bluetooth 5.0 technology achieves faster speeds and broader coverage

MU-MIMO — Simultaneously serve several devices with no more latency or bandwidth congestion

Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety

Backward Compatibility — Full support for 802.11ac/a/b/g/n standards

Windows Compatible — Supported operating system: Windows 10, 11 (64 bit)


Specifications

Wireless

Wireless Standards
IEEE 802.11 a/n/ac 5 GHz
IEEE 802.11 b/g/n 2.4 GHz

Signal Rate
867 Mbps on 5 GHz
300 Mbps on 2.4 GHz

Reception Sensitivity
5 GHz:
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm

Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware

Dimensions (W x D x H)
8.9 x 4.8 x 0.85 in (226.3 x 120.8x 21.5 mm)

Antenna Type
2x Fixed High-Performance Omni-Directional Antennas

Others

Package Contents

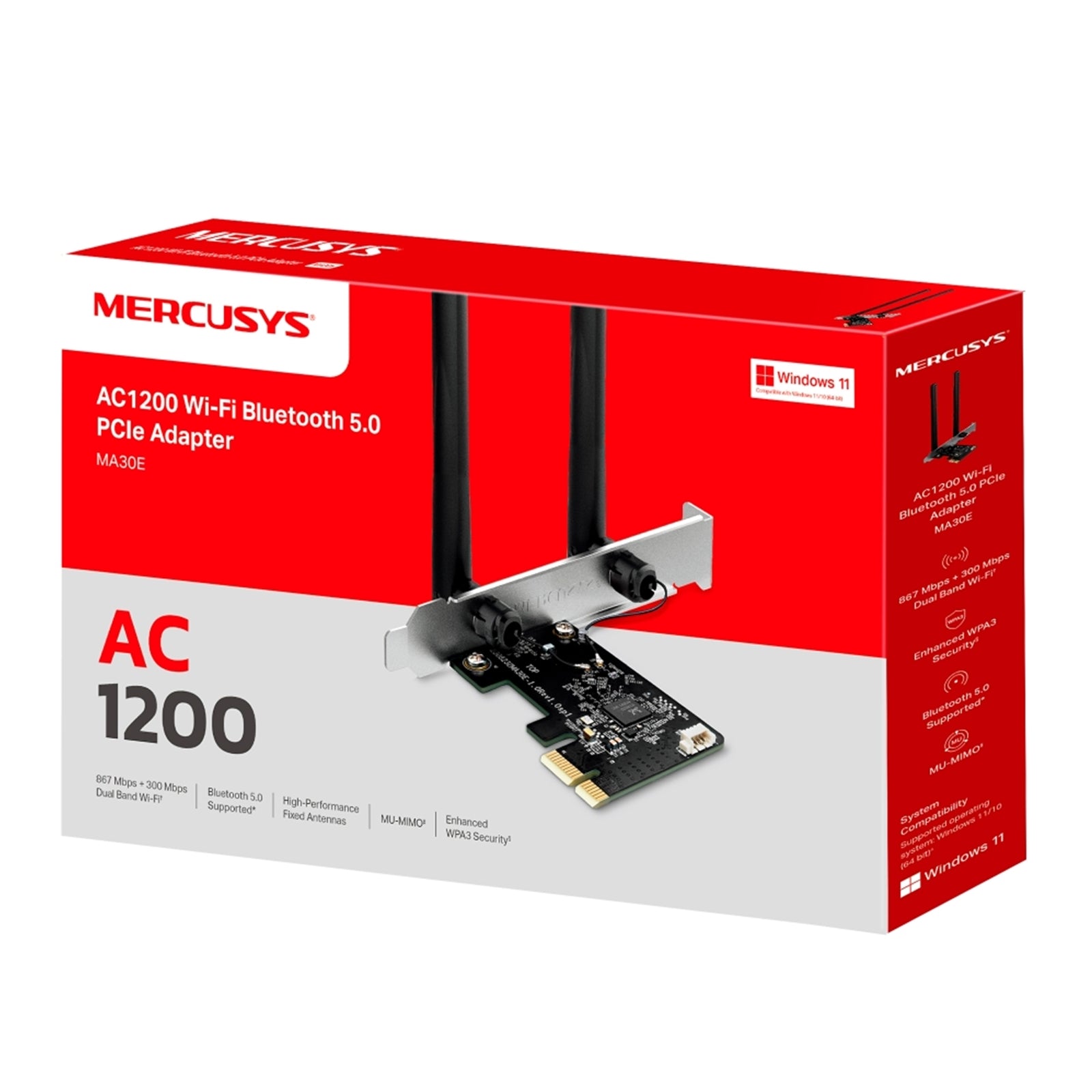

AC1200 Wi-Fi Bluetooth 5.0 PCIe Adapter (MA30E)
Bluetooth Header Cable
Quick Installation Guide
Resource CD
