StarTech.com 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART

StarTech.com 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART

Price
£44.00

Product Information

Description

Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot

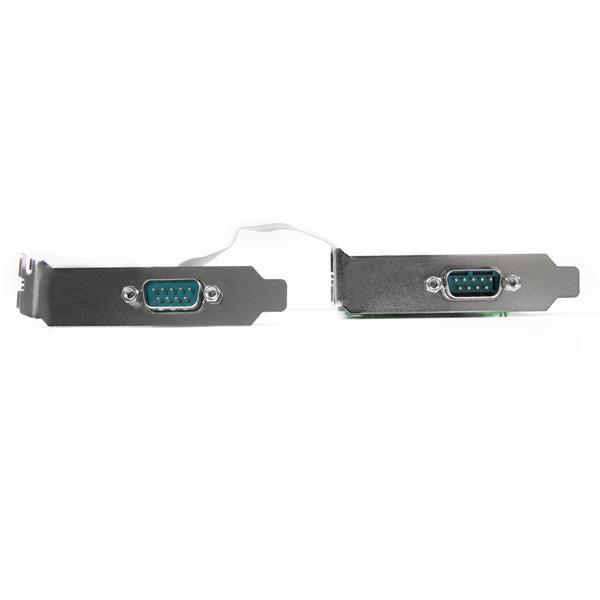

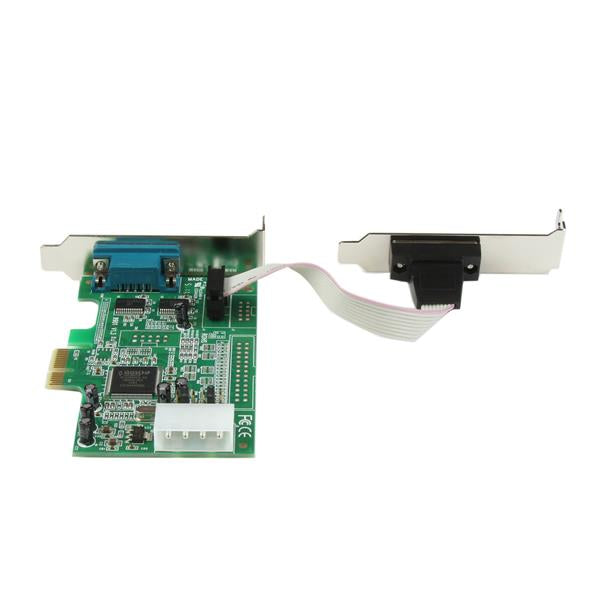

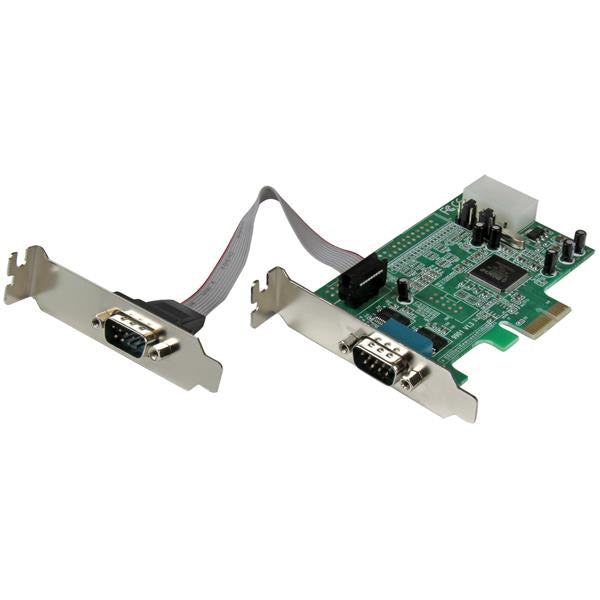

The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.

The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®; and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).

This product is a replacement for our PEX2S552LP card.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Internal Yes
Output interface Serial
Serial interface type RS-232
Serial ports quantity 2
Peripheral (Molex) power connectors (4-pin) 1
Host interface PCIe
Expansion card standard PCIe 1.1
Technical details
Chipset ASIX - MCS9922CV-AA
FIFO (First In, First Out) 128 B
Compliance certificates CE, RoHS
Performance
Baud rate 460.8 Kbit/s
Chipset ASIX - MCS9922CV-AA
FIFO (First In, First Out) 128 B
Product colour Green
Harmonized System (HS) code 84733020
Colour
Product colour Green
Design
Internal Yes
Product colour Green
Features
Baud rate 460.8 Kbit/s
Chipset ASIX - MCS9922CV-AA
FIFO (First In, First Out) 128 B
Flow Control type DTR/DSR, RTS/CTS, XON/XOFF
Harmonized System (HS) code 84733020
Operational conditions
Operating temperature (T-T) -10 - 80 °C
Storage temperature (T-T) -20 - 100 °C
Operating relative humidity (H-H) 5 - 85%
System requirements
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported Yes
Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported DOS, Windows XP Embedded
Weight & dimensions
Width 80 mm
Depth 105 mm
Height 20 mm
Weight 63.5 g
Package width 143 mm
Package depth 173 mm
Package height 32 mm
Package weight 180 g
Packaging data
Mounting brackets included Yes
Manual Yes
Drivers included Yes
Package width 143 mm
Package depth 173 mm
Package height 32 mm
Package weight 180 g
Cables included Serial
Logistics data
Products per master (outer) case 50 pc(s)
Master (outer) case width 363 mm
Master (outer) case length 684 mm
Master (outer) case height 320 mm
Harmonized System (HS) code 84733020

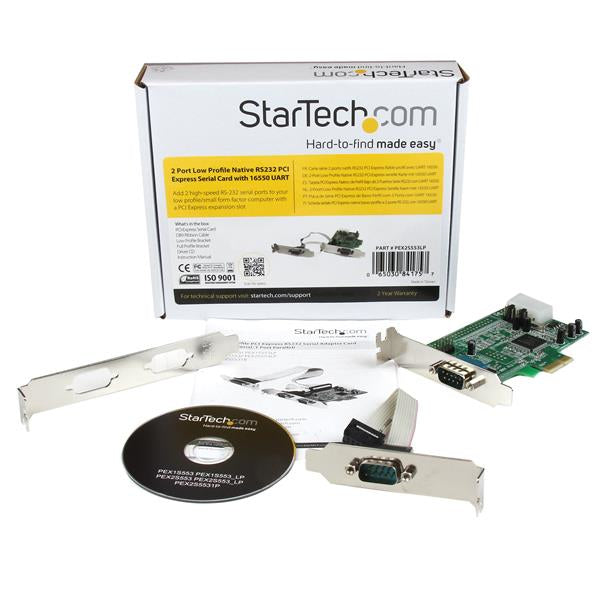

Packaging content
Mounting brackets included Yes
Manual Yes
Drivers included Yes
Cables included Serial
Other features
Chipset ASIX - MCS9922CV-AA
