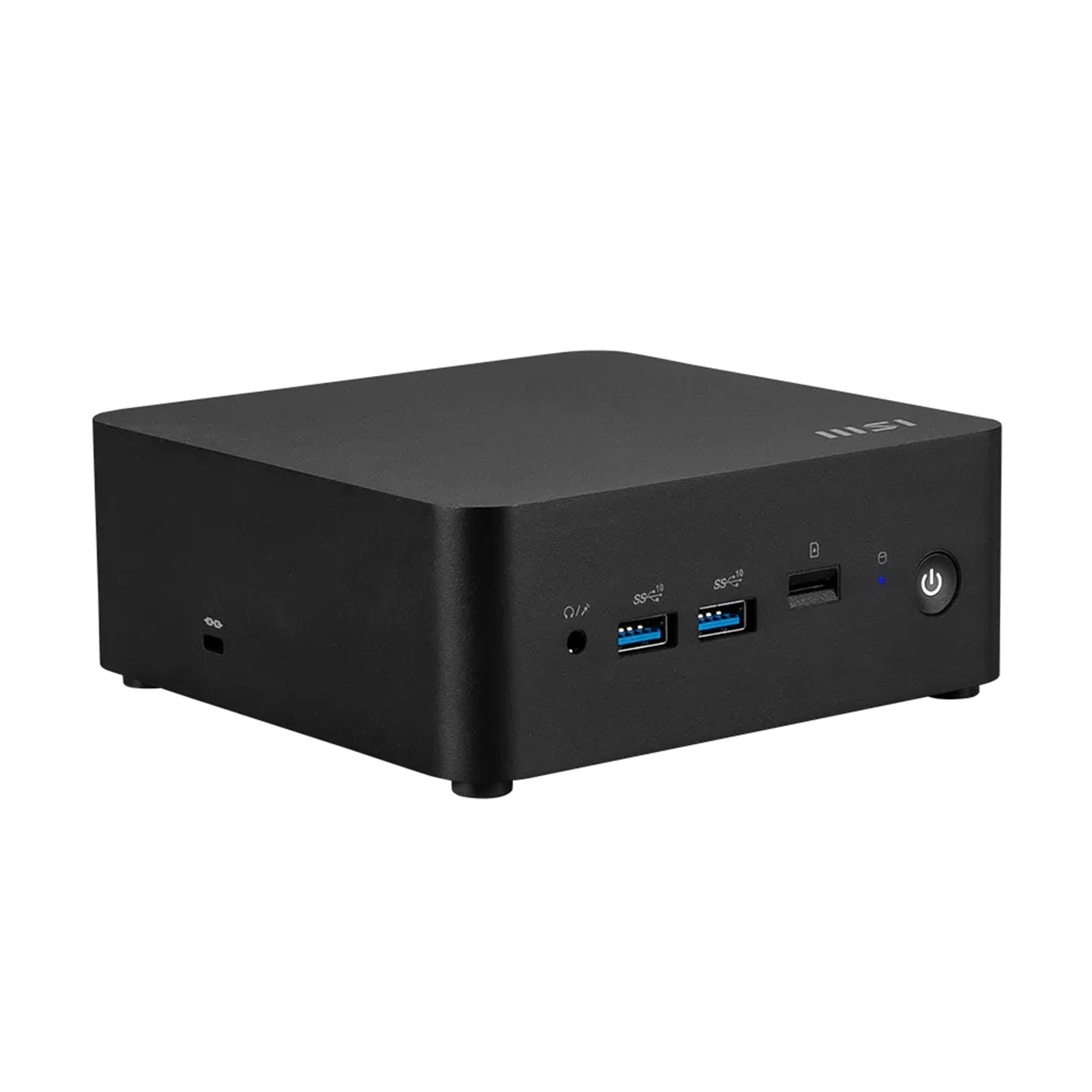

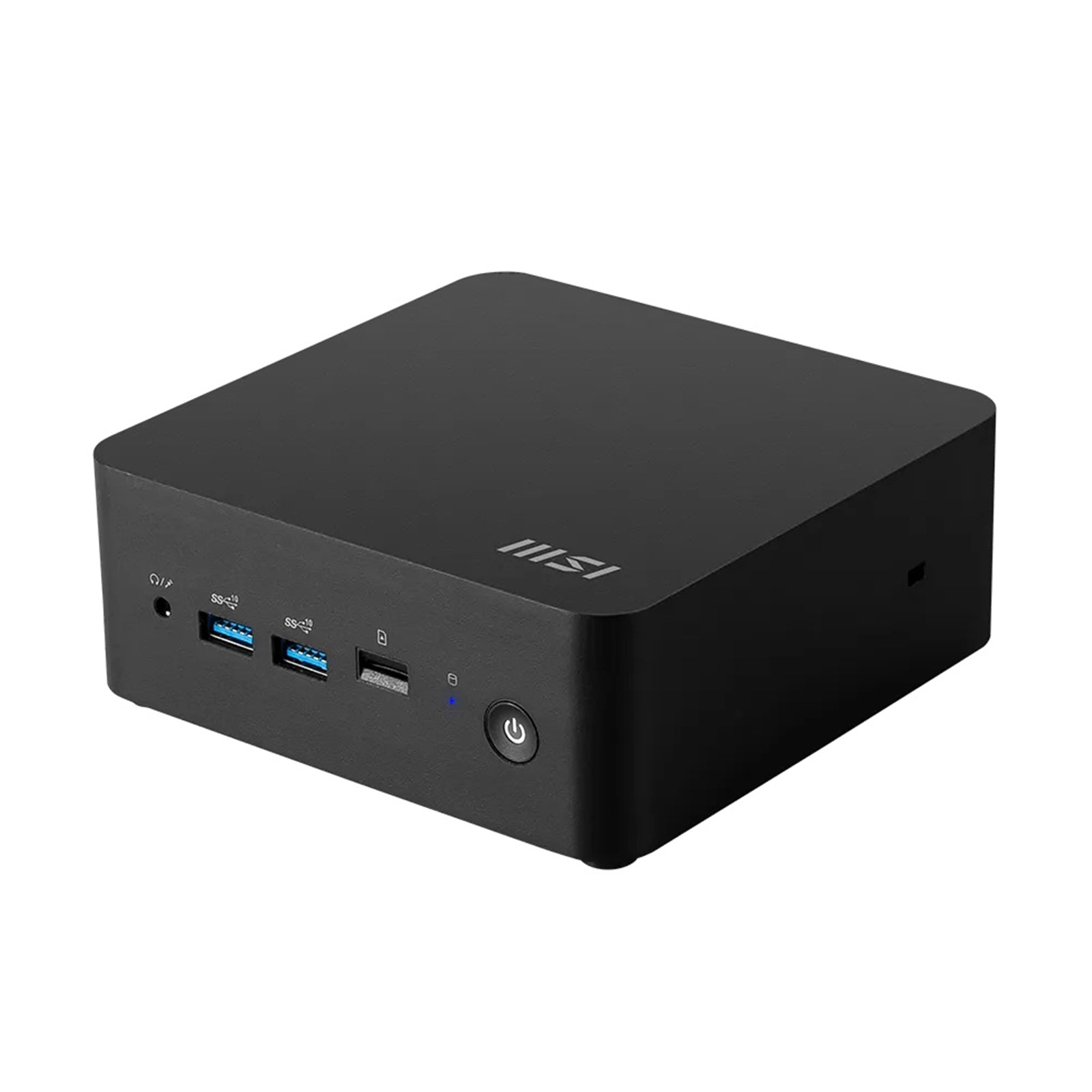

MSI Cubi NUC 1M, Intel Core 5 120U (14th Gen) Barebone, Intel Graphics, 2x DDR5 Slots, Dual ThunderBolt 4, Dual HDMI, Dual LAN, WiFi 6E, BT 5.3 with VESA Mount and Keyboard & Mouse

Mini Yet Powerful
The Cubi NUC is the ideal solution for confined spaces. It confidently handles a myriad of tasks, from basic computing to multimedia streaming and multitasking, leveraging their compact size.

Tailored for Professional Users
Equipped with Intel Core 5 Processor 120U, it provides faster and more reliable performance, which allows users to multitask a variety of applications with ease.

VESA Mountable Design
With its VESA Mountable design, the Cubi NUC Series can be easily installed in any location, providing users with greater flexibility and efficient space management in both home and office settings.

Specification

Model Name
Cubi NUC 1M i5 120U BB

CPU
Intel Core 5 Processor 120U

Cooling System
Air cooling

Chipset
SoC

Graphics
Intel Graphics

System Memory
Max 64GB
2 Slots
SO-DIMM
DDR5 5600 MHz

Storage Slots
2x M.2 slots
1x 2.5" Drive Bays

LAN
2x Intel I226-V

Wireless LAN
INTEL Wi-Fi 6E AX211.NGWG.NV
(Wi-Fi 6E - 802.11ax 2x2+BT)

BLUETOOTH
5.3

VESA Mount
100 x 100 mm

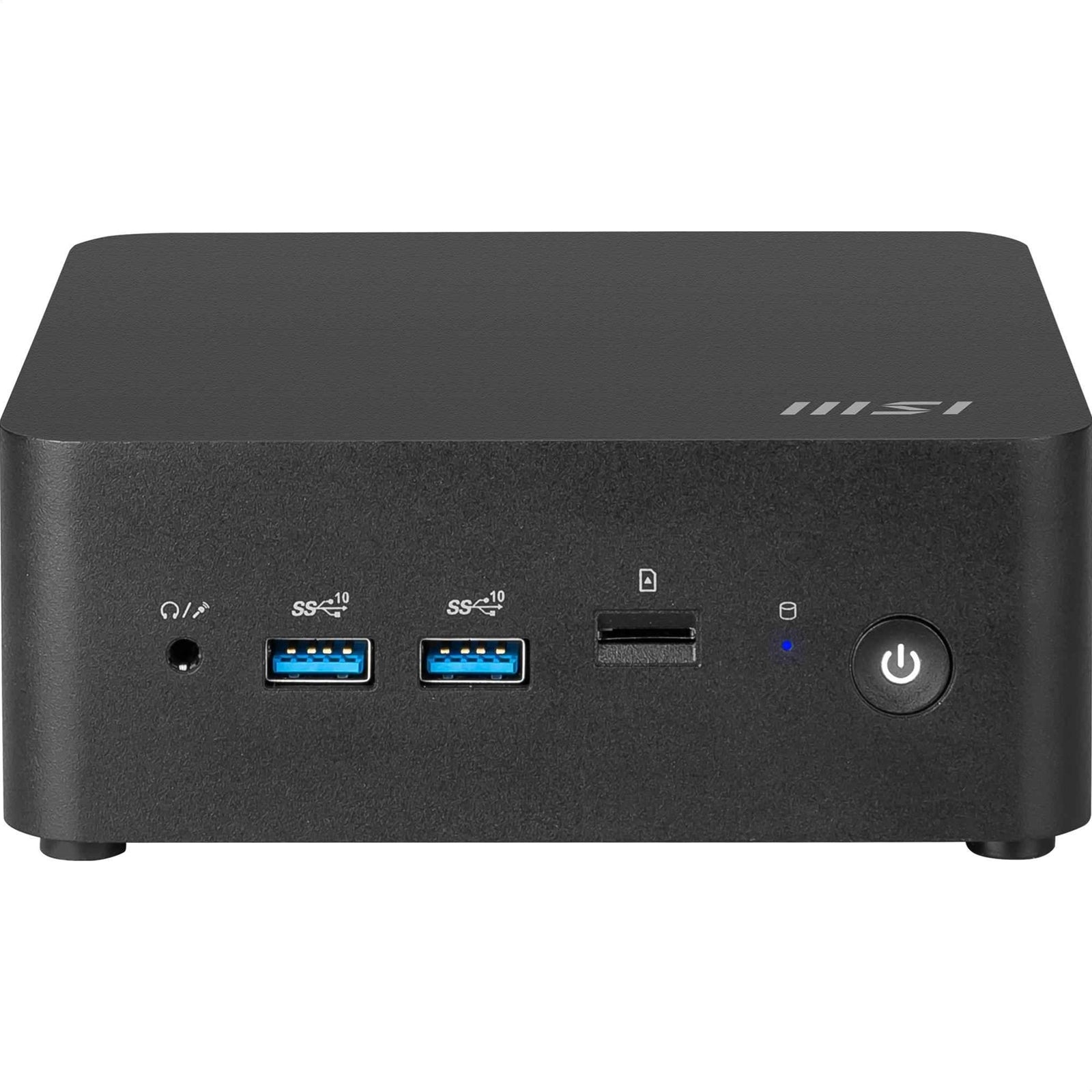

I/O (FRONT)
1x Mic-in / Headphone-out Combo
2x USB 10Gbps Type A
1x Micro-SD card Reader

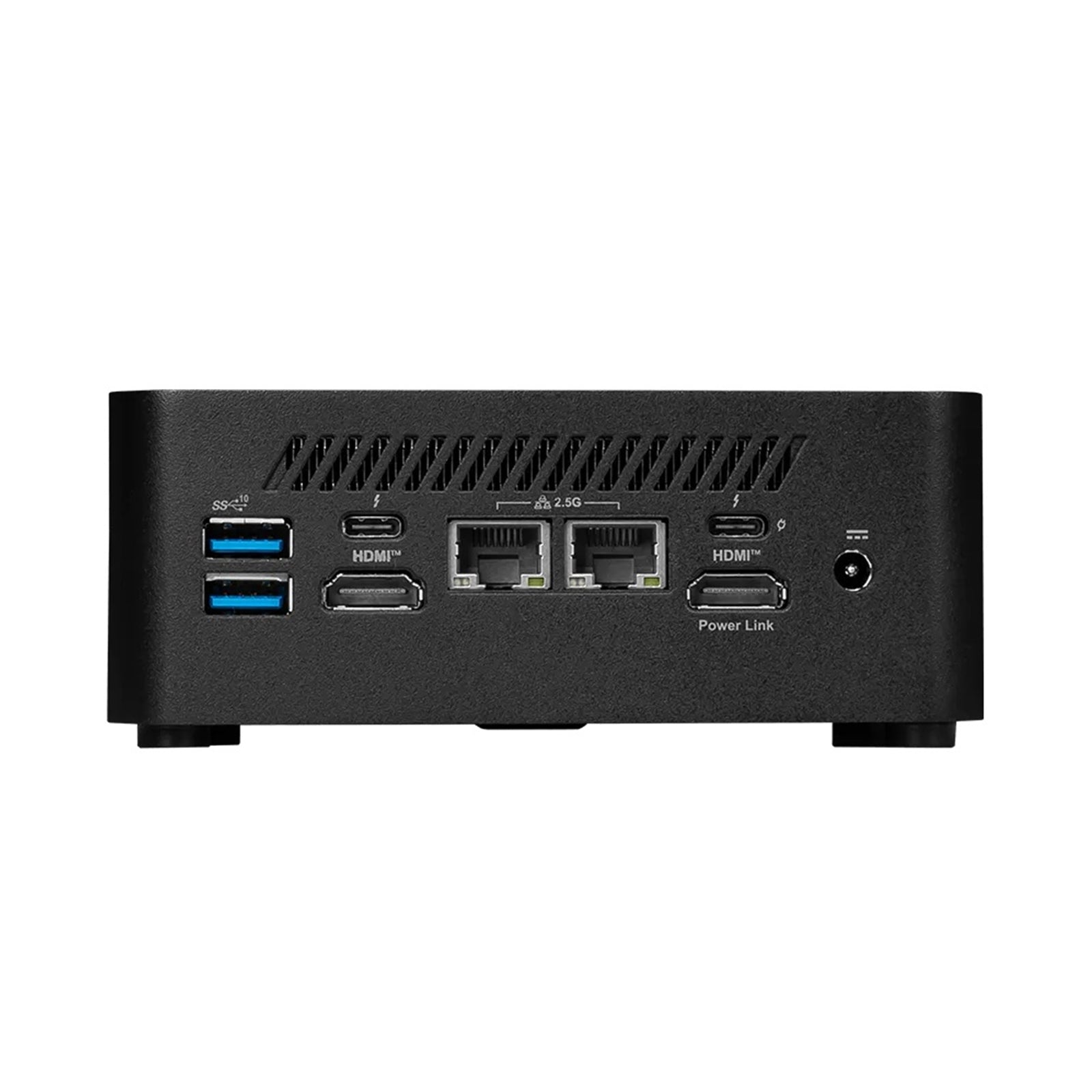

I/O (REAR)
2x USB 10Gbps Type A
1x HDMI out (supports 4K @60Hz as specified in HDMI 2.1)
2x RJ45 LAN (2.5G)
1x HDMI out (supports 4K @60Hz as specified in HDMI 2.1)
which supports the MSI Power Link
1x DC Jack
1x Thunderbolt 4 (DP 1.4 alt-mode up to 4K@60Hz / PD-out
15W)
1x Thunderbolt 4 (DP 1.4 alt-mode up to 4K@60Hz / PD-out
15W / PD-in up to 100W)

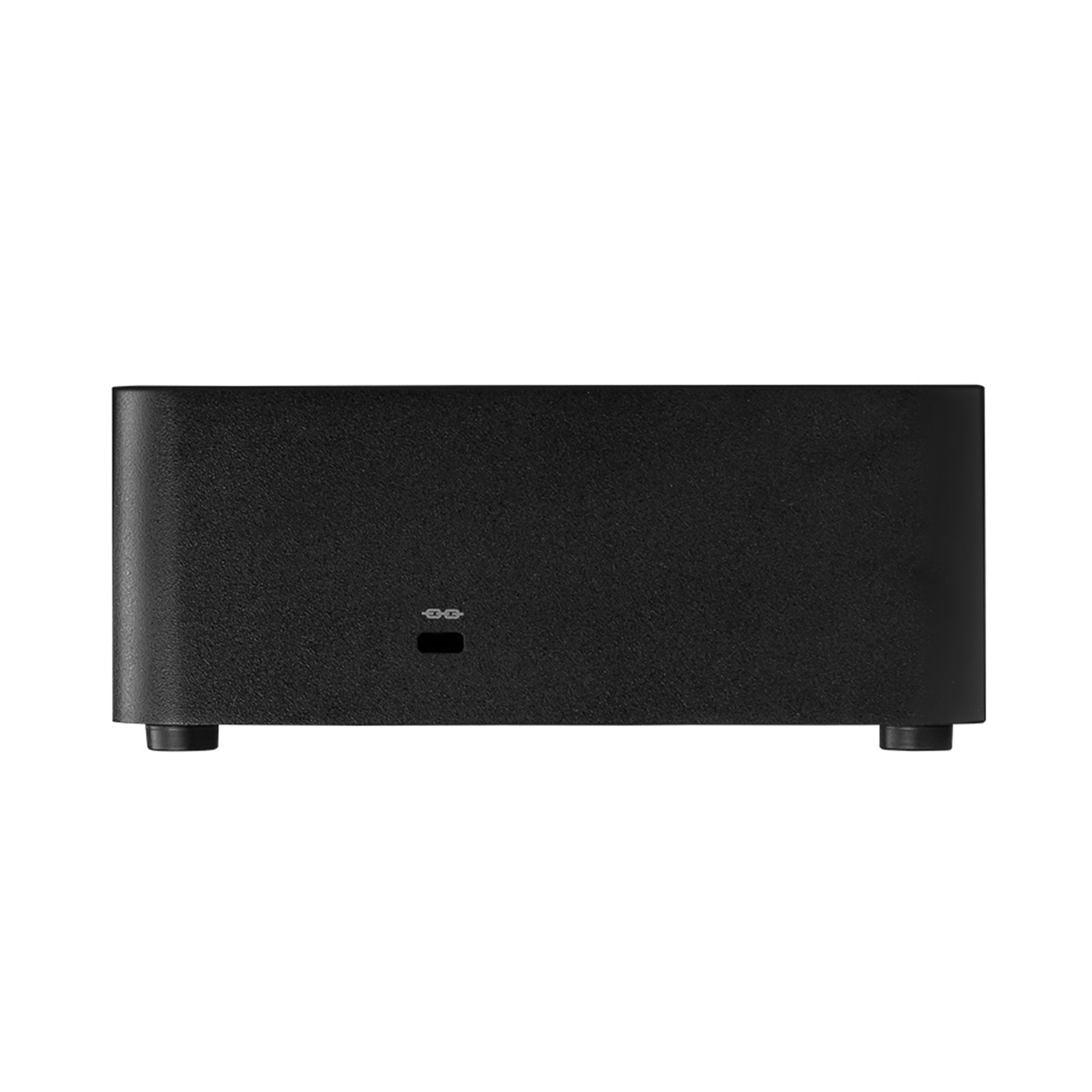

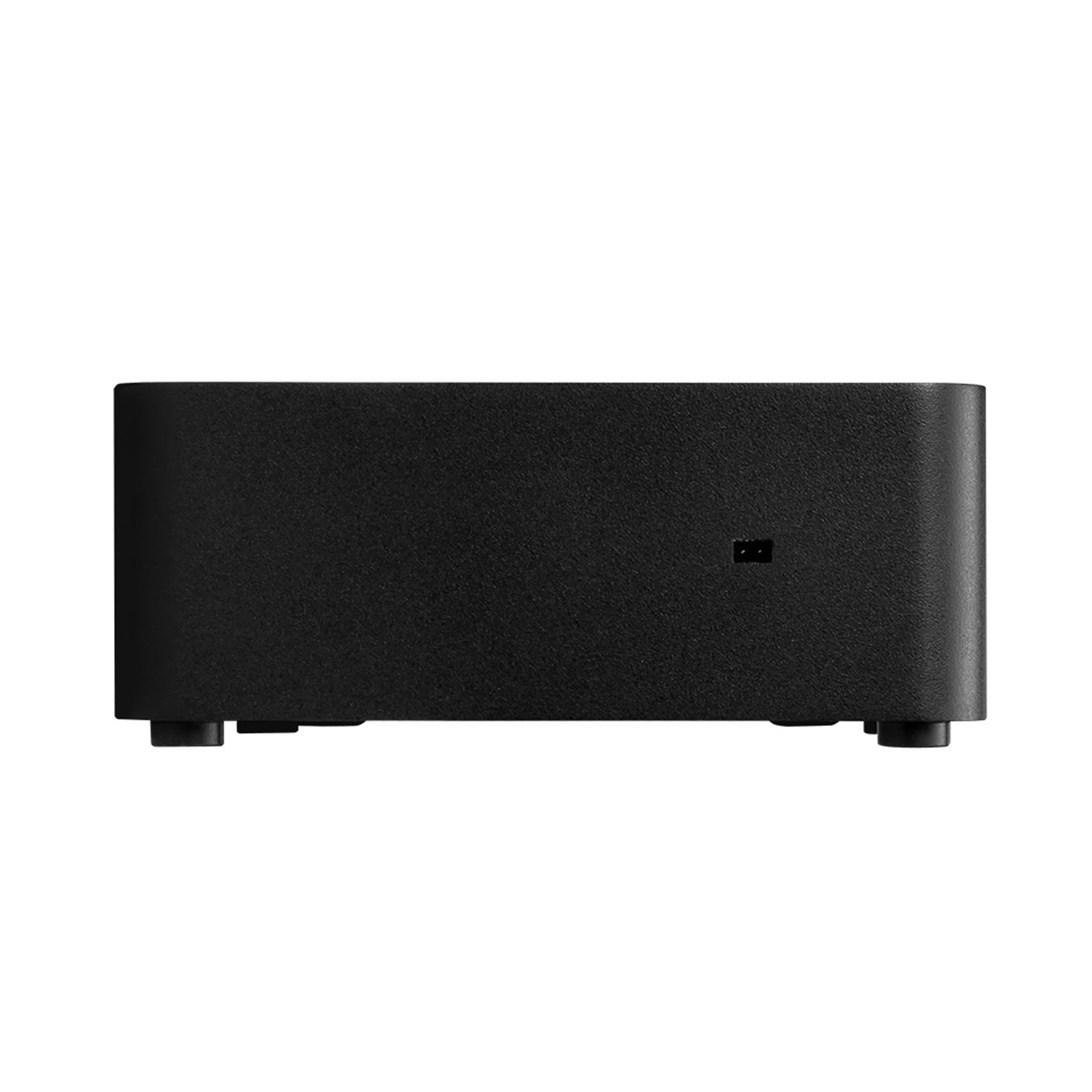

Side
1x External Power Switch Slot
1x Kensington Lock Slot

AC Adapter / PSU
120W

Operation System
None

Dimension (WxDxH)
135.6 x 132.5 x 50.10 (mm)

Net/Gross Weight (kg)
0.625/1.45 kg

Volume
0.826 Liter

Certificates
FCC(Class B)
CB/CE
UL(CUL)
BSMI
VCCI
RCM(C-Tick)

Accessories
1x UK Power Cord
1x AC Adaptor
2x Quick Guide
1x VESA Mount kit
1x Power Switch
