Brand GIGABYTE
Title GIGABYTE B850 EAGLE WIFI7 ICE Motherboard - AMD AM5, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, WIFI 7, 2.5 GbE LAN, USB 3.2 Gen 2
Low stock

GIGABYTE B850 EAGLE WIFI7 ICE Motherboard - AMD AM5, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, WIFI 7, 2.5 GbE LAN, USB 3.2 Gen 2

SKU: B850 EAGLE WF7 ICE
Price
£177.00
Tax included. Shipping calculated at checkout.
Hurry! Only 1 left in stock for delivery or collection!

Available to collect from our Aberdeen Store

Usually ready in 1 hour

View store information
Apple Pay
Google Pay
Klarna
Maestro
Mastercard
PayPal
Shop Pay
Visa
GIGABYTE B850 EAGLE WIFI7 ICE Motherboard - AMD AM5, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, WIFI 7, 2.5 GbE LAN, USB 3.2 Gen 2

GIGABYTE B850 EAGLE WIFI7 ICE Motherboard - AMD AM5, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, WIFI 7, 2.5 GbE LAN, USB 3.2 Gen 2

Price
£177.00

Product Information

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots 3
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Front panel connector Yes
12V power connector Yes
Supported storage drive interfaces M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
mSATA ports quantity 0
TPM connector Yes
Peripheral (Molex) power connectors (4-pin) 1
Number of SATA connectors 0
Number of SATA III connectors 4
Number of SATA II connectors 0
Number of chassis fan connectors 4
Front panel audio connector Yes
EPS power connector (8-pin) Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
RGB LED pin header Yes
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
Number of water pump connectors 2
Number of RGB LED pin headers 4
Technical details
Motherboard chipset family AMD
Motherboard chipset AMD B850
Supported processor sockets Socket AM5
PC health monitoring Fan, Temperature, Voltage, Water cooling
Parallel processing technology support Not supported
On-board graphics card No
HDMI version 1.4
Cooling type Passive
Motherboard form factor ATX
Component for PC
Warranty period 3 year(s)
Audio
Audio output channels 7.1 channels
Performance
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Windows operating systems supported Windows 11 x64
Motherboard chipset family AMD
Motherboard chipset AMD B850
RAID levels 0, 1, 10
Supported processor sockets Socket AM5
PC health monitoring Fan, Temperature, Voltage, Water cooling
Cooling type Passive
Audio output channels 7.1 channels
Motherboard form factor ATX
Component for PC
Processor
Processor manufacturer AMD
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets Socket AM5
Processor socket Socket AM5
Memory
Number of memory slots 4
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Supported memory clock speeds 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Maximum internal memory 256 GB
Unbuffered memory Yes
Supported memory clock speed (max) 8200 MHz
ECC сompatibility Non-ECC
Maximum internal memory per slot 64 GB
Storage controllers
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID levels 0, 1, 10
Number of storage drives supported 7
RAID support Yes
Graphics
Parallel processing technology support Not supported
On-board graphics card No
Maximum resolution 4096 x 2160 pixels
HDCP Yes
DirectX version 12.0

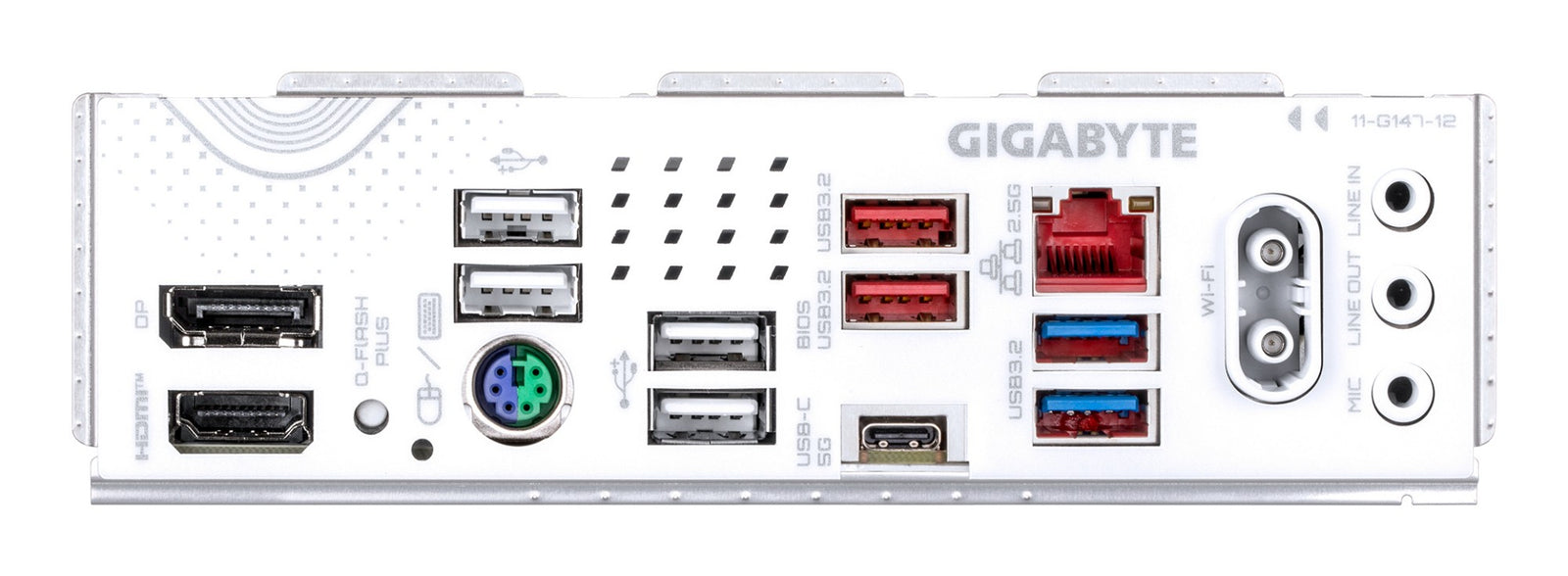

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
DisplayPort version 1.4
USB 2.0 ports quantity 4
WiFi-AP antenna jack 2
VGA (D-Sub) ports quantity 0
PS/2 ports quantity 1
Microphone in Yes
Headphone outputs 1
HDMI version 1.4
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DVI-D ports quantity 0
DisplayPorts quantity 1
Line-in Yes
Network
Ethernet LAN Yes
Wi-Fi Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
LAN controller Realtek RTL8125
Ethernet interface type 2.5 Gigabit Ethernet
Bluetooth Yes
Bluetooth version 5.4
Top Wi-Fi standard Wi-Fi 7 (802.11be)
WLAN controller model Realtek RTL8922AE
Features
Power source type ATX
Windows operating systems supported Windows 11 x64
Motherboard chipset family AMD
Motherboard chipset AMD B850
Supported processor sockets Socket AM5
PC health monitoring Fan, Temperature, Voltage, Water cooling
Cooling type Passive
Audio output channels 7.1 channels
Motherboard form factor ATX
Component for PC
Audio chip Realtek ALC897
Product colour White
Expansion slots
Number of M.2 (M) slots 3
PCI Express x16 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
1st M.2 largest key size 22110
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 22110
2nd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 22110
3rd M.2 highest PCI Express generation 4.0
BIOS
Battery technology Lithium-Manganese Dioxide (LiMnO2)
BIOS type UEFI AMI
Clear CMOS jumper Yes
BIOS memory size 256 Mbit
ACPI version 5.0
System Management BIOS (SMBIOS) version 2.7
Desktop Management Interface (DMI) version 2.7
Power
Power source type ATX
Video
Maximum resolution 4096 x 2160 pixels
HDCP Yes
DirectX version 12.0
Packaging data
Package width 335 mm
Package depth 270 mm
Package height 80 mm
Package weight 1.89 kg
Software
Windows operating systems supported Windows 11 x64
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery weight 3 g
Number of battery cells 1
Lithium weight per battery 0.07 g
Battery type CR2032
Logistics data
Products per shipping (inner) case 1 pc(s)
Weight & dimensions
Height 35 mm
Package width 335 mm
Package depth 270 mm
Package height 80 mm
Package weight 1.89 kg
Weight 1.69 kg
Width 305 mm
Depth 244 mm
Packaging content
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included Yes
Screws included Yes
Antenna included Yes
Other features
Height 35 mm
Package width 335 mm
Package depth 270 mm
Package height 80 mm
Package weight 1.89 kg
mSATA ports quantity 0
Weight 1.69 kg
