Brand KINGSTON
Title Kingston ValueRAM 16GB, DDR4, 3200MHz, CL22, DIMM Memory, OEM (Anti Static Bag)
Low stock

Kingston ValueRAM 16GB, DDR4, 3200MHz, CL22, DIMM Memory, OEM (Anti Static Bag)

SKU: KVR32N22D8/16BK
Price
£44.00
Tax included. Shipping calculated at checkout.
Out of stock
Kingston ValueRAM 16GB, DDR4, 3200MHz, CL22, DIMM Memory, OEM (Anti Static Bag)

Kingston ValueRAM 16GB, DDR4, 3200MHz, CL22, DIMM Memory, OEM (Anti Static Bag)

Price
£44.00

Product Information



16GB 2Rx8 2G x 64-Bit PC4-3200 CL22 288-Pin DIMM

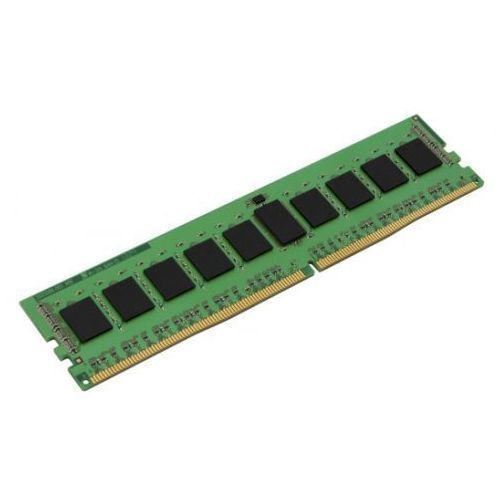

ValueRAM's KVR32N22D8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers

  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Dual-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free



Description

Specification

  • Series: Kingston ValueRAM
  • DDR Type: DDR4
  • Size: 1 x 16GB
  • #Hide#Individual Module Size: 16GB
  • #Hide#Total Capacity: 16GB Total
  • Speed: 3200 MHz
  • Compliance: PC4-25600
  • Pins: 288-pin
  • CAS Latency: CL22
  • Data Integrity Check: Non-ECC
  • Voltage: 1.2V
  • Timings: 22-22-22
  • Heatsink: No
  • #Hide#LED Lighting: No
  • Additional Information: See Overview
  • Package Type: OEM
  • Package Weight: 0.0200 kg
  • Warranty: Lifetime
