Brand Manhattan

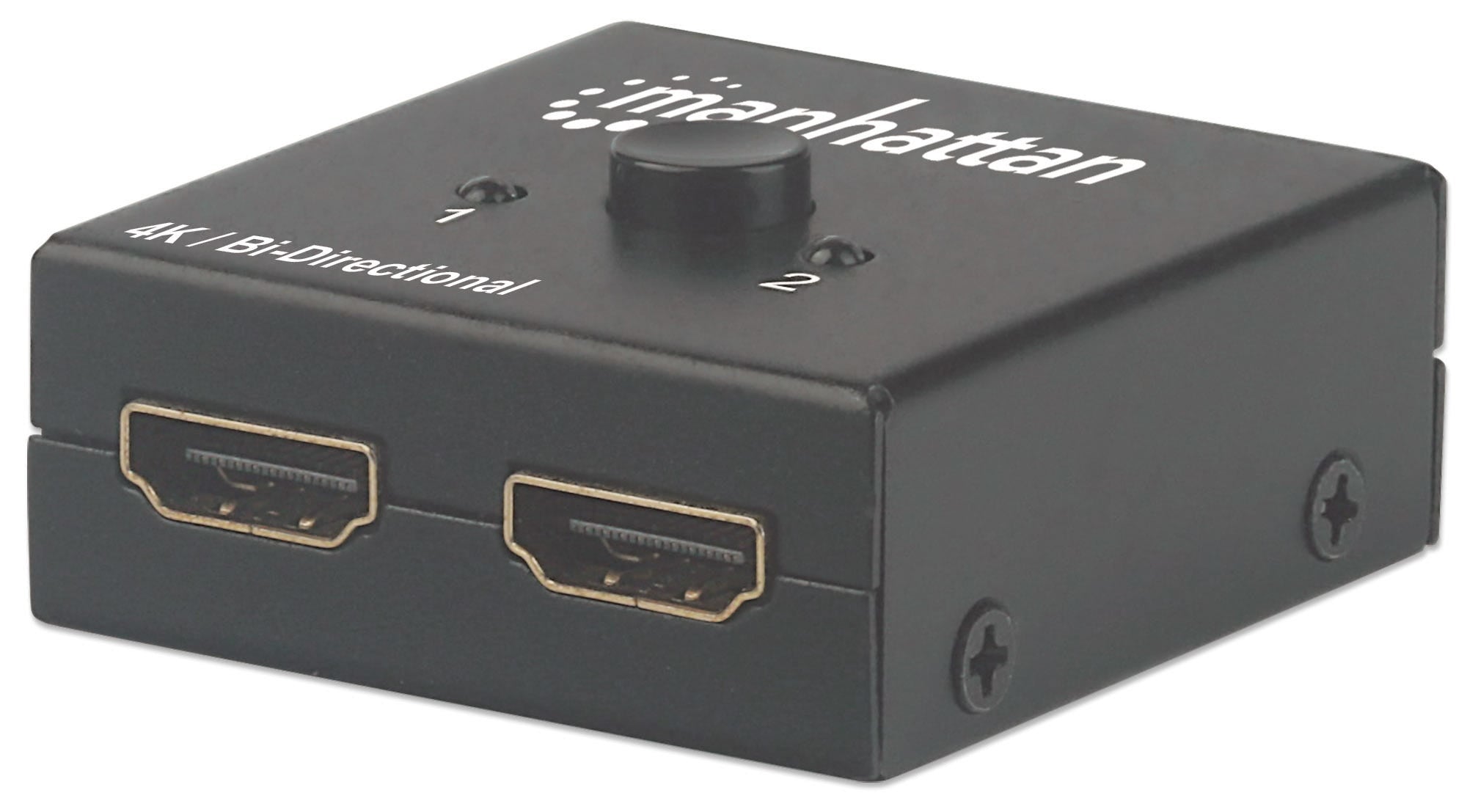

Title Manhattan HDMI Switch 2-Port, 4K@30Hz, Bi-Directional, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays) or Connects x2 HDMI sources to x1 display, Manual Selection, No external power required, 3 Year Warranty
Low stock

Manhattan HDMI Switch 2-Port, 4K@30Hz, Bi-Directional, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays) or Connects x2 HDMI sources to x1 display, Manual Selection, No external power required, 3 Year Warranty

SKU: 207850
Price
£19.00
Tax included. Shipping calculated at checkout.
Out of stock

Share this product

Share Post E-mail
Manhattan HDMI Switch 2-Port, 4K@30Hz, Bi-Directional, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays) or Connects x2 HDMI sources to x1 display, Manual Selection, No external power required, 3 Year Warranty

Manhattan HDMI Switch 2-Port, 4K@30Hz, Bi-Directional, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays) or Connects x2 HDMI sources to x1 display, Manual Selection, No external power required, 3 Year Warranty

£19.00

Product Information

Description

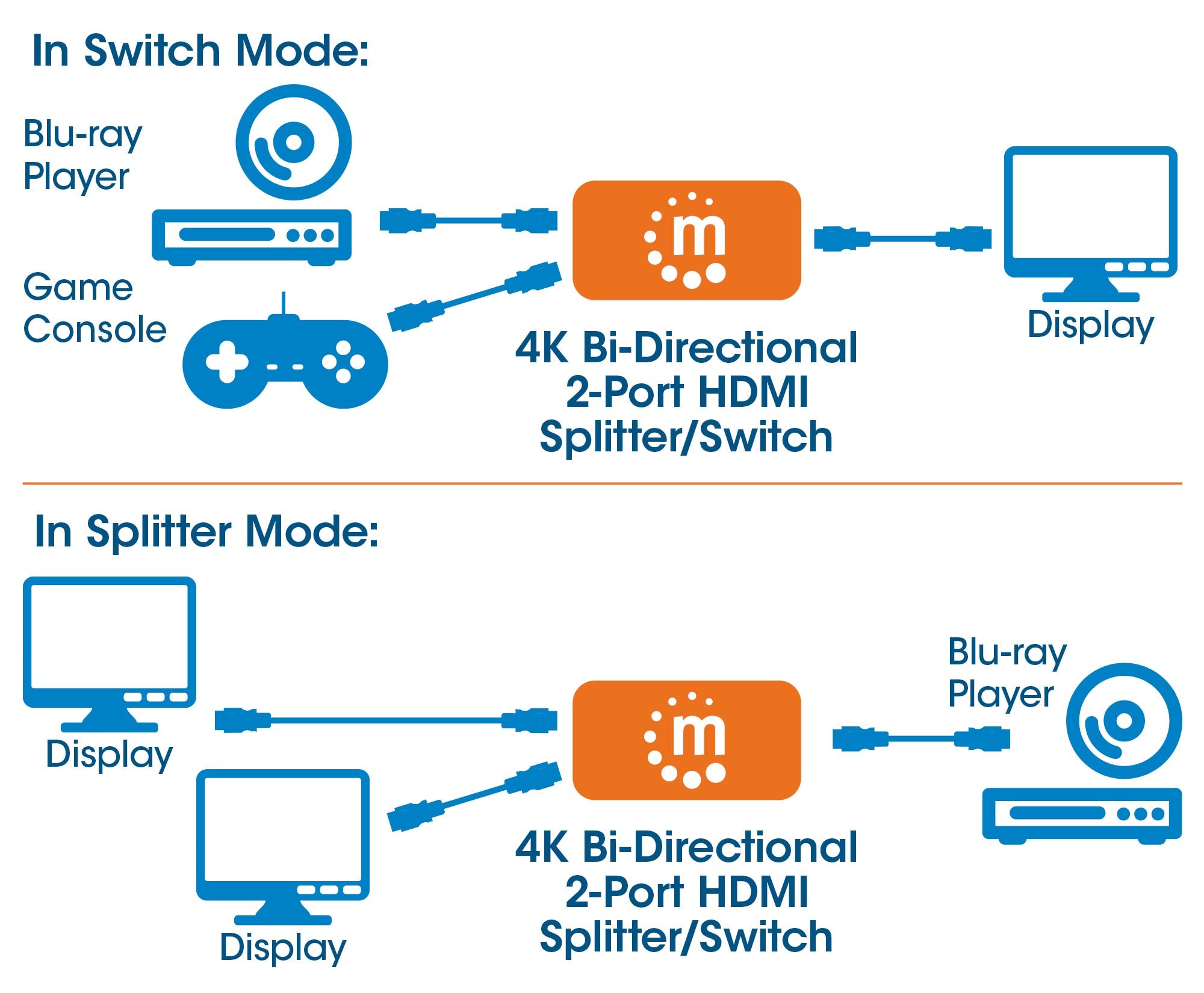

Easily share a single Ultra-High-Definition (UHD) signal over two displays or switch between two sources on one display._x000D_
The Manhattan 4K Bi-Directional 2-Port HDMI Splitter Switch with built-in booster makes it possible to share a 4K HDMI signal from a single UHD source on one of two UHD displays or to connect two UHD sources and switch between them on one UHD display._x000D_
_x000D_
Best Possible Image Quality and Easy Installation_x000D_
Full compliance with HDMI and HDCP 1.4 ensures the Manhattan 4K Bi-Directional 2-Port HDMI Splitter Switch provides nothing short of high-quality performance and reliability. It delivers cinematic 4K resolution and supports 3D video, Deep colour as well as LPCM, DTS and Dolby TrueHD audio. Simply connect the HDMI cables (not included) to the device and create your desired setup. Power is drawn from the HDMI sources to support the signal(s). No software/hardware configuration or complicated settings are required to complete this cost-effective 4K solution.

Specifications

Ports & interfaces
Video port type HDMI
HDMI version 1.4
HDMI ports quantity 3
Number of HDMI outputs 2
HDMI in 1
Features
Audio output channels 7.1 channels
HD type 4K Ultra HD
Connector contacts plating Gold
3D Yes
Product colour Black
Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Plug and Play Yes
Maximum resolution 4096 x 2160 pixels
Material Metal
LED indicators Yes
HDCP Yes
Bandwidth 340 MHz
Bandwidth 10.2 Gbit/s
Audio decoders DTS-HD Master Audio, Dolby TrueHD
Certificates
Certification CE, FCC
Weight & dimensions
Width 52 mm
Height 20 mm
Depth 49 mm
Weight 100 g
Technical details
Audio output channels 7.1 channels
HD type 4K Ultra HD
Connector contacts plating Gold
3D Yes
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 0 - 96%
Width 52 mm
Height 20 mm
Depth 49 mm
Product colour Black
Video port type HDMI
Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Plug and Play Yes
Maximum resolution 4096 x 2160 pixels
Material Metal
LED indicators Yes
HDMI version 1.4
HDMI ports quantity 3
HDCP Yes
Bandwidth 340 MHz
Bandwidth 10.2 Gbit/s
Audio decoders DTS-HD Master Audio, Dolby TrueHD
Harmonized System (HS) code 85176990
Compliance certificates RoHS
Packaging content
Quick start guide Yes
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 0 - 96%
Logistics data
Harmonized System (HS) code 85176990
Manhattan HDMI Switch 2-Port, 4K@30Hz, Bi-Directional, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays) or Connects x2 HDMI sources to x1 display, Manual Selection, No external power required, 3 Year Warranty
Manhattan HDMI Switch 2-Port, 4K@30Hz, Bi-Directional, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays) or Connects x2 HDMI sources to x1 display, Manual Selection, No external power required, 3 Year Warranty
Manhattan HDMI Switch 2-Port, 4K@30Hz, Bi-Directional, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays) or Connects x2 HDMI sources to x1 display, Manual Selection, No external power required, 3 Year Warranty
Manhattan HDMI Switch 2-Port, 4K@30Hz, Bi-Directional, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays) or Connects x2 HDMI sources to x1 display, Manual Selection, No external power required, 3 Year Warranty
