Brand MSI

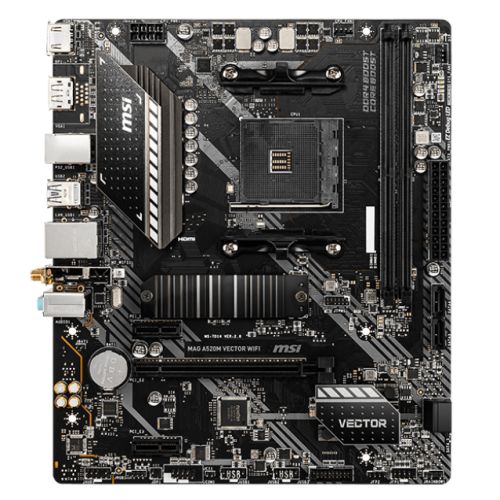

Title MSI MAG A520M VECTOR WIFI, AMD A520, AM4, Micro ATX, 2 DDR4, HDMI, DP, AC Wi-Fi, GB LAN, 1x M.2
Low stock

MSI MAG A520M VECTOR WIFI, AMD A520, AM4, Micro ATX, 2 DDR4, HDMI, DP, AC Wi-Fi, GB LAN, 1x M.2

SKU: MAG A520M VECTOR WIFI
Price
£78.00
Tax included. Shipping calculated at checkout.
Out of stock

Share this product

Share Post E-mail
MSI MAG A520M VECTOR WIFI, AMD A520, AM4, Micro ATX, 2 DDR4, HDMI, DP, AC Wi-Fi, GB LAN, 1x M.2

MSI MAG A520M VECTOR WIFI, AMD A520, AM4, Micro ATX, 2 DDR4, HDMI, DP, AC Wi-Fi, GB LAN, 1x M.2

£78.00

Product Information



The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability.

Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Extended Heatsink Design: Leading heatsink design, extended for maximum cooling and performance
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface





Premium Hardware Design

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.





Keep Out Zone

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean, preventing any component contact or damage to the motherboard.





Enhanced Performance

High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.





Fast and Future-Ready Storage

MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.





Connectivity

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.





Next-Gen Intel® Wi-Fi AC & Bluetooth

This next-generation Intel® Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation.




Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: AMD AM4
  • Chipset: AMD A520
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
    Supports ECC UDIMM memory (non-ECC mode)
    Supports un-buffered memory
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 4600(OC)
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics Processor
    Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 3.0 x16
    2 x PCIe 3.0x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) - SATA & PCIe 3.0 x4
  • RAID: "RAID 0, 1, 10 for SATA storage devices"
  • Wireless: "Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps.
    Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2"
  • LAN: GB LAN
  • Audio: 7.1-Channel High Definition Audio
  • USB Ports Supported: Rear:
    4 x USB 5Gbps Type-A
    2 x USB 2.0

    Front:
    2 x USB 5Gbps Type-A
    4 x USB 2.0
  • Back Panel I/O Ports: 4 x USB 5Gbps Type-A
    2 x USB 2.0
    1 x DisplayPort
    1 x HDMI 2.1
    1 x PS/2
    1 x RJ-45
    1 x Audio Line In
    1 x Audio Line Out
    1 x Microphone In
    2 x SMA Antenna
  • Internal I/O Connectors: 1 x 24-pin ATX
    1 x 8-pin ATX 12V
    4 x SATA 6Gb/s
    1 x Serial port
    1 x M.2 (M-Key)
    1 x USB 3.2 Gen 1 5Gbps
    2 x USB 2.0
    1 x 4-pin CPU fan
    1 x 4-pin system fan
    1 x Front panel audio
    2 x System panel
    1 x Chassis Intrusion
  • .: 1 x 4-pin RGB LED
    1 x 3-pin RAINBOW LED
    1 x TPM module
    1 x Clear CMOS jumper
  • Accessories: User Manual
    Quick Installation Guide
    Wi-Fi Antenna
    2 x SATA Cables
    MSI Case Badge
    Driver DVD
    I/O Shield
    MSI Product Catalog
    Product Registration Card
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: To be confirmed
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
