Brand TP-LINK

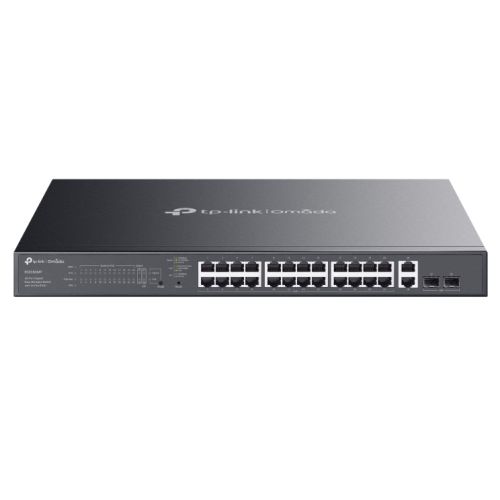

Title TP-LINK (ES228GMP) Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+, 2x GB SFP Ports, 384W Power Budget, Rackmountable

TP-LINK (ES228GMP) Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+, 2x GB SFP Ports, 384W Power Budget, Rackmountable

SKU: ES228GMP
Price
£284.00
Tax included. Shipping calculated at checkout.
In stock online and ready for delivery or collection

Currently out of stock at our Aberdeen Store
Apple Pay
Google Pay
Klarna
Maestro
Mastercard
PayPal
Shop Pay
Visa

Share this product

Share Post E-mail
TP-LINK (ES228GMP) Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+, 2x GB SFP Ports, 384W Power Budget, Rackmountable

TP-LINK (ES228GMP) Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+, 2x GB SFP Ports, 384W Power Budget, Rackmountable

£284.00

Product Information



Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

  • 26x 10/100/1000Mbps RJ45 ports (24x 802.3af/at-compliant PoE+)
  • 2x Gigabit SFP slots
  • 384W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Durable metal casing and rack-mountable design





Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
  • Lifetime Free Cloud without Any Additional Fees
  • Exists Entirely in the Cloud. No Hardware or Software Controller Needed
  • Cloud Centralized Management for Multiple Sites
  • Access Anytime via Omada App or Web
  • Easy Setup, Use, and Maintenance
  • Unlimited Management Scale
  • Zero-Touch Provisioning (ZTP) without Unboxing
  • Seamlessly Upgrade to Omada Cloud Standard with a Subscription





Abundant Functions for Reliable Surveillance Networking
  • Transmission Distance: up to 250 m
  • Priority Video Quality Guaranteed
  • Secure Traffic Separation via Port Isolation
  • PoE Auto Recovery





Multiple Application Scenarios
  • Surveillance - Works with IP Cameras
  • Wi-Fi Coverage - Works with Access Points
  • Wired Connections - Works with Non-PoE Devices such as PCs and Printers



Description

Specification

  • Rackmountable: Yes
  • Managed: Yes
  • Number of Ports: 28
  • Max RJ45 Transfer Rate: 10/100/1000 Mbps
  • #Hide#Max SFP Transfer Rate: GB SFP
  • Interface(s): 24 x10/100/1000 Mbps PoE+ RJ45 (802.3af PoE and 802.3at PoE+)
    2 x10/100/1000 Mbps RJ45
    2 x Gigabit SFP
    Auto-Negotiation/Auto MDI/MDIX
  • PoE Ports (RJ45): "Standard: 802.3af PoE and 802.3at PoE+ compliant
    PoE Ports: 24 ports
    PoE Budget: 384W available for all PoE+ ports, 30W max per port
    Fast PoE & Perpetual PoE
    PoE Auto Recovery
    Up to 250m PoE transmission distance"
  • Switching Capacity: 56 Gbps
  • Power Supply: "100–240V AC, 50/60Hz"
  • Dimensions: 440 x 330 x 44 mm
  • Transfer Method: Store-And-Forward
  • Mac Address Table: 8K
  • Packet Forwarding Rate: 41.67 Mpps
    Packet Buffer Memory: 4 Mbit
  • Jumbo Frame: 15 KB
  • Additional Features: Durable Metal Casing
    Fan Quantity: 2
    Physical Security Lock
    Surge Protection: 6kV
    Supports plug-and-play
  • Quality of Service: Port-based/802.1p/DSCP QoS
    8 Priority Queues
    Priority Schedule Mode
    Queue Weight Config
    Bandwidth Control
    Storm Control
  • Layer Features: L2 Features:
    Static Link Aggregation
    Loop Prevention / Loopback Detection
    802.3x Flow Control
    Mirroring
    Port Statistics
    802.1ab LLDP

    L2 Multicast:
    IGMP Snooping
  • VLAN: MTU VLAN
    Port-Based VLAN
    802.1Q Tag VLAN
  • Management: "Omada App:
    Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

    Centralized Management:
    Omada Cloud-Based Controller
    Omada Hardware Controller
    Omada Software Controller

    Cloud Access:
    Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

    Zero-Touch Provisioning:
    Requires the use of Omada Cloud-Based Controller"
  • .:
    Management Features:
    Web-based GUI
    DHCP Client
    Cable Diagnostics
    Automatic Device Discovery
    Batch Configuration
    Batch Firmware Upgrading
    Unified Configuration
  • Environment: Operating Temperature: -5°C ~ 45°C
    Storage Temperature: -40°C ~70°C
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Package Contents: ES228GMP
    Power Cord
    Mounting Brackets
    Rubber Feet
    Screws
    Installation Guide
  • Package Type: Retail
  • Package Weight: 5.9200 kg
  • Warranty: Limited Lifetime
  • #Hide#POE: Yes
