Brand GIGABYTE
Title GIGABYTE B550M AORUS ELITE AX Motherboard - Supports AMD Ryzen 5000 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2
Low stock

GIGABYTE B550M AORUS ELITE AX Motherboard - Supports AMD Ryzen 5000 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2

SKU: B550M AORUS ELITE AX
Price
£105.00
Tax included. Shipping calculated at checkout.
Out of stock
GIGABYTE B550M AORUS ELITE AX Motherboard - Supports AMD Ryzen 5000 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2

Stock Notification

Get notified when this product is available again

Share this product

Share Post E-mail
GIGABYTE B550M AORUS ELITE AX Motherboard - Supports AMD Ryzen 5000 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2

GIGABYTE B550M AORUS ELITE AX Motherboard - Supports AMD Ryzen 5000 CPUs, 5+3 Phases Pure Digital VRM, up to 4733MHz DDR5 (OC), 1xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2

£105.00

Product Information

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Internal I/O
Number of M.2 (M) slots 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Front panel connector Yes
12V power connector Yes
Supported storage drive interfaces SATA III
USB 2.0 connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
TPM connector Yes
Serial port headers 1
Number of SATA III connectors 4
Number of SATA II connectors 0
Number of Parallel ATA connectors 0
Number of chassis fan connectors 2
Front panel audio connector Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
RGB LED pin header Yes
Technical details
Motherboard chipset family AMD
Motherboard chipset AMD B550
Supported processor sockets Socket AM4
Serial port headers 1
PC health monitoring Fan, Temperature, Voltage
HDMI version 2.1
Motherboard form factor micro ATX
Component for PC
Maximum internal memory supported by processor 128 GB
Warranty period 3 year(s)
Audio
Audio output channels 7.1 channels
Performance
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family AMD
Motherboard chipset AMD B550
RAID levels 0, 1, 10
Supported processor sockets Socket AM4
PC health monitoring Fan, Temperature, Voltage
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Component for PC
Processor
Processor manufacturer AMD
Maximum internal memory supported by processor 128 GB
Compatible processor series AMD Ryzen 3000 Series
Supported processor sockets Socket AM4
Maximum number of SMP processors 1
Processor socket Socket AM4
Memory
Number of memory slots 4
Memory slots type DIMM
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Supported memory clock speeds 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4733 MHz
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Maximum internal memory 128 GB
Unbuffered memory Yes
Supported memory clock speed (max) 4733 MHz
ECC сompatibility ECC & Non-ECC
Storage controllers
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Supported storage drive interfaces SATA III
RAID levels 0, 1, 10
Number of storage drives supported 6
Graphics
Maximum resolution 4096 x 2160 pixels
HDCP Yes
DirectX version 12.0

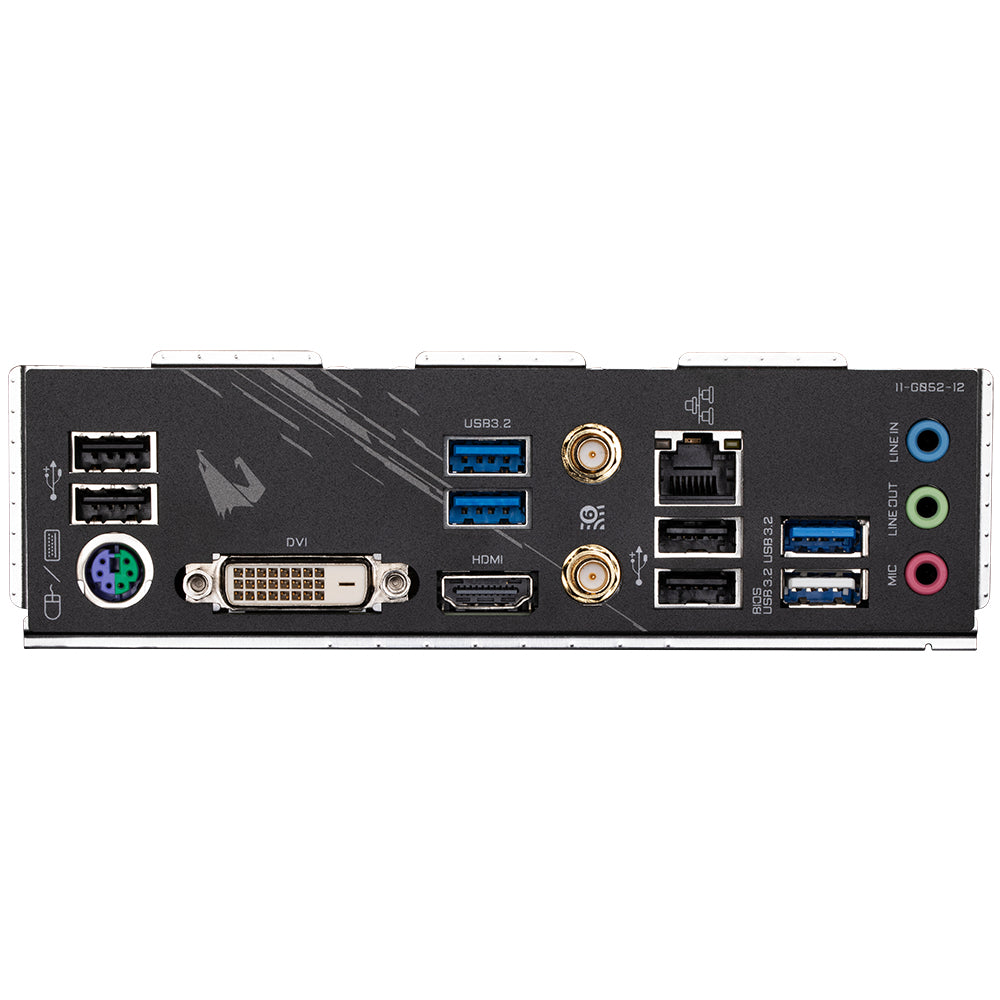

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
USB connector type USB Type-A, USB Type-C
USB 2.0 ports quantity 4
eSATA ports quantity 0
VGA (D-Sub) ports quantity 0
PS/2 ports quantity 1
Firewire (IEEE 1394) ports 0
HDMI version 2.1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DVI-D ports quantity 1
Network
Ethernet LAN Yes
Wi-Fi Yes
Wi-Fi standards Wi-Fi 6E (802.11ax)
Ethernet interface type Gigabit Ethernet
Bluetooth Yes
Bluetooth version 5.3
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
WLAN controller model Realtek RTL8852CE
Features
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family AMD
Motherboard chipset AMD B550
Supported processor sockets Socket AM4
PC health monitoring Fan, Temperature, Voltage
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Component for PC
Product colour Brown
Expansion slots
Number of M.2 (M) slots 2
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 slots 1
PCI Express x16 (Gen 4.x) slots 1
BIOS
Battery technology Lithium-Manganese Dioxide (LiMnO2)
BIOS type UEFI AMI
Clear CMOS jumper Yes
BIOS memory size 128 Mbit
ACPI version 5.0
System Management BIOS (SMBIOS) version 2.7
Desktop Management Interface (DMI) version 2.7
Video
Maximum resolution 4096 x 2160 pixels
HDCP Yes
DirectX version 12.0
Packaging data
Package width 265 mm
Package depth 265 mm
Package height 65 mm
Package weight 1.27 kg
Software
Windows operating systems supported Windows 10 x64, Windows 11 x64
Bundled software Norton Internet Security (OEM) Realtek 8118 Gaming LAN Bandwidth Control Utility
Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery weight 3 g
Number of battery cells 1
Lithium weight per battery 0.07 g
Battery type CR2032
Logistics data
Products per shipping (inner) case 1 pc(s)
Country of origin China
Weight & dimensions
Height 35 mm
Package width 265 mm
Package depth 265 mm
Package height 65 mm
Package weight 1.27 kg
Width 244 mm
Depth 244 mm
Packaging content
Cables included SATA
Bundled software Norton Internet Security (OEM) Realtek 8118 Gaming LAN Bandwidth Control Utility
Batteries included Yes
Other features
Height 35 mm
Package width 265 mm
Package depth 265 mm
Package height 65 mm
Package weight 1.27 kg
