Product Information

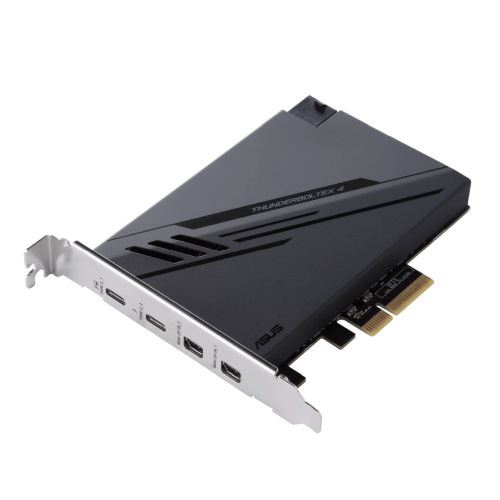

Asus ThunderboltEX 4 expansion card, dual Thunderbolt 4 (USB-C) ports, DisplayPort 1.4, PCIe 3.0 x4 interface
- Intel-certified Thunderbolt 4 add-on card
- 40 Gbps bi-directional bandwidth for superfast data transfers and video output
- Dual Thunderbolt 4 ports (USB-C), with support for up to five Thunderbolt devices in a daisy chain
- DisplayPort 1.4 for 8K Ultra HD support
Enable blisteringly fast speeds and any-way-up connectivity
ASUS ThunderboltEX 4 is a Thunderbolt 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4 device compatibility, and DisplayPort 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C charging for laptops.
Daisy-Chain up to 5
Thunderbolt devices per port
3 devices + 2 Thunderbolt monitors
Daisy-Chain up to 5
Thunderbolt devices per port
4 devices + 1 Thunderbolt monitor
Description
Specification
- Type: Thunderbolt Card
-
Ports: "2 x USB Type-C (Support Thunderbolt 4 & USB 4)
- Type-C_1 up to 20V/5A, 100W quick charge, Type-C_2 up to 9V/3A, 27W
2 x mini DisplayPort IN ports" - Transfer Rate(s): up to 40Gbps for Thunderbolt devices
- Host Interface(s): PCIe 3.0 x4
-
Internal Interfaces: 1 x 6-pin PCIe power connector for quick charge function
1 x USB 2.0 header
1 x Thunderbolt header - Additional Features: See Overview
- Dimensions: 11.77 x 18.05 cm
-
Package Contents: ThunderboltEx 4 card
2 x mini DisplayPort cables
1 x USB 2.0 cable
1 x 14-1 pin Thunderbolt header cable
1 x User manual
1 x Support DVD with Thunderbolt driver - Package Type: Retail
- Package Weight: 0.5500 kg
- Warranty: 1 Year
- #Hide#Host Interface: PCI Express
