Click to open expanded view
Brand j5create
Title j5create JCD543 USB-C Triple Display Docking Station
Low stock

j5create JCD543 USB-C Triple Display Docking Station

SKU: JCD543-N
Price
£85.00
Tax included. Shipping calculated at checkout.
Out of stock

Share this product

Share Post E-mail
j5create JCD543 USB-C Triple Display Docking Station

j5create JCD543 USB-C Triple Display Docking Station

£85.00

Product Information

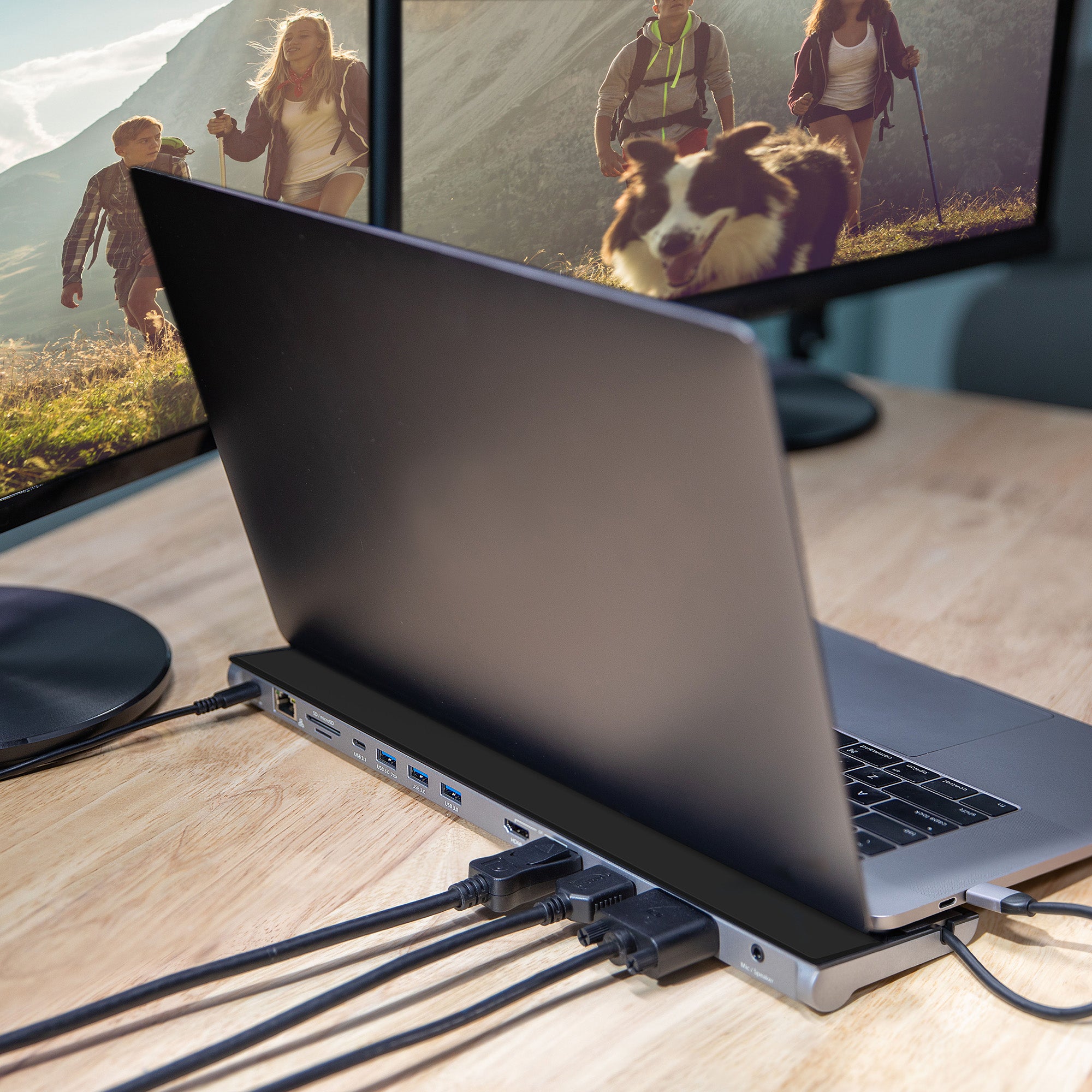

The USB-C™ Triple Display Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI™, VGA, and DisplayPort™ or HDMI™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C™ cord, it keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection.

These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity 0
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 2
VGA (D-Sub) ports quantity 1
Microphone in Yes
Headphone outputs 1
Connectivity technology Wired
USB Power Delivery (USB PD) Yes
USB Power Delivery revision 3.0
USB Power Delivery up to 100 W
USB Type-C DisplayPort Alternate Mode Yes
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports 1
Performance
Number of displays supported 3
Country of origin Taiwan
Product colour Black, Silver
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash), SD
HD type 4K Ultra HD
Housing material Aluminium
Maximum refresh rate 60 Hz
Hub interfaces DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA
Technical details
Product colour Black, Silver
Maximum operating temperature 48 °C
Cable length 0.45 m
Warranty period 2 year(s)
Storage
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash), SD
Power
Input current 5 A
Power plug type Type C
Power consumption (typical) 4.5 W
Output voltage 20 V
Output current 0.9 A
Software
Windows operating systems supported Windows 10, Windows 11, Yes
Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, MacOS, Yes
Operational conditions
Operating temperature (T-T) 0 - 48 °C
Storage temperature (T-T) -10 - 65 °C
Operating relative humidity (H-H) 0 - 85%
Storage relative humidity (H-H) 0 - 85%
Weight & dimensions
Weight 355 g
Width 82.5 mm
Depth 350 mm
Height 23.4 mm
Package weight 433 g
Package width 88 mm
Package depth 358 mm
Package height 28 mm
Design
Windows operating systems supported Windows 10, Windows 11, Yes
Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, MacOS, Yes
Country of origin Taiwan
Product colour Black, Silver
Packaging data
Quantity per pack 1 pc(s)
Package weight 433 g
Package width 88 mm
Package depth 358 mm
Package height 28 mm
Packaging content
Quick start guide Yes
Packaging content 1 x USB-C™ Triple Monitor Docking Station, 1 x Quick Installation Guide, 1 x 100W USB-C™ Power Adapter
Manual Yes
Cables included USB Type-C
AC adapter included No
Quantity per pack 1 pc(s)
Other features
Maximum operating temperature 48 °C
Cable length 0.45 m
