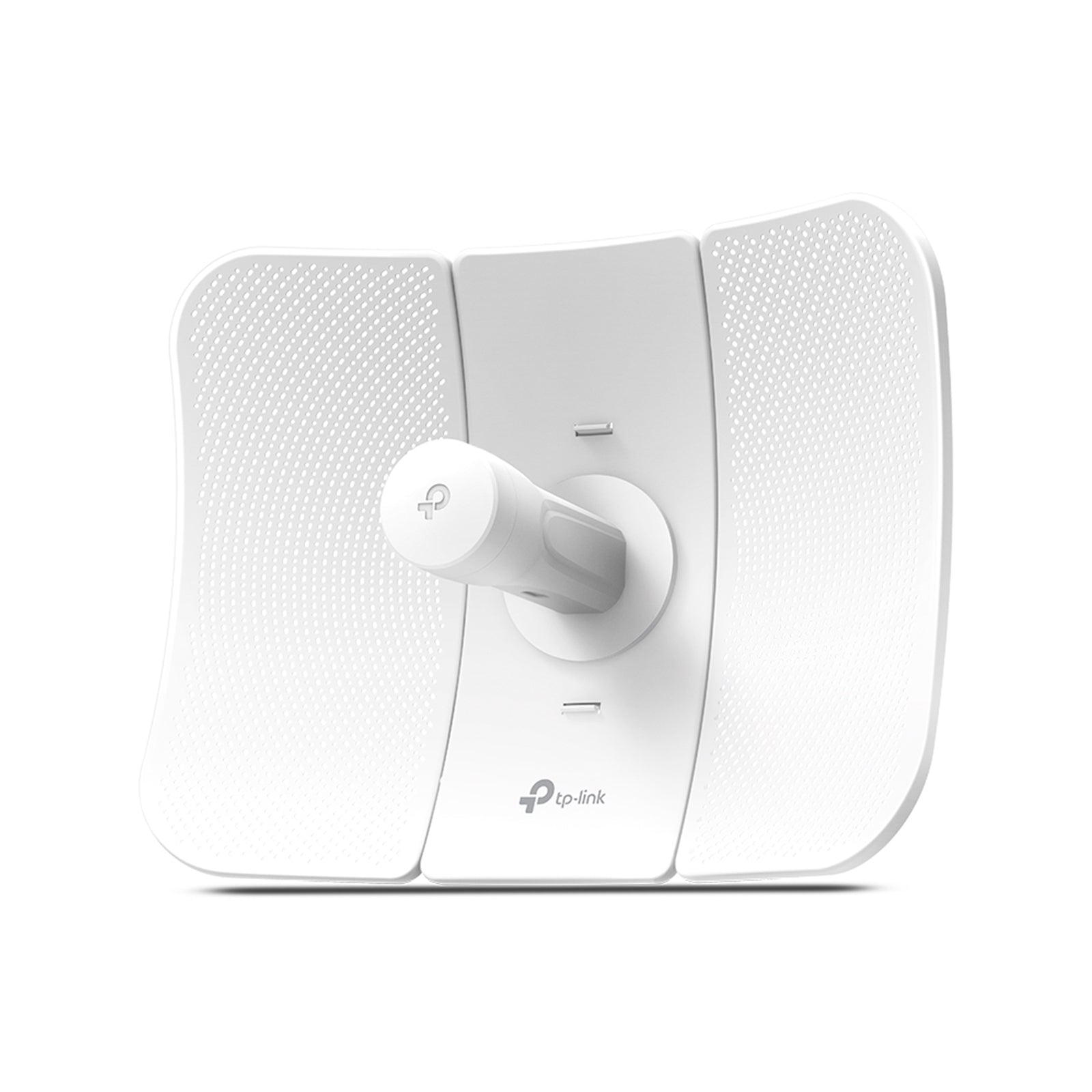

TP-Link Pharos CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.

Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission

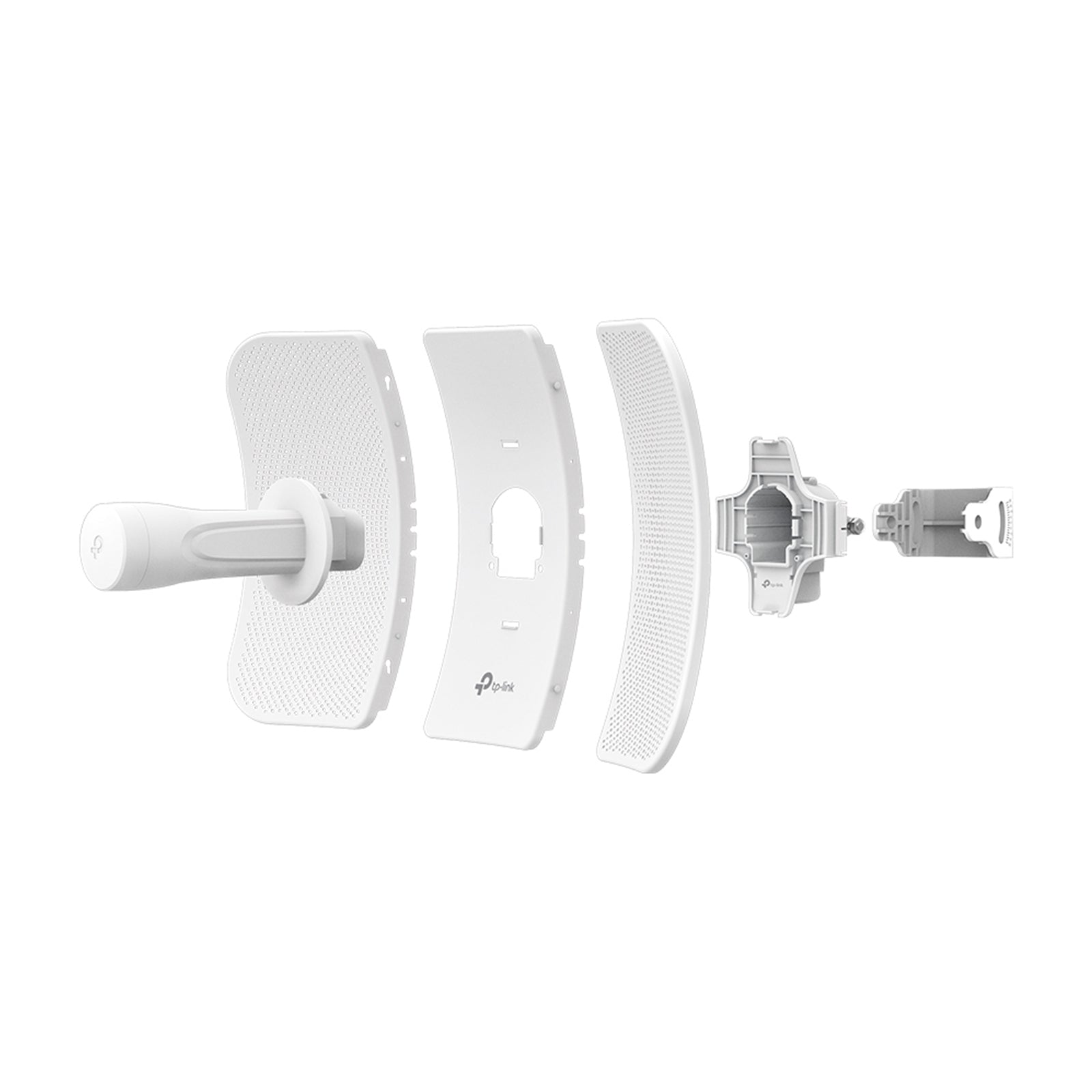

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.

Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.


Specifications

HARDWARE FEATURES
Processor:
Qualcomm 750MHz CPU, MIPS 74Kc

Memory:
128 MB DDR2 RAM, 16 MB Flash

Interface:
1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button

Power Supply:
Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC

Dimensions ( W x D x H ):
366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)

Antenna Gain:
23 dBi

Antenna Beamwidth:
9° (Azimuth)/7° (Elevation)

Protection:
15 KV ESD Protection
6 KV Lightning Protection

Enclosure:
Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
Wireless Standards:
IEEE 802.11a/n/ac

Wireless Speeds:
Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)

Frequency:
5.15–5.85 GHz

Transmit Power:
Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES
Network Configuration:
WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding

Wireless Configurations:
Selectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtP

Management:
Discovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server

System Tools:
Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment

System-level Optimizations:
Optimized IGMP Snooping / Proxy for multicast applications

POE ADAPTER FEATURES
Dimensions (W x D x H):
85.8x43.9x29.7 mm

Interfaces:
1 AC Jack with Earth Ground
1x 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1x 10/100/1000 Mbps Shielded Ethernet Port (Data)

Button:
Remote Reset Button

Power Status LEDs:
Green

Input:
100-240VAC, 50/60Hz

Output:
24VDC, 0.6A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency:
>84.29%

Certifications:
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS
Certification:
CE, FCC, RoHS, IP65, IC

Package Contents:
Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide

System Requirements:
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
