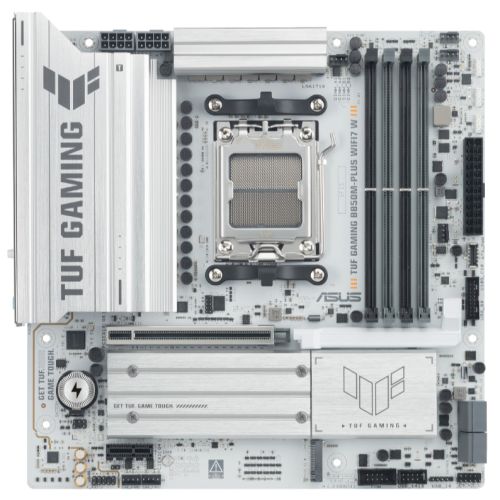

Asus TUF GAMING B850M-PLUS WIFI7 W, AMD B850, AM5, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 7, 2.5G LAN, 3x M.2, White

ASUS TUF GAMING B850M-PLUS WIFI7 W takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability.

Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

• AMD B850 mATX motherboard
• 14+2+1 80A DrMOS power stages
• DDR5
• PCIe 5.0 Ready
• Three M.2 slots
• Wi-Fi 7
• Realtek 2.5Gb Ethernet
• DisplayPort
• HDMI
• Rear USB 20Gbps Type-C® and front USB 10Gbps Type-C® support
• BIOS FlashBack™
• Clear CMOS button
• Aura Sync

• AI Cache Boost - Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.
• AI Advisor - ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
• UEFI BIOS - The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
• ASUS DriverHub - Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
• ASUS GlideX - Enable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.
• Armoury Crate - Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

• Eight Layered PCB design - This multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
• ProCool Power Connectors - Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
• TUF Components - TUF chokes deliver rock-solid power to the CPU, improving system stability. And TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.
• Digi+VRM Control - The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

• DRAM Overclocking Performance - Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
• DDR5 Dominance - For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.
• Asus AEMP - ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.
• M.2 PCIe 5.0 Support - This motherboard also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

• Enlarged VRM Heatsinks - The extensive surface area of this heatsink covers the MOSFETs and chokes to improve thermal performance.
• AIO Pump Header - An integrated AIO management system enables full control of PWM or DC water pumps, making it perfect for custom or all-in-one cooling setups.
• Multiple Temperature Sources - Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
• Smart Fan Protection - A dedicated integrated circuit protects each fan header from excess heat and electrical currents.
• M.2 Heatsink - Two M.2 slots have dedicated heatsink to help keep M.2 SSDs at optimal operating temperatures and ensure consistent performance and reliability.
• Superb PCH Heatsink - A surface area for the chipset cooler maximizes system performance and heat dissipation.
• 4-Pin PWM/DC Fan - All onboard fan headers support auto-detection of PWM or DC fans.
• Cooler Compatibility - ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

• PCIe 5.0 for Graphics Card - PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.
• Rear USB 20Gbps Type-C - Extensive USB support ensures connections to a wide array of external devices. This motherboard includes a USB 20Gbps Type-C port on the rear I/O panel that delivers transfer speeds of up to 20Gbps.
• Front USB 10Gbps Type-C - This motherboard features a USB 10Gbps Type-C front panel connector for speedy data transfers of up to 10Gbps.

• WiFi 7 - The next-gen WiFi 7 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.
• 2.5Gb Ethernet - On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5X. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.


• Realtek 7.1 Channel Audio - ALC1220P - This motherboard utilizes an audio codec designed in close collaboration with Realtek — the Realtek ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.
• DTS Audio Processing - DTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.

• Outshine The Competition - ASUS Aura Sync offers synchronized lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.
• Addressable Gen2 RGB Headers - Automatically optimize lighting effects for the number of LEDs present in compatible ARGB gear.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD B850
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5 (Dual Channel)
  ECC and Non-ECC Un-buffered DIMM*
  Supports AMD EXPO
  ASUS AEMP

  *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function"
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 8000+MT/s (OC)
• Maximum Memory: 256GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: Ryzen 9000 & 7000 Series CPUs:
  1 x PCIe 5.0 x16 (supports x16 mode)

  Ryzen 8000 Series CPUs:
  1 x PCIe 4.0 x16 (supports x8/x4 mode)

  AMD B850 Chipset:
  1 x PCIe 4.0 x1
• Storage: 4 x SATA III
  3 x M.2

  Ryzen 9000 & 7000 Series CPUs:
  M.2_1 (2280) - PCIe 5.0 x4
  M.2_2 (2242/2260/2280) - PCIe 4.0 x4

  Ryzen 8000 Series CPUs:
  M.2_1 (2280) - PCIe 4.0 x4
  M.2_2 (2242/2260/2280) - PCIe 4.0 x4/x2

  AMD B850 Chipset:
  M.2_3 (2280) - PCIe 4.0 x4
• RAID: Ryzen 9000 Series CPUs: RAID 0/1/5/10
  Ryzen 8000 Series CPUs: RAID 0/1
  Ryzen 7000 Series CPUs: RAID 0/1/10
• Wireless: Wi-Fi 7 (MediaTek MT7925)
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band
  Supports Wi-Fi 7 160MHz bandwidth
  Bluetooth v5.4
• LAN: 2.5GB LAN
• Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  1 x USB 20Gbps Type-C
  3 x USB 10Gbps Type-A
  4 x USB 5Gbps Type-A
  4 x USB 2.0

  Front:
  1 x USB 10Gbps Type-C
  2 x USB 5Gbps
  3 x USB 2.0
• Back Panel I/O Ports: 1 x USB 20Gbps Type-C
  3 x USB 10Gbps Type-A
  4 x USB 5Gbps Type-A
  4 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Wi-Fi module
  1 x Realtek 2.5Gb Ethernet
  3 x Audio jacks
  1 x BIOS FlashBack button
  1 x Clear CMOS button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  3 x 4-pin Chassis Fan
  1 x 24-pin Main
  2 x 8-pin +12V CPU
  3 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 10Gbps Type-C
  1 x USB 5Gbps
  2 x USB 2.0
  3 x Addressable RGB Gen2
• .: 1 x Chassis Intrusion
  1 x COM Port
  1 x Front Panel Audio
  1 x 10-1 pin Front Panel System
• Accessories: 2 x SATA 6Gb/s cables
  1 x ASUS WiFi Q-Antenna
  1 x TUF GAMING sticker
  1 x M.2 rubber package
  1 x Screw package for M.2 SSD
  1 x Quick start guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
