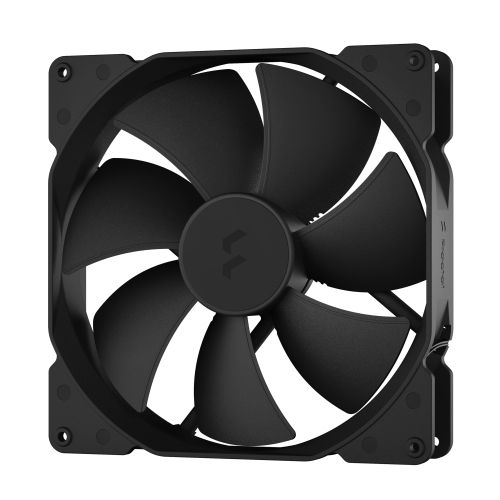

Fractal Design Dynamic X2 GP-18 PWM 18cm Case Fan, Long Life Sleeve Bearing, Optimized Fan Geometry, 300-1200 RPM

Super-sized airflow

The Dynamic X2 GP-18 is a powerful 180 mm fan that packs a mean punch in the air-flow department. Massive blades, stout 38 mm thickness, and a wide 300-1200 RPM range with PWM control allow the GP-18 to yield remarkably high airflow while remaining exceptionally quiet.


• Massive 180 x 38 mm fan that yields remarkably high airflow while remaining very quiet
• High-grade LLS bearing with 90,000-hour MTTF delivers long-lasting dependability
• PWM support offers a wide 300-1200 RPM speed range for silent operation under lighter loads and maximum airflow during more demanding activity
• Optimized fan geometry balances airflow with extra emphasis on static pressure for great performance in any usage scenario
• Aerodynamic stator struts with embedded wiring helps reduce noise and turbulence
• Stator struts sit on a wide angle to the trailing edge of the blades, resulting in a lower noise level and smoother noise profile
• Strategically placed notches near the fan hub on the trailing edge of the blades help to eliminate the humming noise produced when the blades pass stator struts
• Trip Wire technology introduces a micro-turbulent layer that helps to combat elements that negatively affect performance, providing an overall more efficient and quieter fan environment
• Customized design contributes to a cool running and beautiful looking build
• Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern

Description

Specification

• Type: 18cm Case Fan
• Fan Connector(s): 4-pin
• Fan Controller: PWM
• Installation: Screws
  Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern
• #Hide#LED Lighting: No
• Colour: Black
• LED Lighting: -
• Weight: 499 g
• Fan Dimensions: 180 x 180 x 38 mm
• Rotation Speed: 300 - 1200 RPM
• Fan Bearing: Long Life Sleeve bearing
• Air Flow: 44.9 – 153.7 CFM
• Noise level: 16 – 35.4 dB(A)
• Power: Input power: 4.2W at 12VDC
  Maximum rated input current: 0.35A
  Nominal input Voltage: 12V
  Minimum startup voltage: 6V
• Additional Features: See Overview
• MTBF: "90,000 hours"
• Package Contents: Dynamic X2 GP-18 fan
  4 x fan screws
  4 x extra-long radiator screws
• Package Type: Retail
• Package Weight: 0.5450 kg
• Warranty: 2 Years
• #Hide#White: N/A
