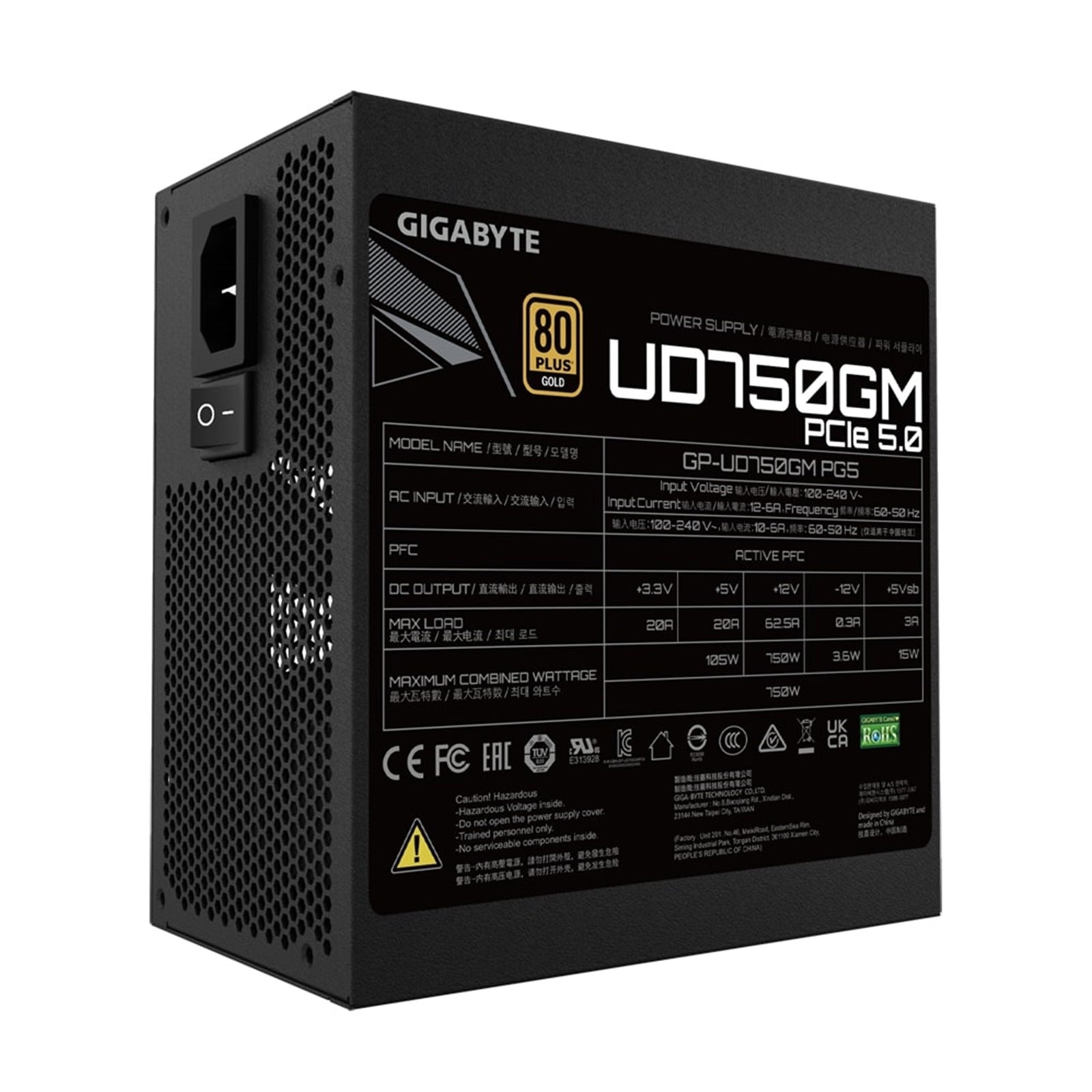

The Gigabyte GP-UD750GM PG5 is a high-performance power supply unit designed to meet the needs of modern PC builds. It features a fully modular design, 80 PLUS Gold certification, and support for PCIe Gen 5.0 graphics cards, making it ideal for high-end gaming and professional applications.
Key Features
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact design
5 years warranty (Adjusted according to different regions)
Specifications
Type
Intel Form Factor ATX 12V v3.0
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6A
Input Frequency
60-50 Hz
Output Capacity
750W
Fan Type
120mm smart hydraulic bearing (HYB) fan
Efficiency
90% at typical load
MTBF
100,000 hours
Protection
OVP, OPP, SCP, UVP, OCP, OTP
Certifications
80 PLUS Gold
Dimensions
150 x 140 x 86 mm
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1: 610 mm x 1
CPU/EPS 4+4 Pin x 2: 600 mm + 200mm x 1
PCIe 16 Pin x 1: 700 mm x 1
PCIe 6+2 Pin x 4: 600 mm + 150 mm x 2
SATA x 8:
600 mm +150 mm +150 mm +150 mm x 2
4 Pin Peripheral x 3+4-Pin floppy x 1: 500 mm +120 mm +120 mm +150mm x 1
