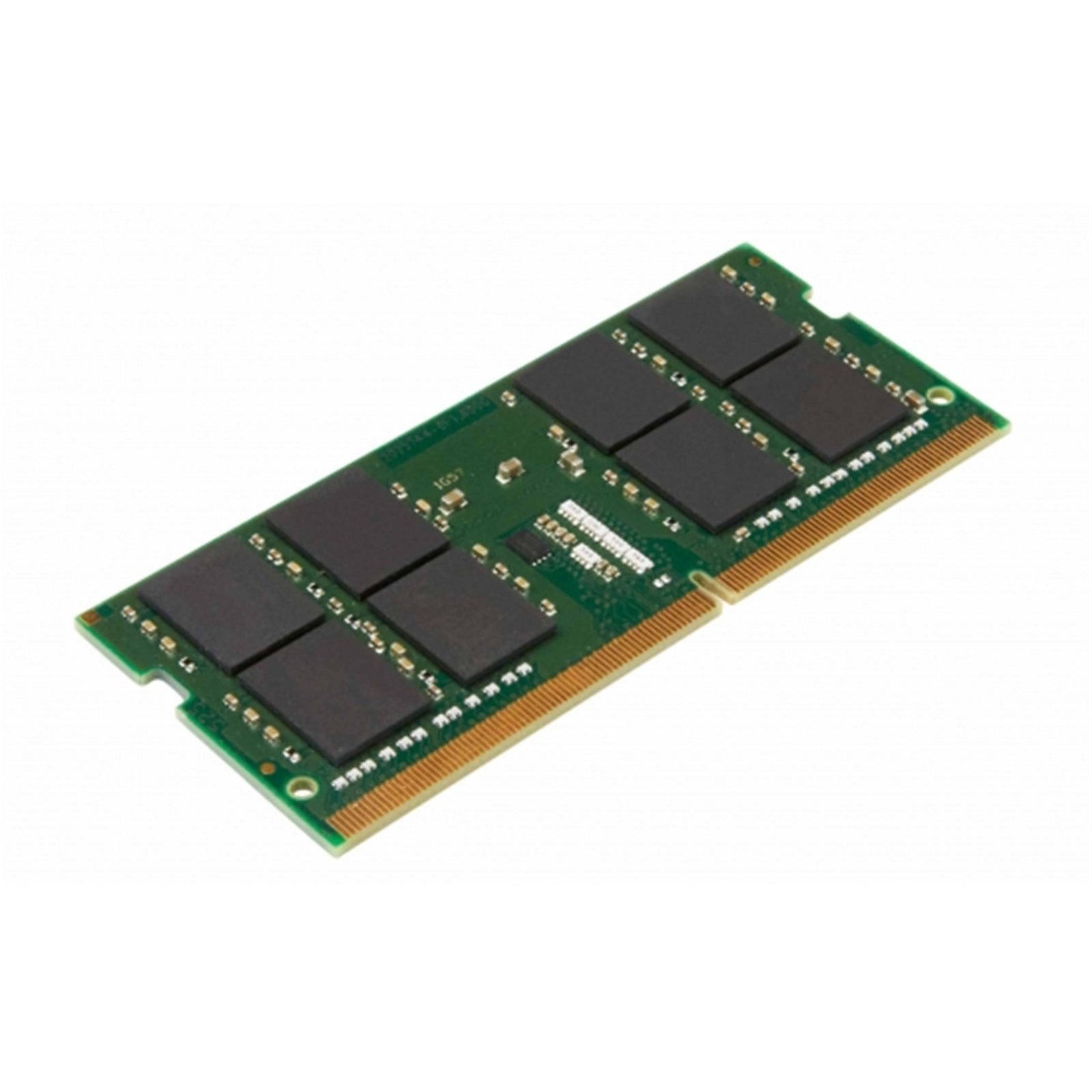

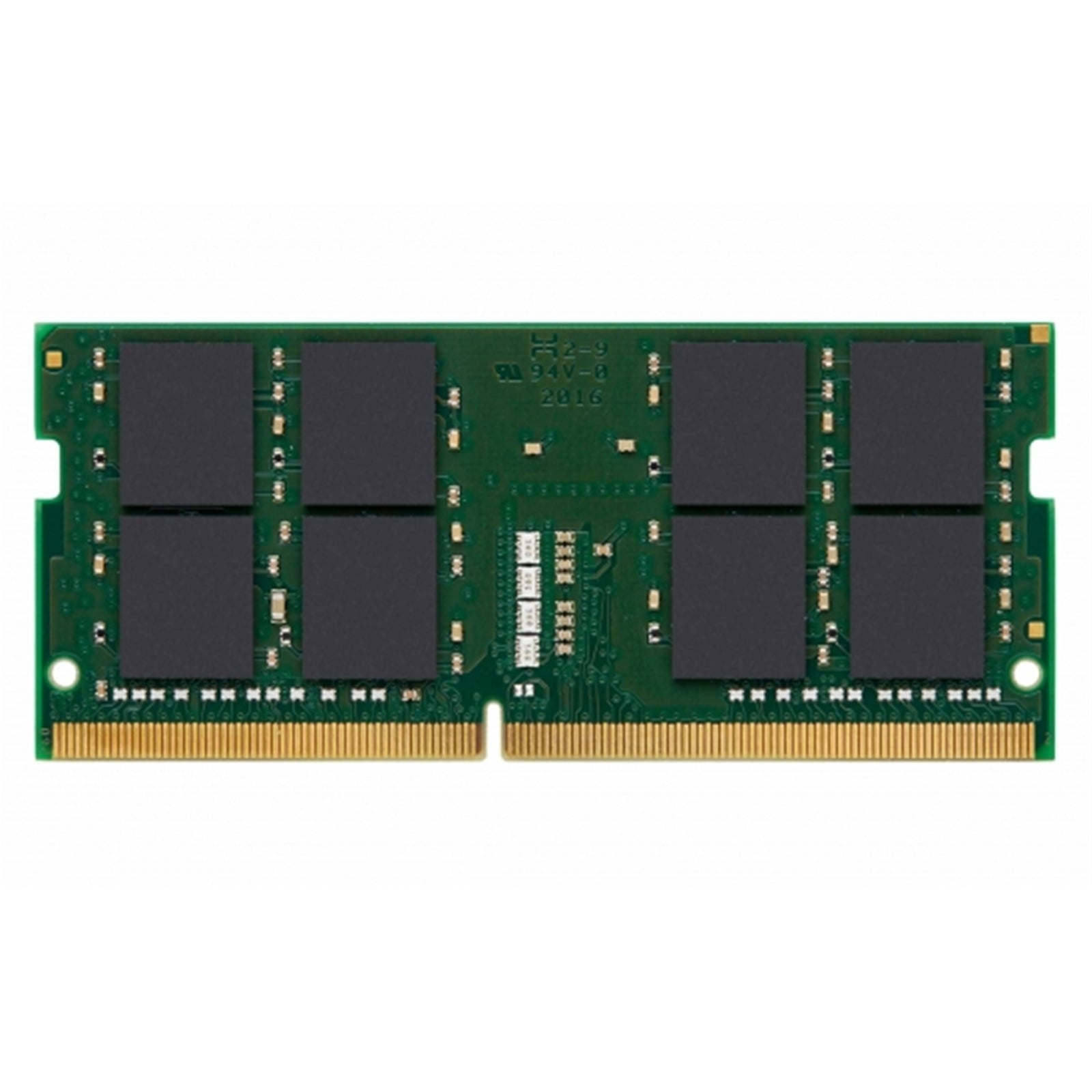

Kingston ValueRAM 32GB, DDR4, 3200MHz (PC4-25600), CL22, SODIMM Memory

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free

Description

Specification

• Series: Kingston ValueRAM
• DDR Type: DDR4 SODIMM
• Size: 1 x 32GB
• #Hide#Individual Module Size: 32GB
• Speed: 3200 MHz
• Compliance: PC4-25600
• Pins: 260-pin
• CAS Latency: CL22
• Data Integrity Check: Non-ECC
• Voltage: 1.2V Typical
• Additional Information: See Overview
• Package Type: Retail
• Package Weight: 0.0225 kg
• Warranty: Lifetime
