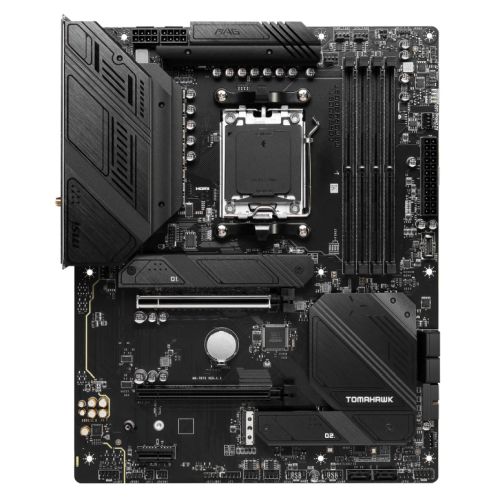

MSI MAG B650 TOMAHAWK WIFI, AMD B650, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 3x M.2

The MAG series fights alongside gamers in pursuit of honour.

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 7600+(OC) MHz
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• 2.5G LAN and Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

• Wi-Fi 6E
• Bluetooth 5.2
• 2.5G LAN

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM5
• Chipset: AMD B650
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5 (Dual Channel)
  Supports non-ECC, un-buffered memory
  Supports AMD EXPO"
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7600+(OC)
• Maximum Memory: 256GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 2 x PCIe 4.0 x16
  1 x PCIe 3.0 x1
  *Specifications may vary between CPU types
• Storage: 6 x SATA III
  3 x M.2

  M.2_1 (22110/2280) - PCIe 4.0 x4
  M.2_2 2280/2260) - PCIe 4.0 x4
  M.2_3 (2280/2260) - PCIe 4.0 x4

  * The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 CPUs
• RAID: "Supports RAID 0, 1, 10 for SATA storage devices*
  Supports RAID 0 and 1 for M.2 NVMe storage devices
  * SATA_A1_A2 do not support RAID function."
• Wireless: "Wi-Fi 6E
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX
  Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz/6GHz bands
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth 5.3"
• LAN: 2.5GB LAN
• Audio: Realtek ALC4080 Codec
  7.1-Channel High Performance Audio
• USB Ports Supported: Rear:
  1 x USB 20Gbps Type-C
  3 x USB 10Gbps Type-A
  4 x USB 5Gbps Type-A
  2 x USB 2.0

  Front:
  1 x USB 10Gbps Type-C
  2 x USB 5Gbps Type-A
  4 x USB 2.0
• Back Panel I/O Ports: 1 x USB 20Gbps Type-C
  3 x USB 10Gbps Type-A
  4 x USB 5Gbps Type-A
  2 x USB 2.0
  1 x DisplayPort 1.4
  1 x HDMI 2.1
  1 x RJ-45
  1 x Audio Line In
  3 x Audio Line Out
  1 x Microphone In
  1 x S/PDIF Optical Out
  2 x SMA Antenna
• Internal I/O Connectors: 1 x Power (ATX_PWR)
  2 x Power (CPU_PWR)
  1 x CPU Fan
  1 x Pump Fan
  6 x System Fan
  2 x Front Panel
  1 x Chassis Intrusion
  1 x Front Audio
  1 x Tuning Controller
  2 x Addressable V2 RGB LED
  2 x RGB LED
  1 x TPM pin TPM 2.0
• .: 4 x USB 2.0
  2 x USB 5Gbps Type-A
  1 x USB 10Gbps Type-C
• Accessories: Quick Installation Guide
  SATA Cable
  EZ M.2 Clips
  Cable Stickers
  Wi-Fi Antenna
  EU Regulatory Notice
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
