Brand MSI
Title MSI MPG B860I EDGE TI WIFI, Intel B860, 1851, Mini ITX, 2 DDR5, HDMI, TB4, Wi-Fi 7, 5G LAN, 2x M.2

MSI MPG B860I EDGE TI WIFI, Intel B860, 1851, Mini ITX, 2 DDR5, HDMI, TB4, Wi-Fi 7, 5G LAN, 2x M.2

SKU: MPG B860I EDGE TI WIFI
Price
£215.00
Tax included. Shipping calculated at checkout.
In stock online and ready for delivery or collection
Apple Pay
Google Pay
Klarna
Maestro
Mastercard
PayPal
Shop Pay
Visa

Share this product

Share Post E-mail
MSI MPG B860I EDGE TI WIFI, Intel B860, 1851, Mini ITX, 2 DDR5, HDMI, TB4, Wi-Fi 7, 5G LAN, 2x M.2

MSI MPG B860I EDGE TI WIFI, Intel B860, 1851, Mini ITX, 2 DDR5, HDMI, TB4, Wi-Fi 7, 5G LAN, 2x M.2

£215.00

Product Information

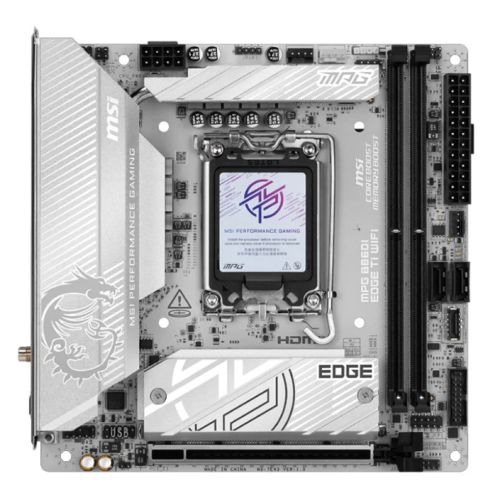

MPG B860I EDGE TI WIFI is a mini-ITX B860 motherboard with incredible power and expansion.

It features robust power design, Killer Wi-Fi 7 and 5G LAN, Thunderbolt™ 4, PCIe 5.0 connecitvity. It is definetly the best B860 mini-ITX motherboard for Intel Core Ultra processors.

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, up to 8600+ MT/s (OC)
  • Ultra Performance: 8+1+1+1 Duet Rail Power System, Core Boost, Memory Boost, 12-layer PCB made by 1oz thickened copper and server-grade level material
  • Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • EZ DIY: EZ Antenna, EZ Button and EZ Debug LED
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
  • Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience





Ready for AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
  • AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
  • AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
  • Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
  • AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.





Premium Thermal Design

Heavy plated MOSFET heatsink with heat-pipe / high quality 7W/mK MOSFET thermal pads / extra choke thermal pads / onboard M.2 Shield Frozr





Lightning Gen 5

The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.





Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.





Dual M.2 Connectors

Onboard 2x M.2 Connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.





Thunderbolt™ 4 port

Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.





5G Network Solution

Featuring premium 5G LAN to deliver better network experience.





Wi-Fi 7

The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.





Audio Boost

Reward your ears with studio grade sound quality for the most immersive audio experience.


Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Mini ITX
  • Socket: Intel 1851
  • Chipset: Intel B860
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: "DDR5 (Dual Channel)
    Supports Non-ECC, Un-buffered memory
    Supports Intel POR Speed and JEDEC Speed
    Supports Memory Overclocking and Intel XMP 3.0
    Supports Dual-Controller Dual-Channel mode
    Supports CUDIMM"
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 8600MT/s (OC)
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics
    Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x Thunderbolt 4 supports DisplayPort and Thunderbolt video outputs
  • PCI/PCI Express: 1 x PCIe 5.0 x16
  • Storage: 2 x SATA III
    2 x M.2

    M.2_1 (2280) - PCIe 5.0 x4
    M.2_2 (2280) - SATA & PCIe 4.0 x4
  • RAID: Supports RAID 0 and RAID 1 for SATA storage devices
  • Wireless: "Intel Killer BE1750x Wi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
    Supports Bluetooth 5.4, MLO, 4KQAM"
  • LAN: 5GB LAN
  • Audio: Realtek ALC897 Codec
    7.1-Channel High Definition Audio
  • USB Ports Supported: Rear:
    1 x Thunderbolt 4 (USB Type-C)
    1 x USB 10Gbps Type-C
    1 x USB 10Gbps Type- A
    4 x USB 5Gbps Type-A

    Front:
    1 x USB 10Gbps Type-C
    2 x USB 5Gbps
    2 x USB 2.0
  • Back Panel I/O Ports: 1 x Thunderbolt 4 (USB Type-C)
    1 x USB 10Gbps Type-C
    1 x USB 10Gbps Type- A
    4 x USB 5Gbps Type-A
    1 x HDMI 2.1
    1 x RJ-45
    1 x Audio Line Out
    1 x Microphone In
    1 x S/PDIF Optical Out
    2 x SMA Antenna
  • Internal I/O Connectors: 1 x Power (ATX_PWR)
    1 x Power (CPU_PWR)
    1 x CPU Fan
    1 x Combo Fan (Pump_Sys Fan)
    1 x System Fan
    2 x Front Panel
    1 x Chassis Intrusion
    1 x Front Audio
    1 x Addressable V2 RGB LED
    1 x RGB LED
    1 x TPM pin TPM 2.0
    2 x USB 2.0
  • .: 2 x USB 5Gbps Type-A
    1 x USB 10Gbps Type-C
  • Accessories: EU Regulatory Notice
    Quick Installation Guide
    Cable Stickers
    EZ Wi-Fi Antenna
    SATA Cable
    M.2 Screw
    ARGB Extension Cable
    EZ Front Panel Cable
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: To be confirmed
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
