Brand MSI

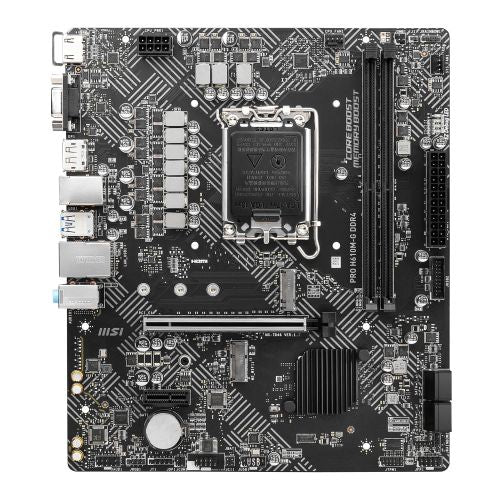

Title MSI PRO H610M-G DDR4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, 1x M.2

MSI PRO H610M-G DDR4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, 1x M.2

SKU: PRO H610M-G DDR4
Price
£74.00
Tax included. Shipping calculated at checkout.
In stock online and ready for delivery or collection
Apple Pay
Google Pay
Klarna
Maestro
Mastercard
PayPal
Shop Pay
Visa
MSI PRO H610M-G DDR4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, 1x M.2

MSI PRO H610M-G DDR4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, 1x M.2

Price
£74.00

Product Information



PRO series helps users work smarter by delivering an efficient and productive experience.

Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 3200(MAX) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.




Lightning Gen4 Solution

The Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.





Memory Boost

Advanced technology to deliver pure data signals for the best performance, stability and compatibility.





PCI-E Steel Armor

Protecting VGA cards against bending and EMI.





Core Boost

With premium layout and fully digital power design to support more cores and provide better performance.





EZ Debug LED

Easiest way to troubleshoot.





Frozr AI Cooling

Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.





Audio Boost

Reward your ears with studio grade sound quality for the most immersive audio experience.





Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1700
  • Chipset: Intel H610
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: "DDR4 (Dual Channel)
    Supports non-ECC, un-buffered memory"
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 3200 MHz
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics
    Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x VGA
    1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 4.0 x16
    1 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) - PCIe 3.0 x4
  • Wireless: -
  • LAN: GB LAN
  • Audio: Realtek ALC892/ ALC897 Codec
    7.1-Channel High Definition Audio
  • USB Ports Supported: Rear:
    2 x USB 5Gbps Type-A
    4 x USB 2.0

    Front:
    2 x USB 5Gbps Type-A
    2 x USB 2.0
  • Back Panel I/O Ports: 2 x USB 5Gbps Type-A
    4 x USB 2.0
    1 x DisplayPort 1.4
    1 x HDMI 2.1
    1 x VGA
    1 x PS/2 Keyboard/Mouse Combo
    1 x RJ-45
    1 x Audio Line In
    1 x Audio Line Out
    1 x Microphone In
  • Internal I/O Connectors: 1 x Power (ATX_PWR)
    1 x Power (CPU_PWR)
    1 x CPU Fan
    1 x System Fan
    1 x Front Panel
    1 x Chassis Intrusion
    1 x Front Audio
    1 x TPM
    1 x USB 2.0
    1 x USB 5Gbps Type-A
  • Accessories: Quick Installaion Guide
    M.2 Clip
    2 x SATA Cables
    Product Registration Card
    I/O Shield
    Driver DVD
    MSI Case Badge
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.8040 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN
