Brand MSI
Title MSI PRO X870E-P WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, USB4, Wi-Fi 7, 5G LAN, 3x M.2
Low stock

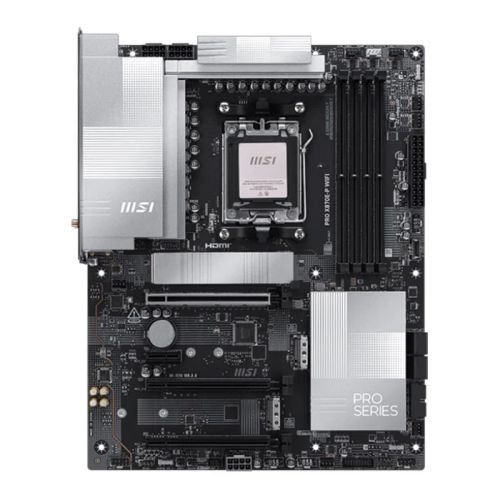

MSI PRO X870E-P WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, USB4, Wi-Fi 7, 5G LAN, 3x M.2

SKU: PRO X870E-P WIFI
Price
£246.00
Tax included. Shipping calculated at checkout.
Out of stock

Share this product

Share Post E-mail
MSI PRO X870E-P WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, USB4, Wi-Fi 7, 5G LAN, 3x M.2

MSI PRO X870E-P WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, USB4, Wi-Fi 7, 5G LAN, 3x M.2

£246.00

Product Information



PRO X870E-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds.

It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
  • Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience





Pro Business Elegance

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.





Ready for AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
  • AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
  • AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
  • Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
  • AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.





Wi-Fi 7

The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.





Lightning USB 40G

Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.





5G Network Solution

Featuring premium 5G LAN to deliver better network experience.





EZ M.2 Shield Frozr II

The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier





EZ PCIe Clip II

Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.





Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.





Lightning Gen 5

The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.





Extended Heatsink Design

MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.





Pre-installed I/O Shielding

Better EMI protection and more convenience for installation





Frozr AI Cooling

Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.





Specifications:

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: AMD AM5
  • Chipset: AMD X870E
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: "DDR5 (Dual Channel)
    Supports Non-ECC, Un-buffered memory
    Supports AMD POR Speed and JEDEC Speed
    Supports Memory Overclocking and AMD EXPO
    Supports CUDIMM, Clock Driver bypass mode only"
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 8200+(OC)
  • Maximum Memory: 256GB
  • Graphics: Integrated Graphics
    Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x USB4 (40Gbps) support USB Type-C display outputs
  • PCI/PCI Express: 1 x PCIe 5.0 x16
    1 x PCIe 4.0 x16
    2 x PCIe 3.0 x1
    *Specifications may vary between CPU types
  • Storage: 4 x SATA III
    3 x M.2

    Ryzen 9000 & 7000 Series CPUs:
    M.2_1 (2280/2260) - PCIe 5.0 x4

    Ryzen 8000 Series CPUs:
    M.2_1 (2280/2260) - PCIe 4.0 x4

    Chipset:
    M.2_2 (2280/2260) - PCIe 4.0 x4
    M.2_3 (22110/2280) - PCIe 4.0 x4
  • RAID: "Supports RAID 0, 1 and 10 for SATA storage devices
    Supports RAID 0, 1 and 5 for M.2 NVMe storage devices

    *RAID 5 configuration is only supported by Ryzen 9000 series CPUs."
  • Wireless: "Wi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
    Supports Bluetooth 5.4, MLO, 4KQAM"
  • LAN: 5GB LAN
  • Audio: Realtek ALC897
    7.1-Channel High Definition Audio
  • USB Ports Supported: Rear:
    1 x USB 40Gbps Type-C
    1 x USB 20Gbps Type-C
    2 x USB 10Gbps Type-A
    2 x USB 5Gbps Type-A
    4 x USB 2.0

    Front:
    1 x USB 10Gbps Type-C
    4 x USB 5Gbps Type-A
    6 x USB 2.0
  • Back Panel I/O Ports: 1 x USB 40Gbps Type-C
    1 x USB 20Gbps Type-C
    2 x USB 10Gbps Type-A
    2 x USB 5Gbps Type-A
    4 x USB 2.0
    1 x HDMI 2.1
    1 x RJ-45
    1 x Audio Line In
    1 x Audio Line Out
    1 x Microphone In
    2 x SMA Antenna
  • Internal I/O Connectors: 1 x Power (ATX_PWR)
    2 x Power (CPU_PWR)
    1 x Power (PCIE_PWR 8pin)
    1 x CPU Fan
    1 x Combo Fan (Pump_Sys Fan)
    6 x System Fan
    1 x EZ Conn-header (JAF_1)
    2 x Front Panel
    1 x Chassis Intrusion
    1 x Front Audio
    1 x Tuning Controller (JDASH)
    3 x Addressable V2 RGB LED
  • .: 1 x RGB LED
    1 x TPM pin TPM 2.0
    6 x USB 2.0
    4 x USB 5Gbps Type-A
    1 x USB 10Gbps Type-C
  • Accessories: EU Regulatory Notice
    Quick Installation Guide
    EZ M.2 Clip II Remover
    3 x EZ M.2 Clip II
    EZ Wi-Fi Antenna
    2 x SATA Cables
    1 to 2 EZ Conn-Cable (v1)
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: To be confirmed
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
