Samsung 9100 Pro(MZ-VAP8T0BW) 8TB SSD, PCIe 5.0 x4, NVMe 2.0 Interface, Up to 14,700 MB/s Read, Up to 13,300 MB/s Write, 5-year Limited Warranty or 600TBW Limited Warranty

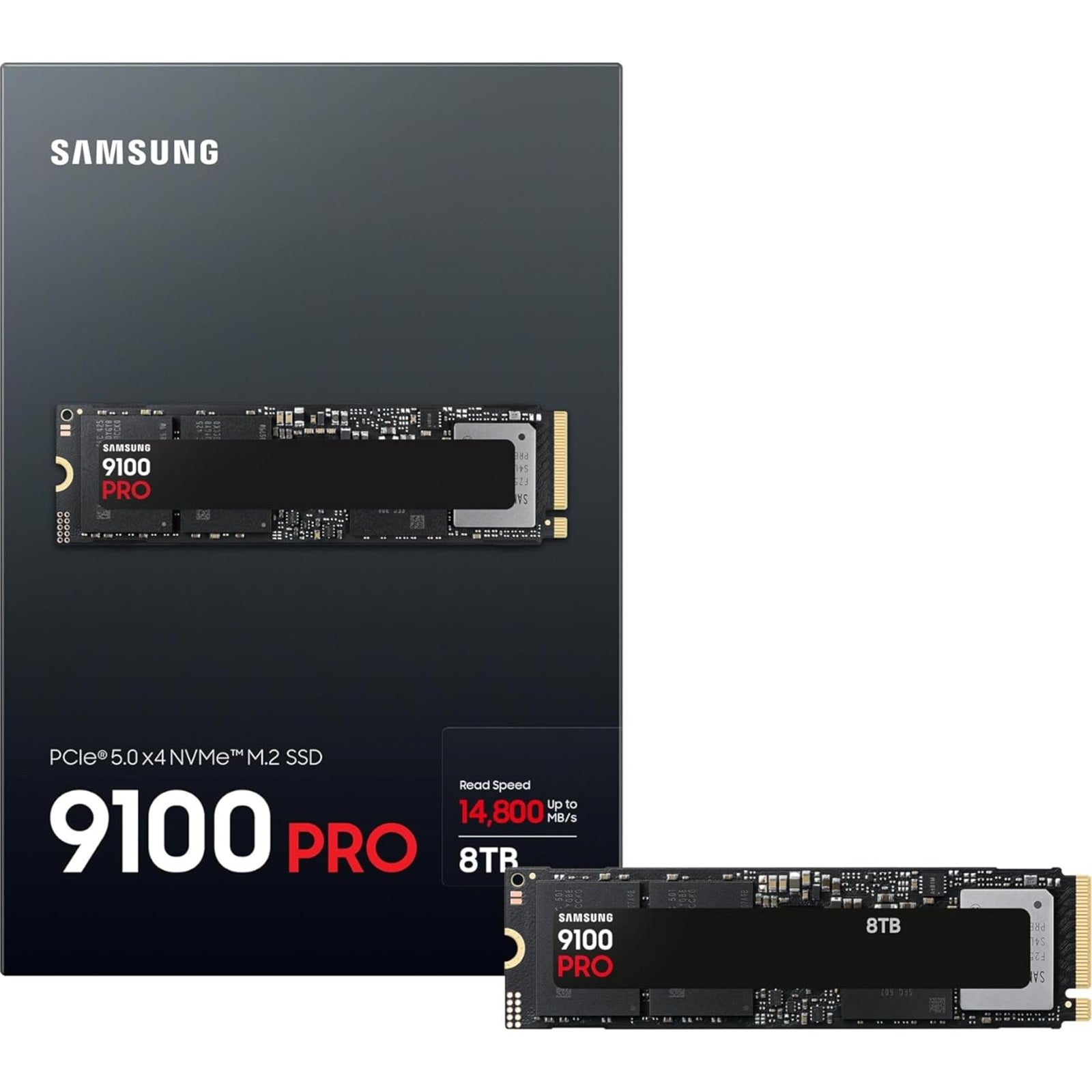

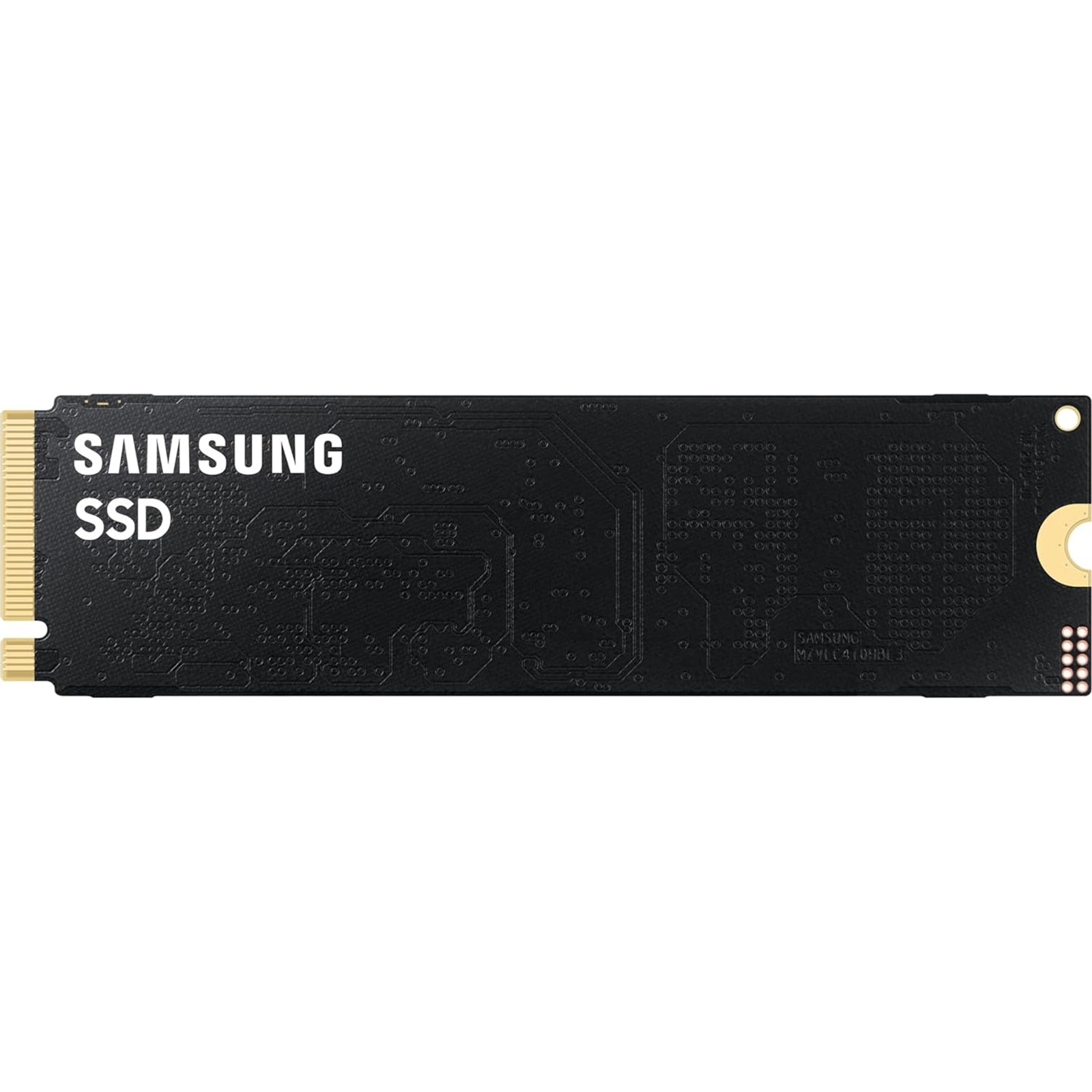

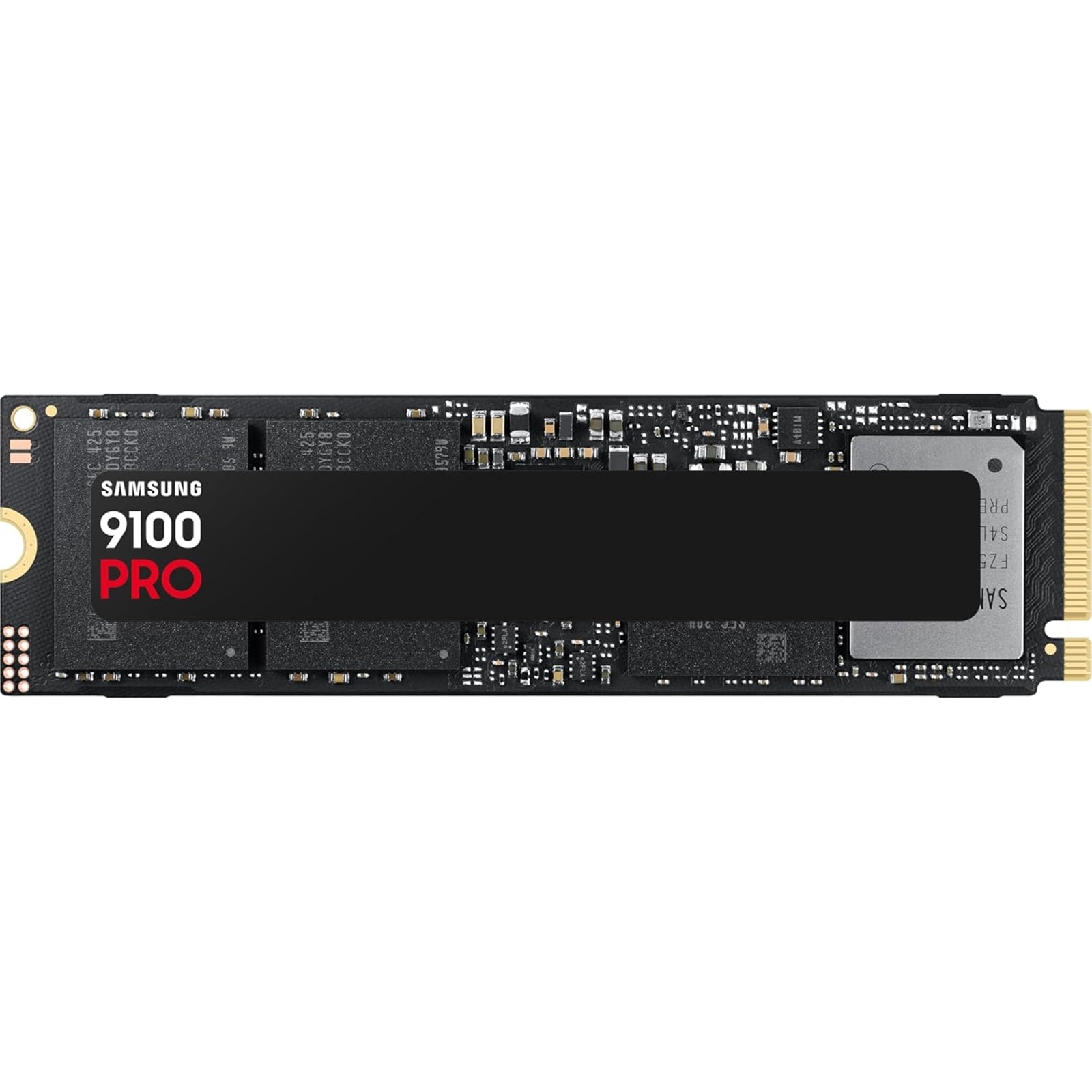

Samsung 9100 PRO, PCIe 5.0, NVMe M.2 8TB SSD

Features

PCIe 5.0 Performance
Max 14,800/13,400 MB/s sequential speeds, two times faster than 990 PRO.

Advance your gameplay
Mega capacity with exceptional compatibility.

Innovative Power & Thermal Control
Up to 49% enhanced power efficiency with advanced thermal control

Breakthrough PCIe 5.0 performance
Push PCIe 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.

Impressive processing power
Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Rapid AI creation
Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO’s exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.

Exceptional performance at your fingertips
Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.

Extraordinary thermal efficiency
Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe 5.0.

Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Specifications

Overview

Interface
PCIe 5.0 x4, NVMe 2.0

Sequential Read
Up to 14,700 MB/s * Performance may vary based on system hardware & configuration

Sequential Write
Up to 13,300 MB/s * Performance may vary based on system hardware & configuration

Warranty
5-year Limited Warranty or 600TBW Limited Warranty

Application
Client PCs, Game Consoles

Weight
Max 9.0g Weight

Dimension (WxHxD)
Max 80.15 x Max 22.15 x Max 2.38 mm

General Features

Capacity
8,000GB (8GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor
M.2 (2280)

Interface
PCIe 5.0 x4, NVMe 2.0

Storage Memory
Samsung V-NAND TLC

Controller
Samsung in-house Controller

Cache Memory
Samsung 1GB Low Power DDR4X SDRAM

Special Features

TRIM Support
Supported

S.M.A.R.T Support
Supported

GC (Garbage Collection)
Auto Garbage Collection Algorithm

Encryption Support
AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support
Not supported

Device Sleep Mode Support
Yes

Performance

Sequential Read
Up to 14,700 MB/s * Performance may vary based on system hardware & configuration

Sequential Write
Up to 13,300 MB/s * Performance may vary based on system hardware & configuration

Random Read
Up to 1,850,000 IOPS * Performance may vary based on system hardware & configuration

Random Write
Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration

Environment

Average Power Consumption (system level)
Average: Read 7.6 W / Write 7.2 W* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)
Typical 4 mW * Actual power consumption may vary depending on system hardware & configuration

Power Consumption (Device Sleep)
Typical 3.3 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage
3.3 V ± 5 % Allowable voltage

Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)

Operating Temperature
0 - 70 ? Operating Temperature

Shock
1,500 G & 0.5 ms (Half sine)

Accessories

Installation Kit
Not Available

Software
Management SW
Magician Software for SSD management

Warranty
5-year Limited Warranty or 600TBW Limited Warranty
