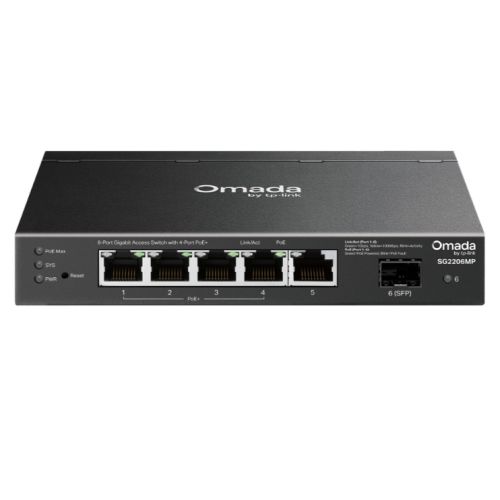

TP-LINK (SG2206MP) Omada Access 6-Port Gigabit Switch with 4-Port PoE+, 5x GB RJ45, 1x GB SFP, Centralized Management, Metal Casing

Omada Access 6-Port Gigabit Switch with 4-Port PoE+

• 5x Gigabit RJ45 ports (4× PoE+) and 1x Gigabit SFP slot
• 63W total PoE budget with up to 30W for each PoE+ port
• Centralized cloud management via the web or the Omada app
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, and IGMP Snooping
• Durable metal casing and desktop/wall mounting design

Description

Specification

• Rackmountable: No
• Managed: Smart
• Number of Ports: 6
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: GB SFP
• Interface(s): 4 x10/100/1000 Mbps PoE+ RJ45
  1 x 10/100/1000 Mbps RJ45
  1 x Gigabit SFP
• PoE Ports (RJ45): Standard: 802.3at/af compliant
  PoE+ Ports: 4 Ports
  PoE Power Budget: 63 W*
  Fast PoE
  Perpetual PoE
• Switching Capacity: 12 Gbps
• Power Supply: 53.5 VDC / 1.31 A
• Dimensions: 158 x 100.7 x 25.4 mm
• Mac Address Table: 8K
• Packet Forwarding Rate: 8.93 Mpps
• Jumbo Frame: 9 KB
• Additional Features: Durable metal casing
  Desktop/wall mounting design
  Physical security lock
• Quality of Service: 802.1p CoS/DSCP priority
  8 priority queues
  Priority Schedule Mode
  Queue Weight Config
  Bandwidth Control
  Storm Control
• Layer Features: L2 and L2+ Features:
  16 IP Interfaces: Support IPv4/IPv6 Interface
  Static Routing: 32 IPv4/IPv6 Static Routes
  DHCP Server
  DHCP Relay
  DHCP L2 Relay
  Static ARP
  Proxy ARP
  Gratuitous ARP
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  802.3x Flow Control
  Mirroring
  Device Link Detect Protocol (DLDP)
  802.1ab LLDP/ LLDP-MED
  Spanning Tree


• .: "L2 Multicast:
  511 IPv4, IPv6 shared multicast groups
  IGMP Snooping
  Multicast VLAN Registration (MVR)
  Multicast Filtering
  Limited IP Multicast (256 profiles and 16 entries per profile)"
• VLAN: VLAN Group
  802.1Q tag VLAN
  MAC VLAN: 16 Entries
  Protocol VLAN
  GVRP
  Voice VLAN
• Access Control: Support up to 230 entries
  Time-Range
  Time-based ACL
  MAC ACL
  IP ACL
  IPv6 ACL
  Combined ACL
  Rule Operation: Permit/Deny
  Policy Action
  ACL Rules Binding
• Security: IP-MAC-Port Binding
  AAA
  802.1X
  IP/IPv6-MAC Binding
  IP Source Guard
  IPv6 Source Guard
  DoS Defend
  DHCP Filter
  Static/Dynamic/Permanent Port Security
  Broadcast/Multicast/Unicast Storm Control
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  IP/Port/MAC-based access control
• Management: "Omada App
  Centralized Management
  Cloud Access
  Zero-Touch Provisioning

  Management Features:
  Web-based GUI
  Command Line Interface (CLI) through telnet
  SNMPv1/v2c/v3
  SNMP Trap/Inform
  RMON (1,2,3,9 groups)
  SDM Template
  DHCP/BOOTP Client
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  IEEE 802.1az Energy Efficient Ethernet
  SNTP
  System Log
  DDM
  OAM"
• Environment: Operating Temperature: -5°C ~40°C
  Storage Temperature: -40°C ~70°C
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: SG2206MP
  Power Adapter
  Power Cord
  Rackmount Kit
  Rubber Feet
  Installation Guide
• Package Type: Retail
• Package Weight: 1.0200 kg
• Warranty: Limited Lifetime
• #Hide#POE: Yes
