Antec Fusion 120mm ARGB, Black, 3x120mm ARGB Fans, Upto 2000RPM, 57.93CFM Airflow, 31.24dB Max, 4-pin PWM 3-pin LED

Fusion 120mm ARGB Fan Single

Create Your Charisma

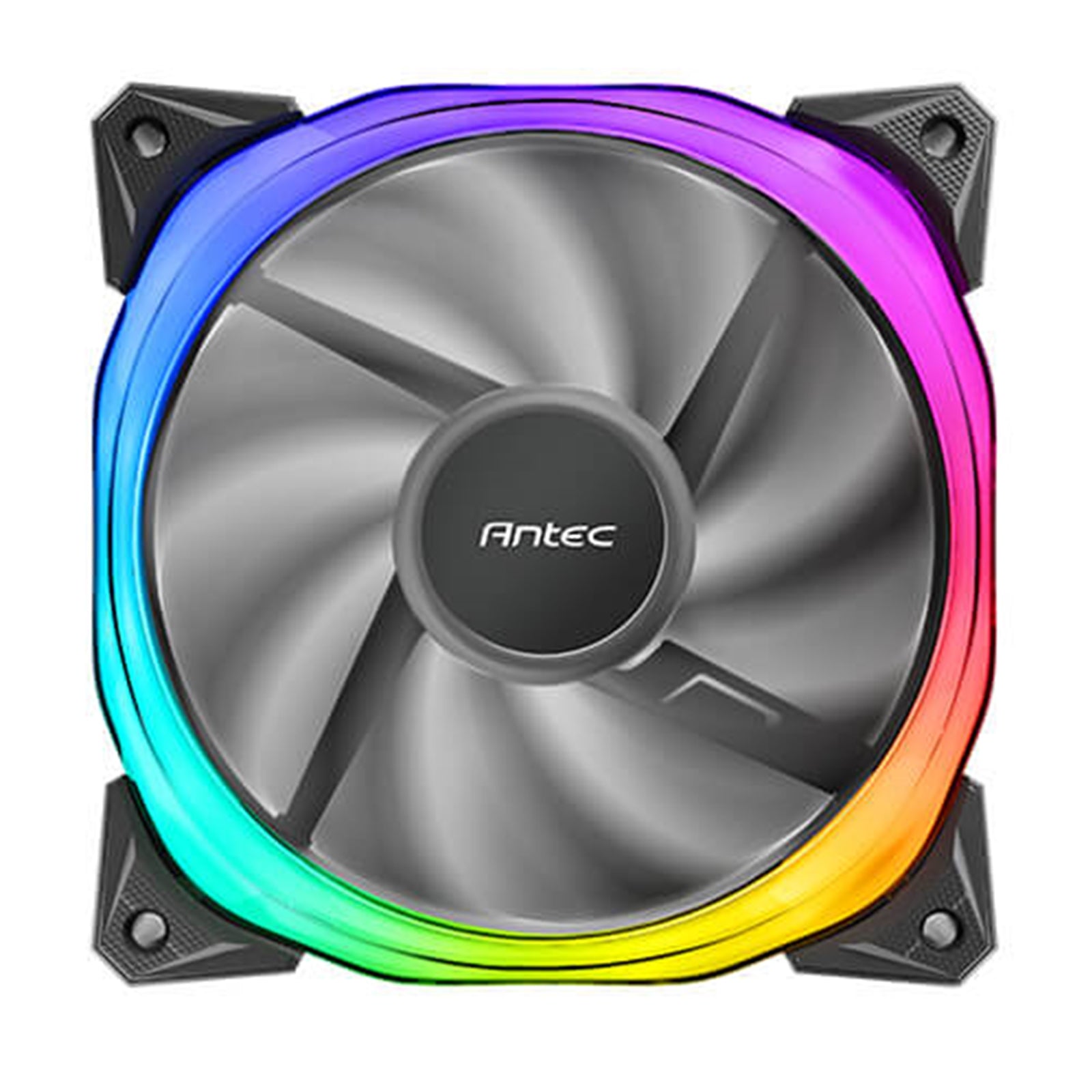

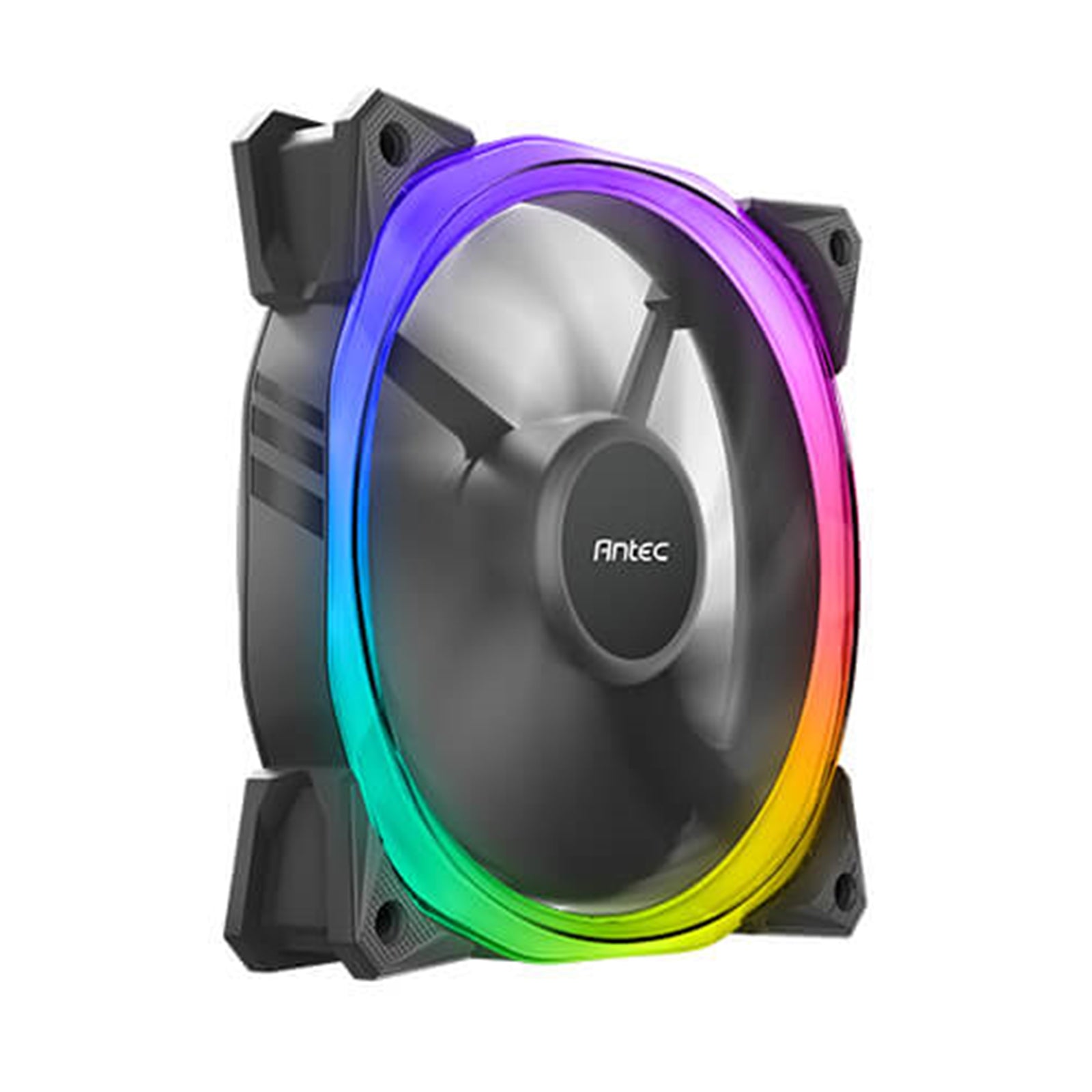

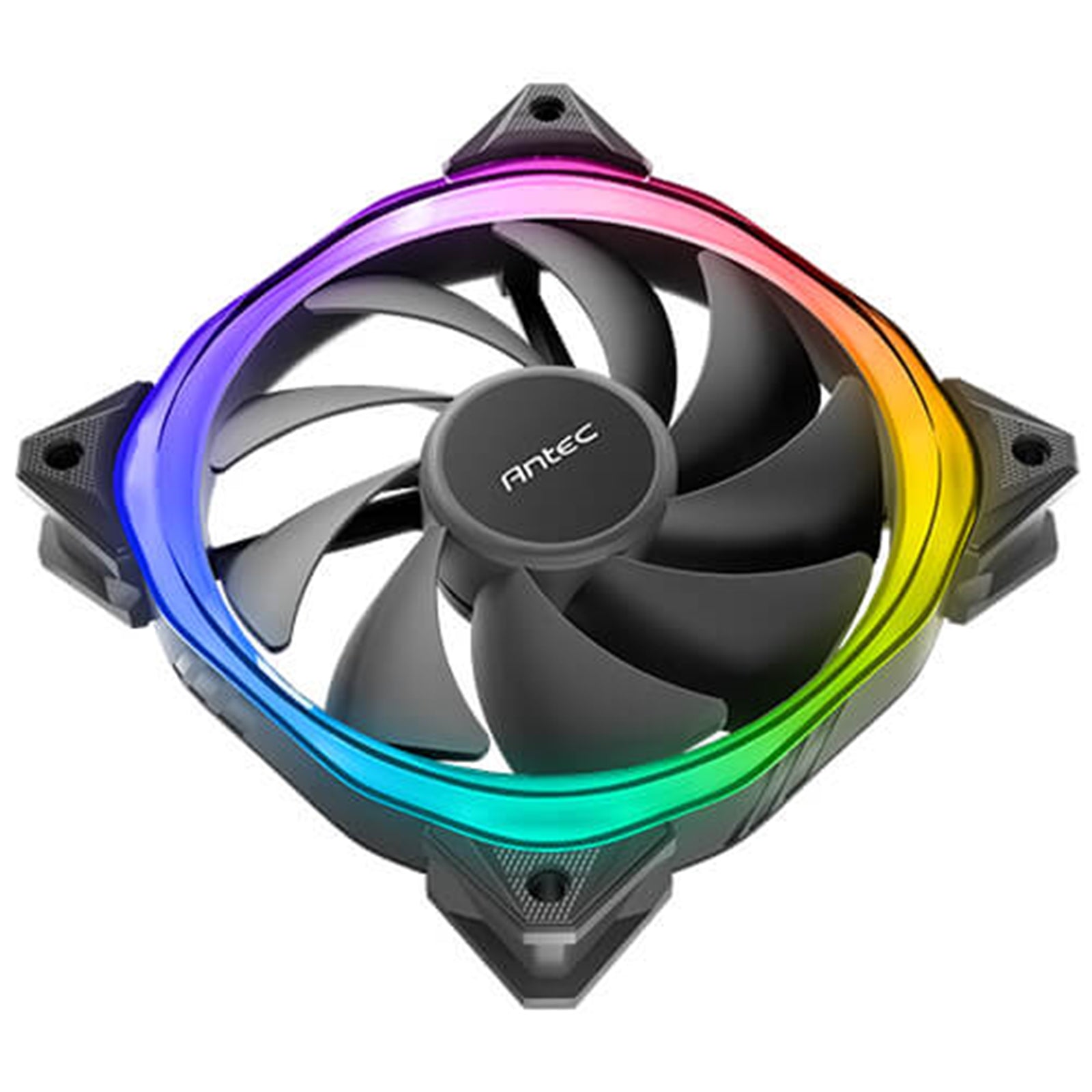

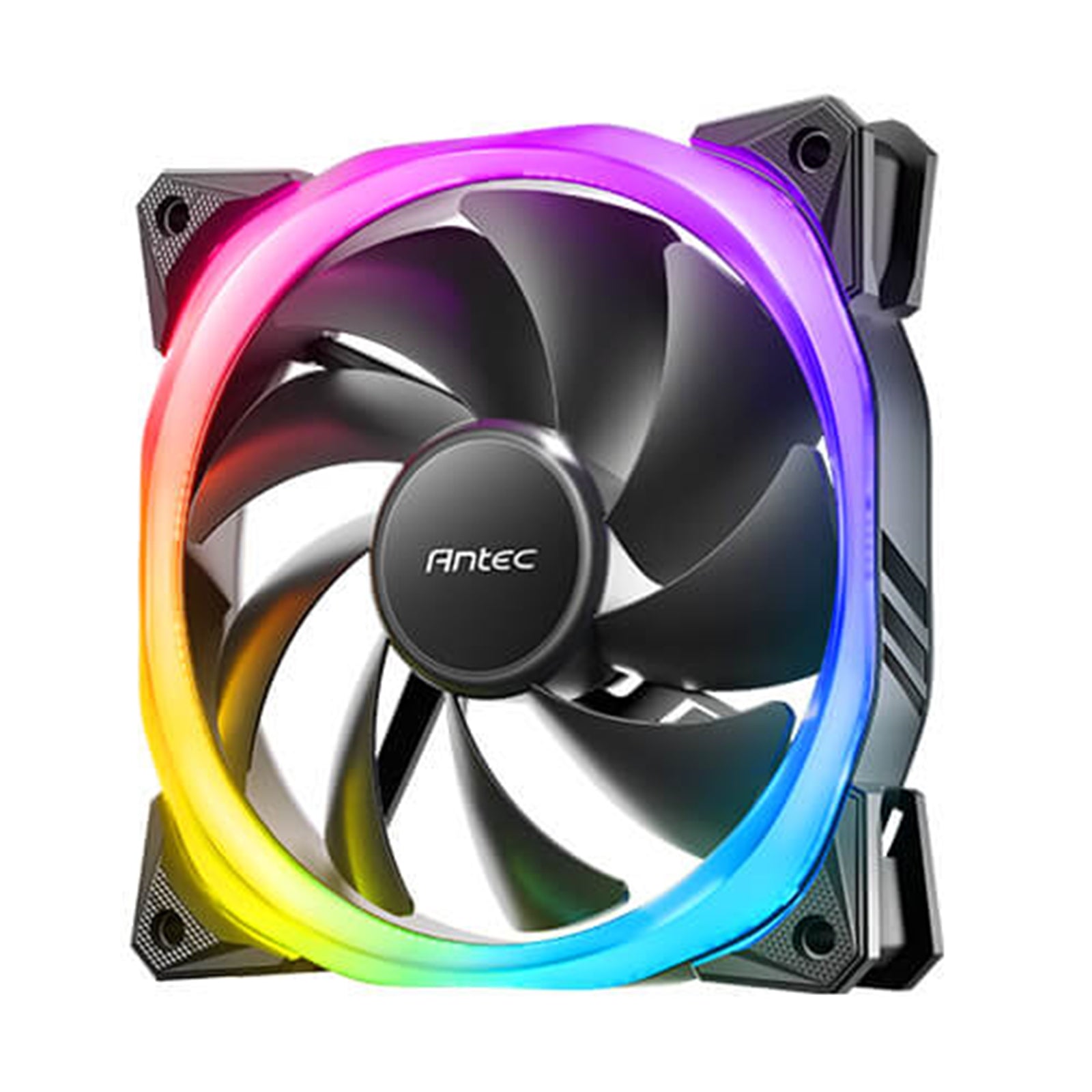

The brand-new Fusion 120 ARGB case fan features a unique dodecagon-shaped lighting ring with 16 LEDs & a hydraulic bearing fan. It will bring you an unforgettable experience visually and functionally.

Unique Multilateral Shaped Lighting Frame Projects, Various Lighting Effects
The unique dodecagon-shaped lighting ring with 16 LEDs projects various lighting effects from many angles.
Advance Dual-Layer Design with Crystal Layer and Frosty Layers.

Wonderful Texture
The well-processed fan structure and unique shape of fine craftsmanship bring the fan quality to the next level.

Compatible with the Motherboard
2 Individual Cable

Durable Woven Wire
The cable is covered with durable woven wire to enhance the lifetime & create unique aesthetics.

4-Pin PWM Connector
Connect to the motherboard (50cm)

3-Pin ARGB Connector
Connect to the motherboard for the ARGB Sync (50cm)

8 Enlarged Anti-Vibration Pads
The anti-noise design with 8 anti-vibration pads can efficiently reduce noise.

Hydraulic Bearing Fan
Extends the lifespan and reduces the noise.

ARGB/PWM Controller
FAN: PWM Port (4pin)
LED: ARGB port (3pin)
DC-IN: SATA Power Connector
LED CTRL: External LED Connector (Connect to the reset button of the chassis to turn it into LED control)
LED SPEED: Control the speed of lighting effects (Low/Mid/High)
PWM LED: External Signal Connector (Connect to the Motherboard for ARGB & PWM functions)
MODE: Switch the lighting effects

Specifications

Model Name
Fusion 120 ARGB

Fan Type
PWM Fan

Dimensions
120 x 120 x 25 mm

Bearing Type
Hydraulic Bearing

LED Type
Addressable RGB

Fan Speed
600±200~2000±10% RPM

Airflow
57.93 CFM (max.)

Air Pressure
2.11 mmH2O (max.)

Fan Noise Level
17.02~31.24 dB(A)

Lifespan
40,000 hours /hrs 25°c

Connector
FAN: 4-pin PWM | LED: 3-pin

Rated Voltage
FAN: DC 12 V | LED: DC 5 V

Operation Voltage
FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V

Rated Current
FAN : = 0.21 A | LED : = 0.58 A

Warranty
2 Years
