ASUS NUC 14 Pro Barebone Kit, Intel Core Ultra 5 125H CPU, Intel Arc Graphics, Wi-Fi 6E, Bluetooth 5.3

AI-Enabled Mini PC designed for everyday computing needs, featuring Intel Core Ultra processors, Arc GPU, Intel AI Boost (NPU), and toolless-access chassis.

Performance
Delivers best-in-class performance among comparable mini-PC offerings

Manageability
Most comprehensive mini-PC with Intel Core Ultra 5 125H for exceptional security, manageability, and stability

AI Enabled
Harnesses the prowess of Intel Core Ultra processors’ three AI engines for high throughput, low power, and fast response

Wireless Connectivity
Delivers seamless connectivity for certified Bluetooth dongle-free experiences

Customizable
Designed for toolless chassis access making upgrades easier, safer, and faster

GENERAL

Model
90AR0062-M00090

Product Name
ASUS NUC 14 Pro Slim (RNUC14RVKU500002I)

Form Factor
Ultra Compact Form Factor (UCFF) Slim Mini PC Barebone

Colour
Black

Operating System
No OS (Barebone)

PROCESSOR

CPU
Intel Core Ultra 5 125H

Architecture
Meteor Lake-H

Cores / Threads
14 Cores (4P + 8E + 2 LP-E) / 18 Threads

Max Turbo Frequency
Up to 4.5 GHz

Cache
18MB Intel Smart Cache

AI Support
Integrated Intel AI Boost (NPU)

GRAPHICS

Graphics
Integrated Intel Arc Graphics

Max Displays Supported
Up to 4 Displays

MEMORY

Memory Type
DDR5 SO-DIMM

Memory Slots
2 x SO-DIMM

Maximum Memory
Up to 96GB (2 x 48GB)

Supported Speeds
Up to DDR5-5600

STORAGE

M.2 Slots
1 x M.2 2280 PCIe 4.0 x4 NVMe
1 x M.2 2242 PCIe 4.0 x4 NVMe

Storage Included
None

NETWORKING

Ethernet
1 x 2.5G LAN (Intel I226-V)

Wireless
Intel Wi-Fi 6E AX211

Bluetooth
Bluetooth 5.3

PORTS & CONNECTIVITY

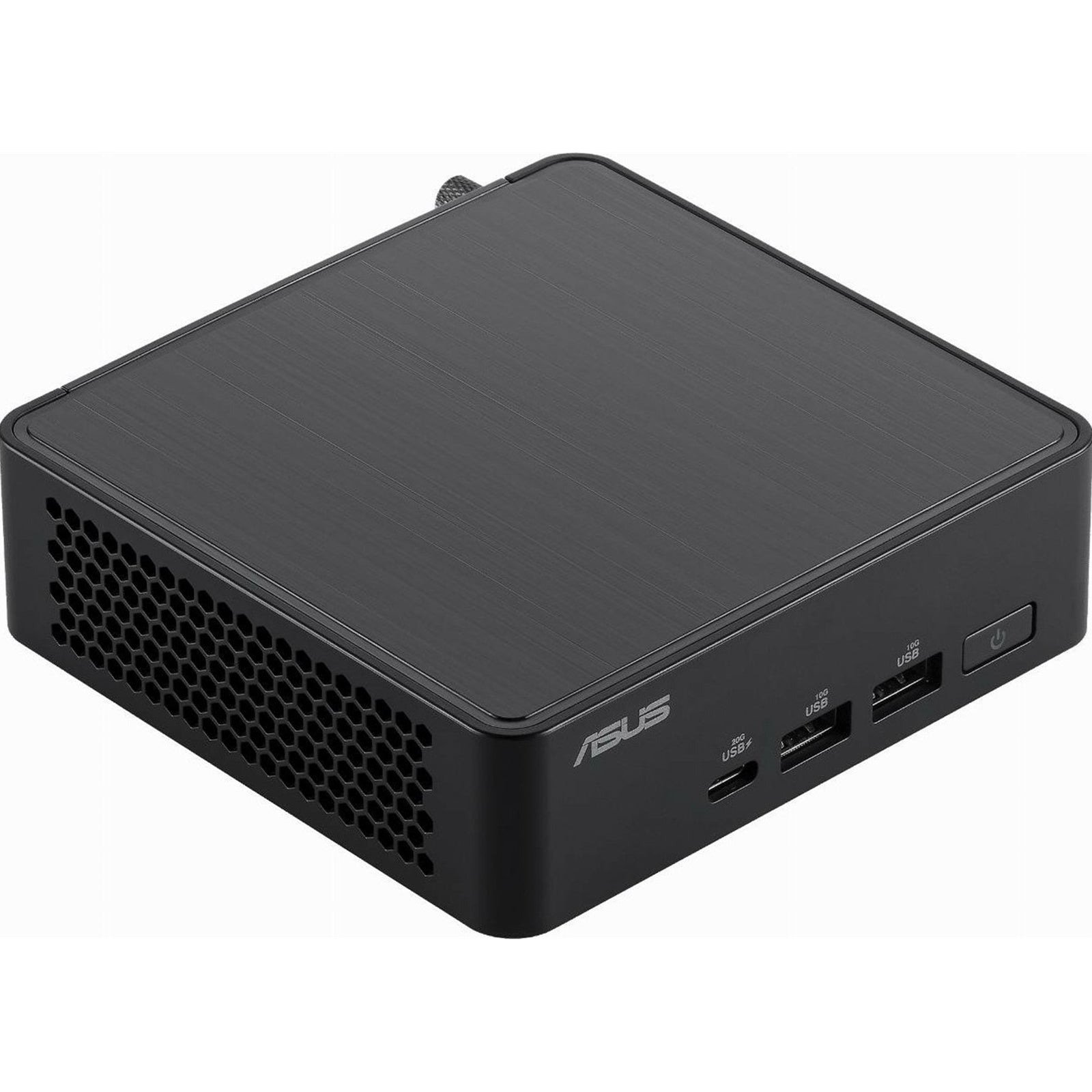

Front I/O
1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A

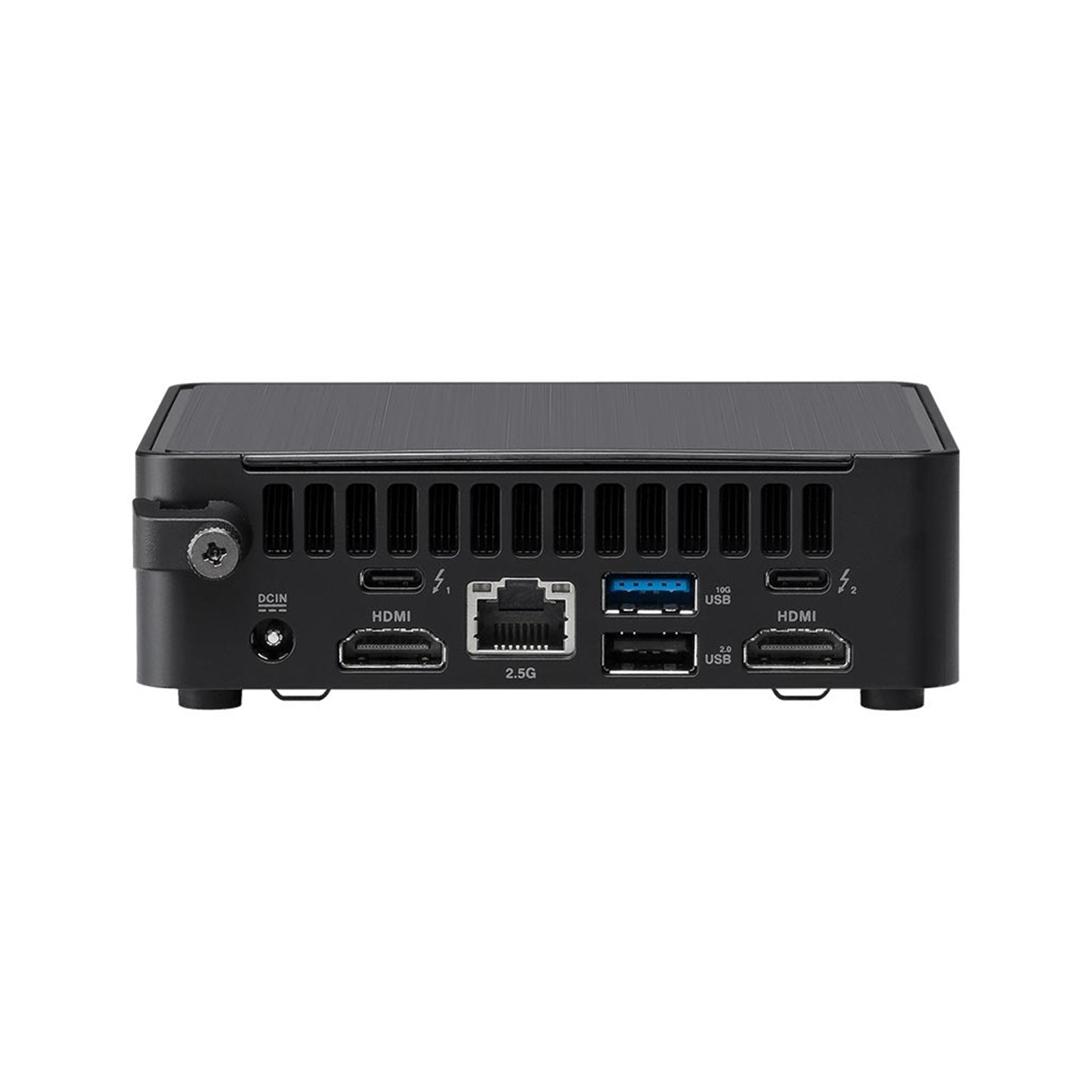

Rear I/O
2 x HDMI 2.1
2 x Thunderbolt™ 4 (DisplayPort support)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
1 x RJ-45 2.5G LAN
1 x DC-in

POWER

Power Adapter
External AC Adapter (~120W, region dependent)

PHYSICAL

Dimensions (W x D x H)
117 x 112 x 37 mm

Weight
Approx. 480g

FEATURES

VESA Mount Support
Yes

Security
Kensington Lock Slot

Cooling
Active Cooling System

PACKAGE CONTENTS

Included Accessories
AC Adapter
Power Cord
VESA Mount Bracket & Screws
Quick Start Guide
Warranty Card
